Electrical Steam Generator
 Capacity: |
9kw-7000kw 13kg-10000kg |
 Power: |
5hp-600hp |
 Temperature: |
60°C-350°C |
 Materials: |
Carbon Steel, Stainless Steel (Optional) |
| Usage: |
Washing ironing, Food, Biotechnology, Packaging, Pharmaceutical, Chemical, Coating, Cooking, Concrete Curing, Sauna, Beauty Club. |
Yuanda Products:steam boiler, steam generator, hot water heater boiler, thermal oil boiler, hot air furnace
Introduction

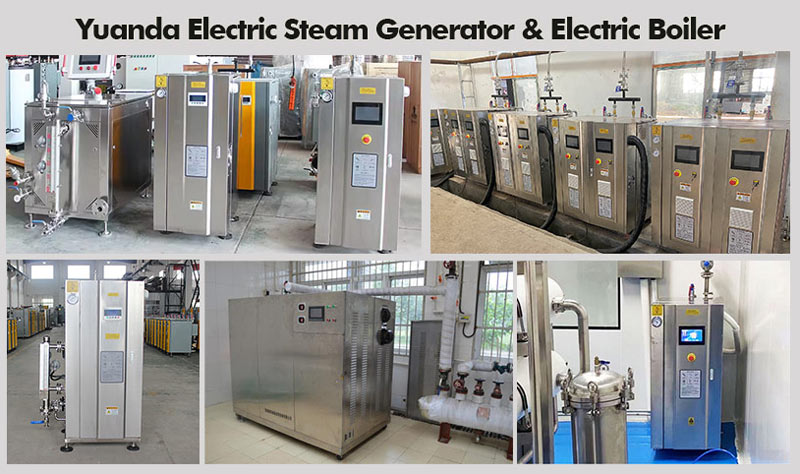

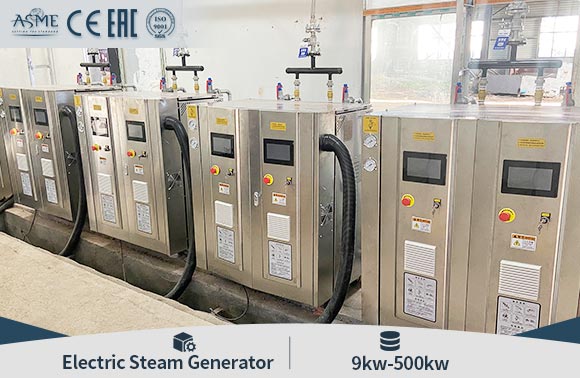

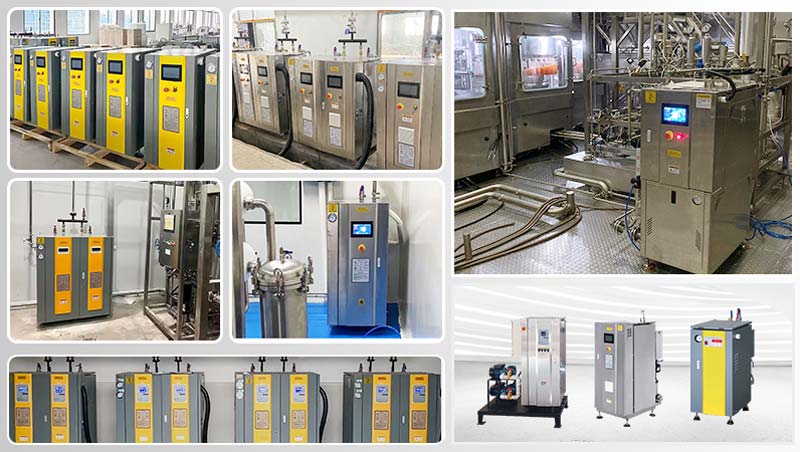

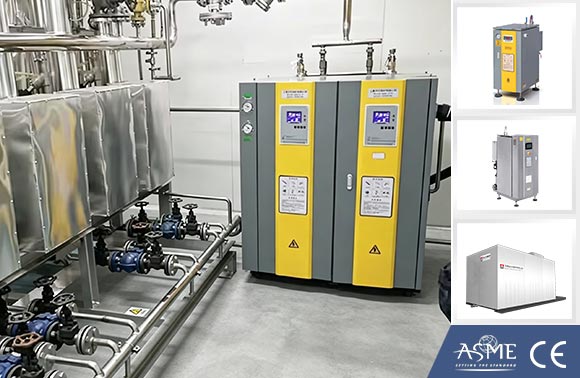

Electric Steam Generator

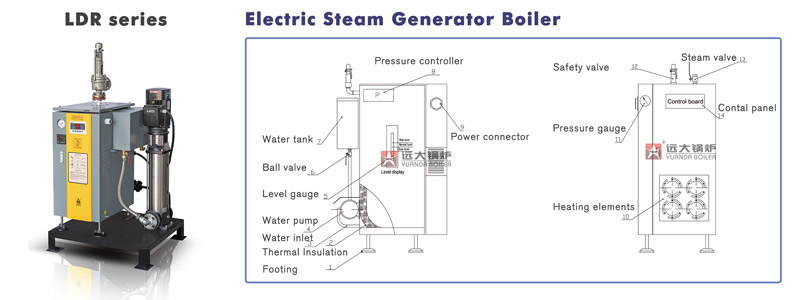

LDR series vertical electric steam generator, small steam capacity generating, design with high quality materials and automatic running control system, work no pollution, high efficiency help saving cost.

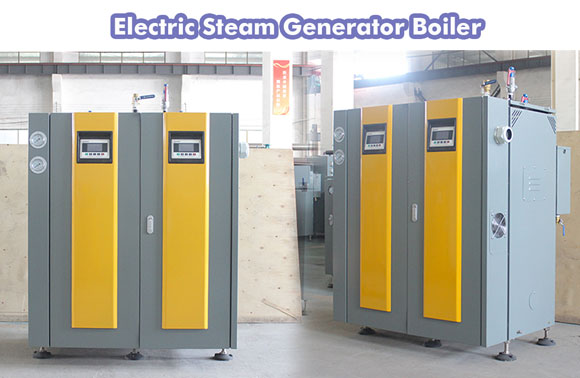

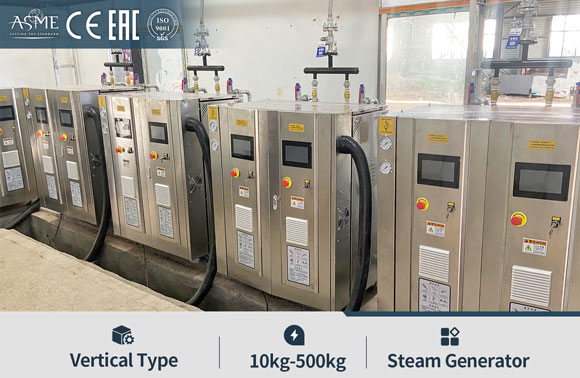

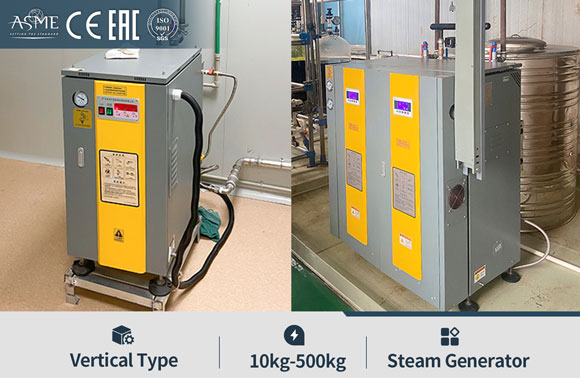

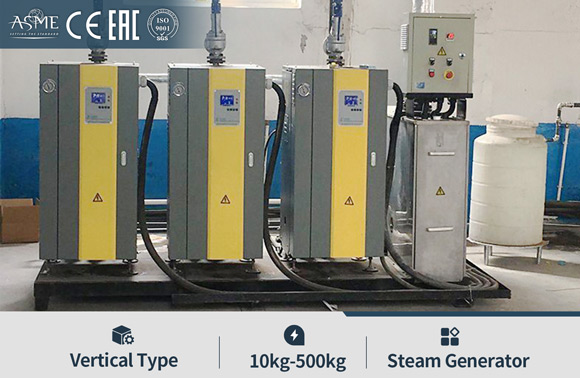

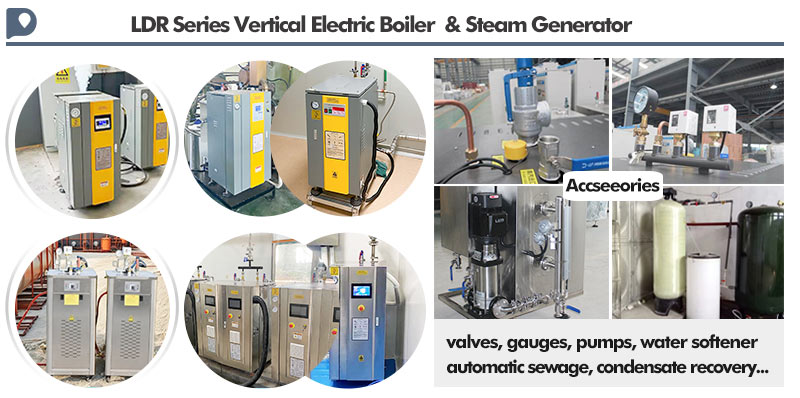

> Vertical Steam Generator (Electric Boiler)

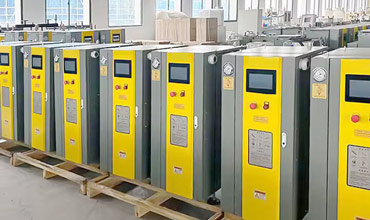

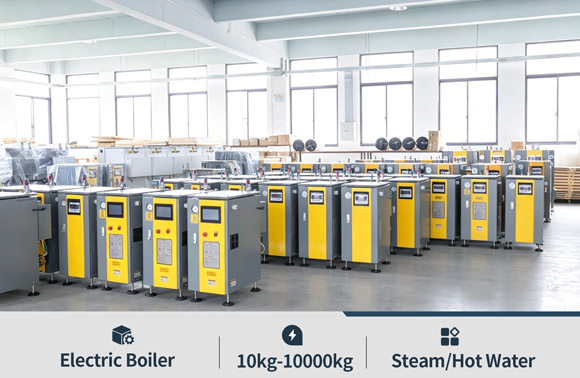

Hot selling electric steam generator boiler, vertical type in 13kg/hour 17kg/hour 25kg/hour 35kg/hour 50kg/hour 65kg/hour 75kg/hour 85kg/hour 100kg/hour 150kg/hour 200kg/hour 300kg/hour 400kg/hour.
> Features & Advantages
✅ Environmentally Friendly & high efficiency
Nearly 100% thermal efficiency, quiet, clean, more in line with the requirements of environmental protection, will not emit NOx (nitrogen oxides) to the atmosphere.
✅ Easy to Install and Use Simply
Before leaving factory, products should pass strict debugging. Quick Install & Quick Start & Automatic Operate.
✅ Multiple Safety Interlock Protection
Installed with overpressure protection, low water level protection, leakage protection, ensure the operation 100% safety.
✅ Use High-quality Components
All pipes and instruments are connected by using stainless pipes or copper pipes, safe and reliable with luxurious configuration.
✅ High Quality Electricity Heat Tube
Electric heating pipe use stainless steel pipe with high-quality thick wall of 316L, has a longer life span service.

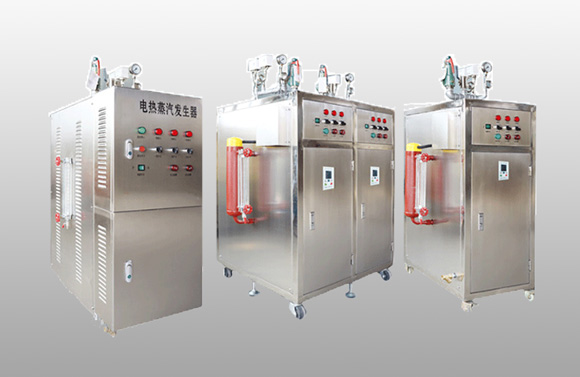

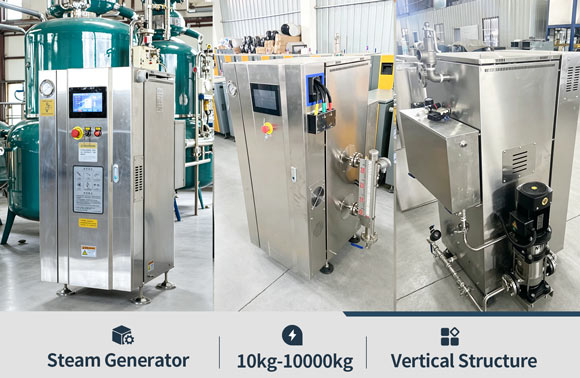

> Stainless Steel Electric Steam Generator
Steam Generator Features

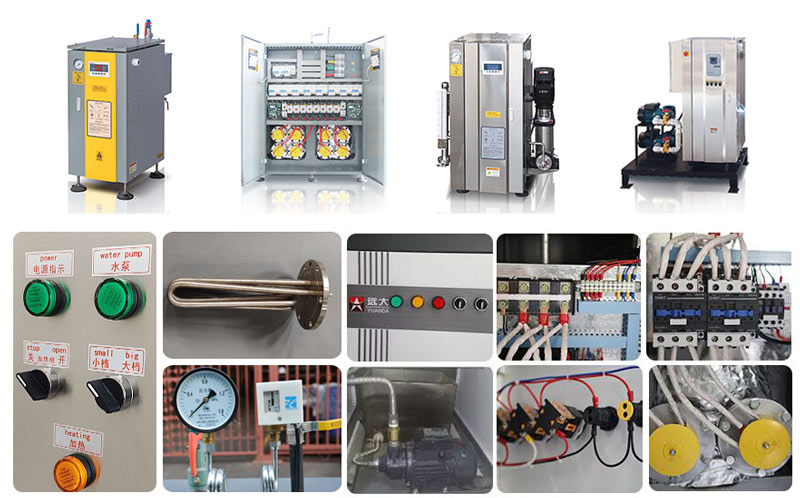

Equipped with Water Softener
External water softener to remove hardness from feed water, preventing scale formation and ensuring longer life of heating elements and the boiler body.
Stainless Steel Water Pump
Corrosion-resistant stainless steel water pump for stable water supply, high durability, and smooth operation even under continuous working conditions.

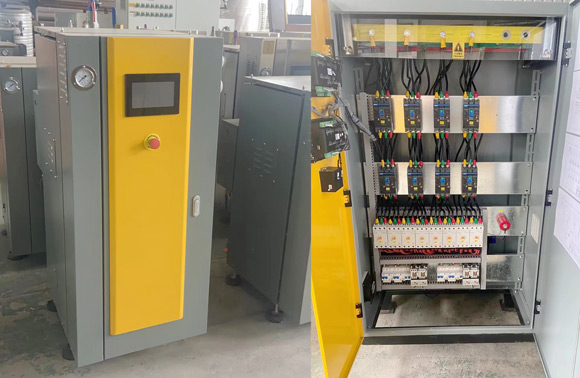

High-Quality Electric Heating Tubes
Fitted with industrial-grade electric heating elements made from stainless steel material, high efficiency, and long service lifespan.

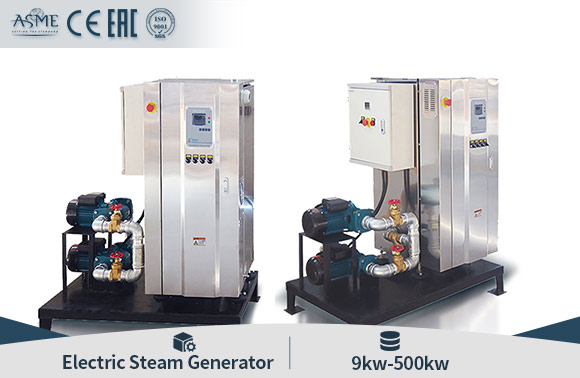

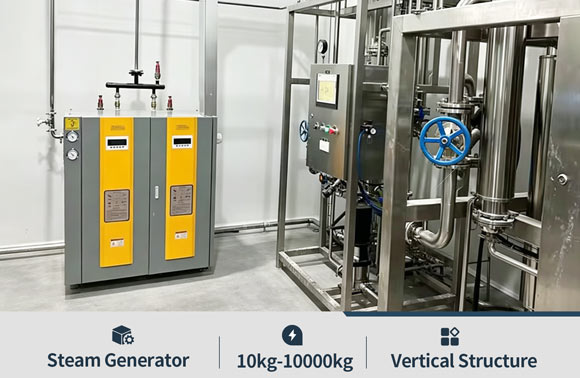

Customizable Portable Type
Can be designed as a portable steam generator, integrating all accessories including water tank, pump, softener, and control system on one frame — making it easy to move, install, and operate.Technical Parameter
| Model | Types | Thermal capacity (kg/h) | Thermal capapcity (kw) | Working pressure | Steam temperature | Thermal efficiency | Dimension (mm) | Weight (kg) |
| LDR0.013 | Vertical | 13 | 9 |
0.3Mpa-1.5Mpa 3bar-15bar (Customized design) |
130ºC-194ºC (Customized design) |
98%-99.5% | 650*390*750 | 70 |
| LDR0.017 | 17 | 12 | 650*390*750 | 75 | ||||
| LDR0.025 | 25 | 18 | 750*450*1050 | 90 | ||||
| LDR0.035 | 35 | 24 | 750*520*1050 | 95 | ||||
| LDR0.05 | 50 | 36 | 750*580*1150 | 101 | ||||
| LDR0.065 | 65 | 48 | 800*580*1200 | 115 | ||||
| LDR0.075 | 75 | 54 | 800*580*1300 | 140 | ||||
| LDR0.085 | 85 | 60 | 800*600*1300 | 145 | ||||
| LDR0.1 | 100 | 72 | 860*650*1390 | 172 | ||||
| LDR0.11 | 110 | 80 | 860*650*1390 | 185 | ||||
| LDR0.125 | 125 | 90 | 860*650*1430 | 190 | ||||
| LDR0.15 | 150 | 108 | 920*760*1600 | 245 | ||||
| LDR0.18 | 180 | 126 | 920*760*1600 | 260 | ||||
| LDR0.2 | 200 | 144 | 1130*750*1780 | 450 | ||||
| LDR0.25 | 250 | 180 | 950*900*1830 | 650 | ||||
| LDR0.3 | 300 | 216 | 1320*1040*1920 | 760 | ||||
| LDR0.4 | 400 | 288 | 1380*1040*2070 | 890 | ||||
| LDR0.5 | 500 | 360 | 1020*890*2350 | 1020 | ||||

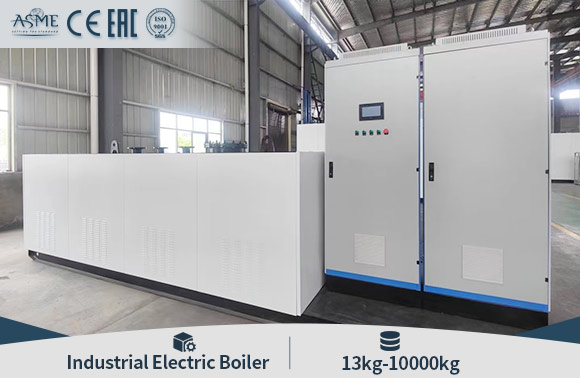

| WDR0.5 | Horizontal | 500 | 360 | 1755*1180*1510 | 1400 | |||
| WDR1.0 | 1000 | 700 | 2530*1380*1480 | 1730 | ||||
| WDR2 | 2000 | 1400 | 2530*2000*2080 | 2730 | ||||
| WDR3 | 3000 | 2100 | 2630*2210*2160 | 3420 | ||||
| WDR4 | 4000 | 2800 | 3680*2360*2380 | 4320 | ||||
| WDR5 | 5000 | 3500 | 3980*2580*2560 | 5130 | ||||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
Steam Generator & Accessories
Boiler Solution
Customized Power Consumption Analysis
Estimate electricity consumption based on boiler capacity, operating hours, load demand, and local electricity rates to help you evaluate operating costs.
Boiler Capacity & Heating Requirements
Customize boiler capacity, steam output, pressure, or hot water temperature according to your production process and heating needs.
Customized Boiler Solutions for Your Application
Every industrial process has different heating requirements. Selecting the right boiler involves more than choosing a capacity.

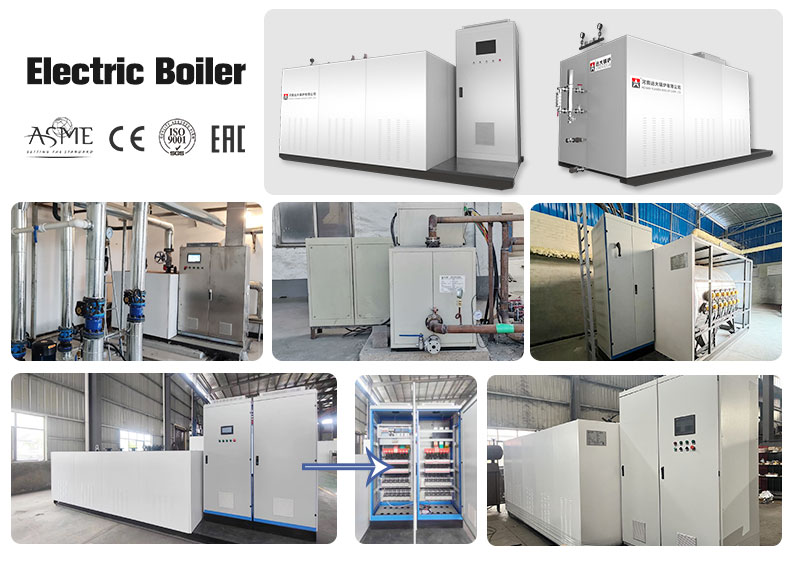

Complete Electric Boiler System
Provide a suitable configuration with water treatment, pumps, control systems, and other auxiliary equipment for reliable and efficient operation.
Why Choose us
Complete Boiler Solutions – Customized boiler systems based on your required capacity, fuel type, working pressure, and application.
International Certifications – Manufacturing capabilities supported by ASME, ISO 9001, CE PED, EAC, DOSH, and CRN certifications, as applicable to the specific model and market.

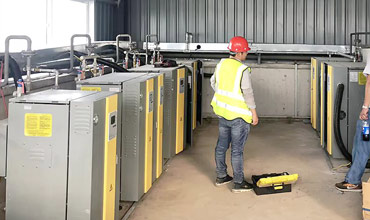

Global Project Experience – Boiler equipment supplied to over 135 countries and regions, with installation and commissioning services completed in more than 60 countries.
Direct Manufacturer Support – Professional technical assistance from project consultation and equipment selection to installation and after-sales service.

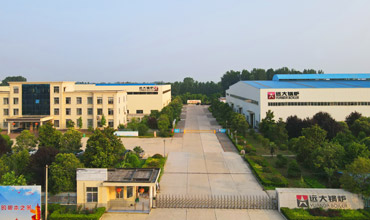

Henan Yuanda Boiler Corp Ltd
We are a fully integrated manufacturer specializing in the design, engineering, manufacturing, installation, and after-sales service of industrial boilers and incinerators. Our products are available with internationally recognized certifications, including ASME, CE PED, ISO 9001, EAC, DOSH, and CRN.
With nearly 70 years of manufacturing experience and more than 20 years of export expertise, we supplied industrial heating equipment to over 135 countries and regions across Asia, Europe, Africa, North America, South America, and Oceania.
