Electric Hot Water Boiler
 Heat Capacity: |
60kw-7000kw |
 Temperature: |
60°C-350°C |
 Types: |
Vertical, Horizontal |
 Usage: |
Heat supplying, center heating, hospital, school, greenhouse, hotel, restaurant, cooking, food processing, poultry, buildings, factory use... |
| Certificates: |
ISO, CE, ASME, DOSH, EAC, CRN |
Yuanda Products:steam boiler, steam generator, hot water heater boiler, thermal oil boiler, hot air furnace
Introduction
> Electric Hot Water Boiler
Certified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, ensuring high quality and compliance with international standards.

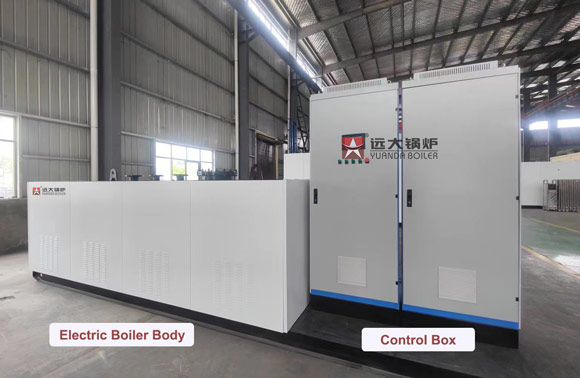

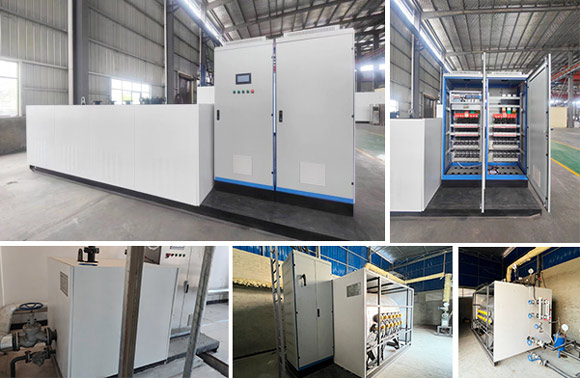

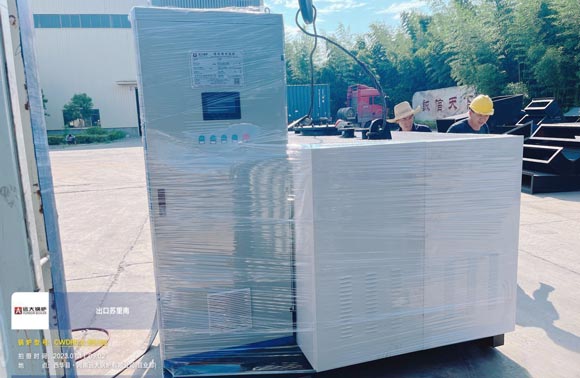

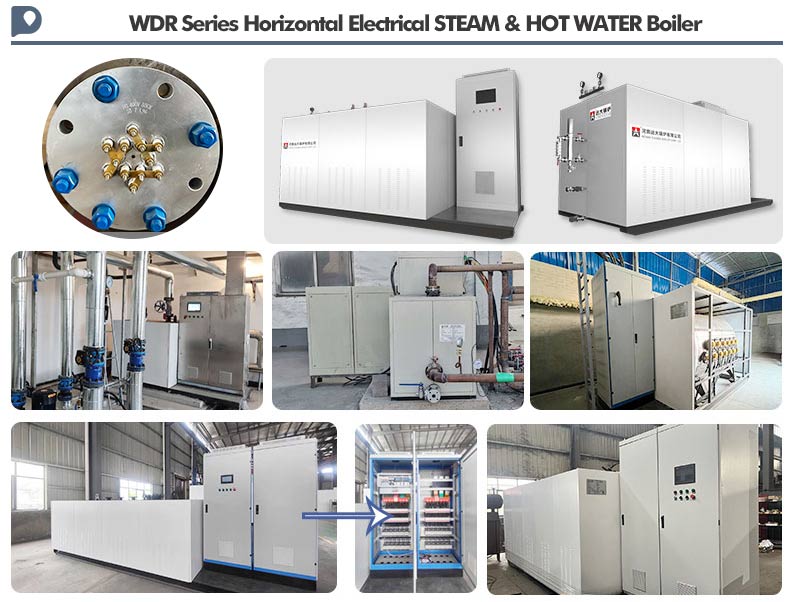

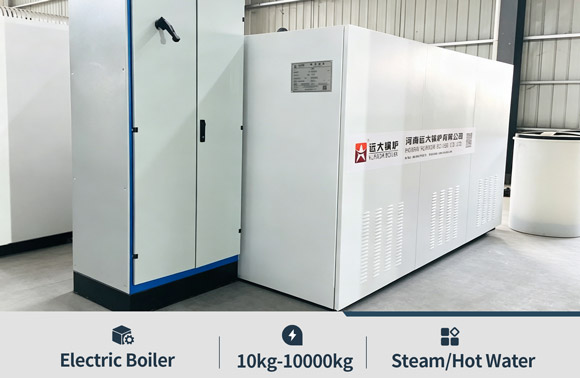

1. Electric Boiler in Horizontal
WDR type horizontal electric boiler. Popular use 350kw 0.7mw1.4mw 2.1mw 2.8mw 3.5mw electric boilers. Boiler inner consist of stainless steel heating tube, each heating tube is connected by a separate small flange. Thermal efficiency is nearly 98%

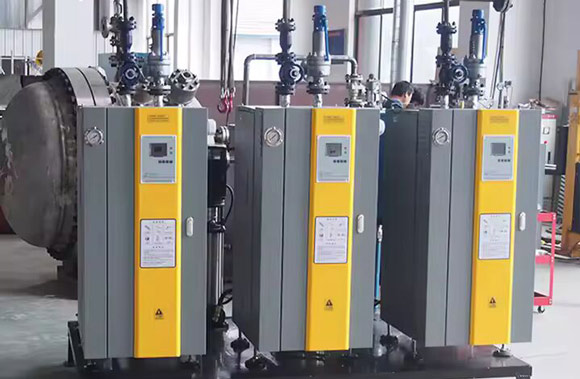

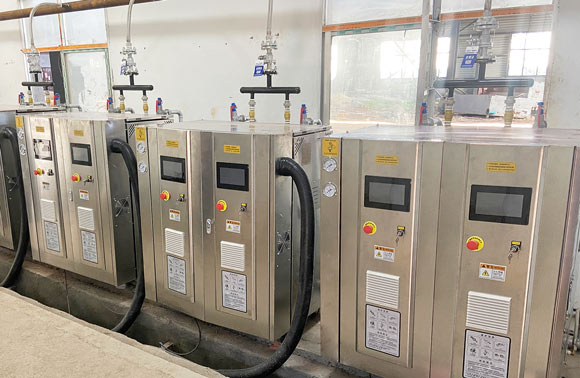

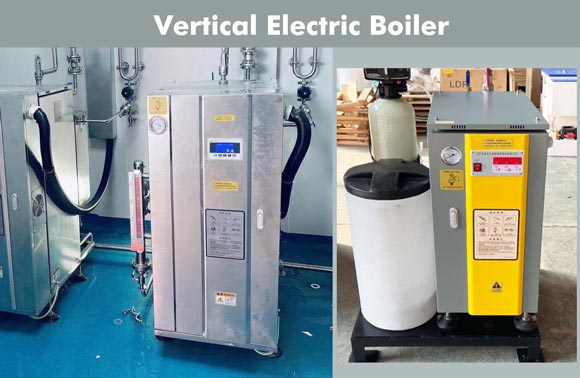

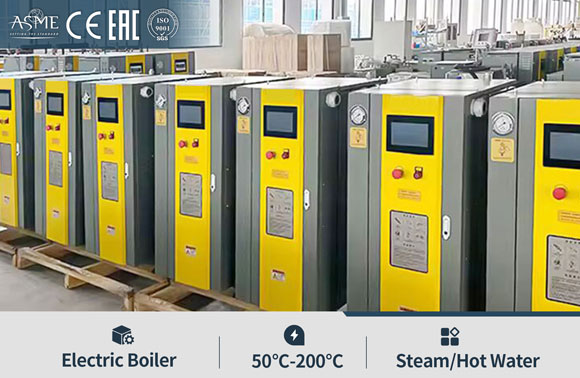

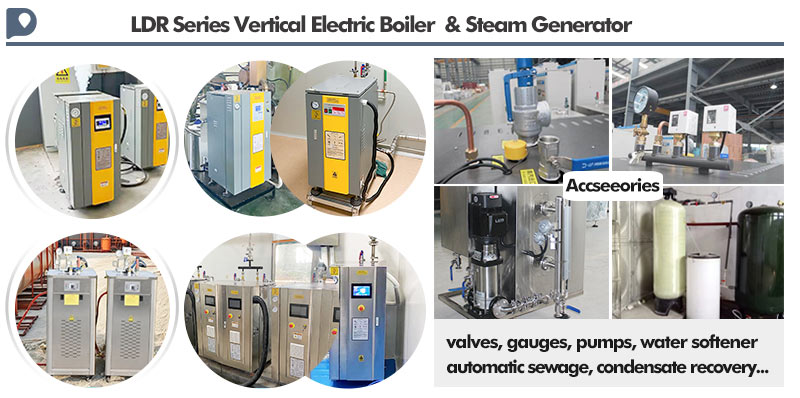

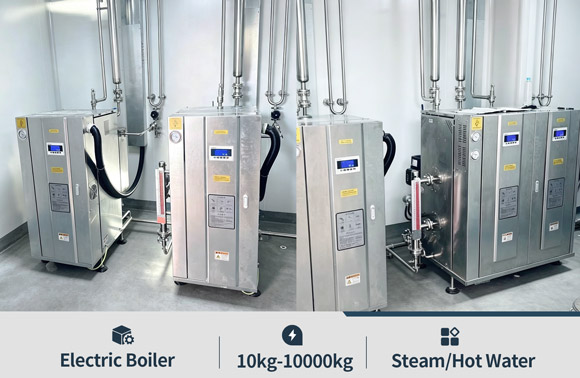

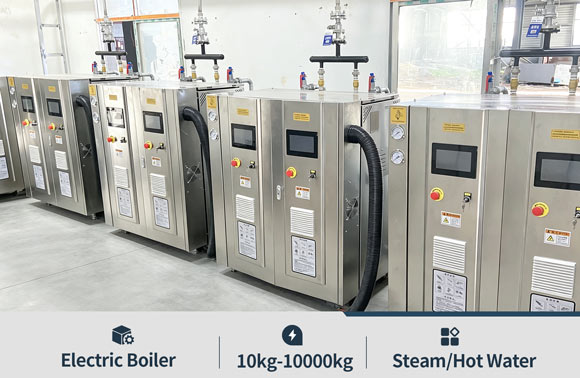

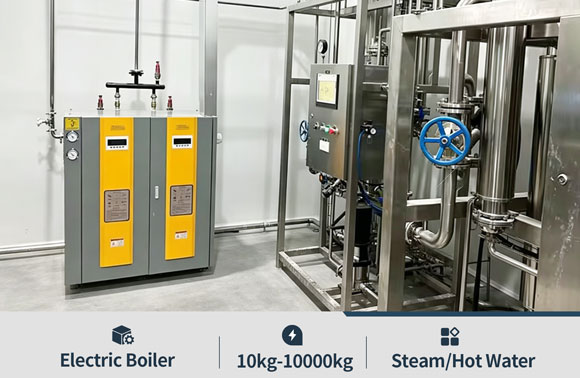

2. Electric Boiler in Vertical
LDR series electric water heater boiler. Popular with its small thermal capacity in 13kw-500kw. Small size helps saving space, high efficiency helps saving energy, simple structure make it easier to install & operate, portable to move by bottom wheels.
> Advantages of Electric boiler
1. Stainless steel electric heating tube, simple structure, high mechanical strength, safety & reliability, easy replacement.
2. Quick start-up, good steam quality, strong operating load, fast to adjust and simple to operate, running automatically.
3. Energy saving, automatic to adjusts heating groups according to the temperature difference and load changes.
5. Intelligent controller & micro display screen, display work status, clear at a glance, simple to operate, convenient use.
6. Boiler insulation use 12cm aluminum silicate board, ensures the long-term energy-saving operation, provent heat-loss.
7. Protective function, 100% safety, water leakage alarm, electricity leakage protect, overheated protect, etc.
> Electric Boiler Consumption Cost
Take example, electric water heater 350kw/hr, it will consum 370kw electricity roughly.
Take example, electric water heater 700kw/hr, it will consum 750kw electricity roughly.
Take example, electric water heater 1.4mw/hr, it will consum 1500kw electricity roughly.
...and so on...You could know how much for boiler electricity consumption cost.
Quick Consult Contact service@yuanda-boiler.com
> Our Products & Global Sales
1. Steam Boiler, Hot Water Heater Boiler, Thermal Oil Heater Boiler, Steam Generator, Steam Turbine Boiler.
2. Gas Boiler, Lpg Boiler, Diesel Boiler, Heavy Oil Boiler, Dual Fuel Boiler, Waste Heat Exhaust Gas Boiler.
3. Electric Boiler, Electric Steam Generator, Electric Hot Water Boiler, Electric Thermal Oil Heater.
4. Coal Boiler, Wood Boiler, Biomass Boiler, Charcoal Boiler, Briquette Boiler, Pellets Boiler, Solid waste Boiler
5. Husk Boiler, Palm Kernel Shells Boiler, Coconuts Shells Boiler, Agro Waste Boiler, Thermal Heat & Power Boiler
Electric Boiler Features

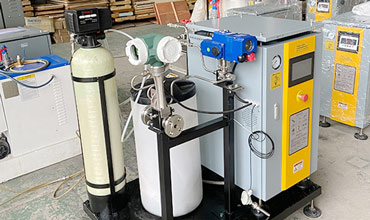

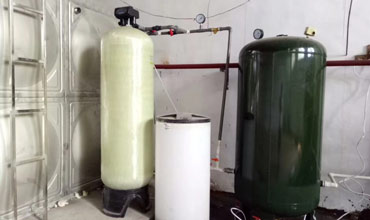

Equipped with Water Softener
External water softener to remove hardness from feed water, preventing scale formation and ensuring longer life of heating elements and the boiler body.

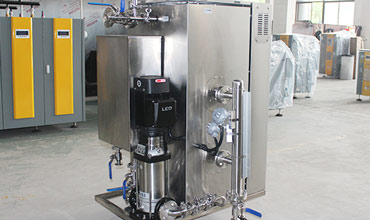

Stainless Steel Water Pump
Corrosion-resistant stainless steel water pump for stable water supply, high durability, and smooth operation even under continuous working conditions.

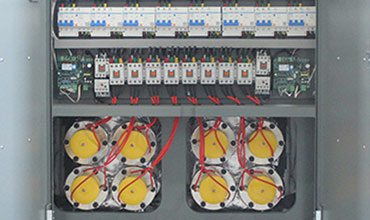

High-Quality Electric Heating Tubes
Fitted with industrial-grade electric heating elements made from stainless steel material, high efficiency, and long service lifespan.
Customizable Portable Type
Can be designed as a portable steam generator, integrating all accessories including water tank, pump, softener, and control system on one frame — making it easy to move, install, and operate.Technical Parameter
| Model | Types | Thermal capacity (kg/h) | Thermal capapcity (kw) | Working pressure | Steam temperature | Thermal efficiency | Dimension (mm) | Weight (kg) |
| LDR0.013 | Vertical | 13 | 9 |
0.3Mpa-1.5Mpa 3bar-15bar (Customized design) |
130ºC-194ºC (Customized design) |
98%-99.5% | 650*390*750 | 70 |
| LDR0.017 | 17 | 12 | 650*390*750 | 75 | ||||
| LDR0.025 | 25 | 18 | 750*450*1050 | 90 | ||||
| LDR0.035 | 35 | 24 | 750*520*1050 | 95 | ||||
| LDR0.05 | 50 | 36 | 750*580*1150 | 101 | ||||
| LDR0.065 | 65 | 48 | 800*580*1200 | 115 | ||||
| LDR0.075 | 75 | 54 | 800*580*1300 | 140 | ||||
| LDR0.085 | 85 | 60 | 800*600*1300 | 145 | ||||
| LDR0.1 | 100 | 72 | 860*650*1390 | 172 | ||||
| LDR0.11 | 110 | 80 | 860*650*1390 | 185 | ||||
| LDR0.125 | 125 | 90 | 860*650*1430 | 190 | ||||
| LDR0.15 | 150 | 108 | 920*760*1600 | 245 | ||||
| LDR0.18 | 180 | 126 | 920*760*1600 | 260 | ||||
| LDR0.2 | 200 | 144 | 1130*750*1780 | 450 | ||||
| LDR0.25 | 250 | 180 | 950*900*1830 | 650 | ||||
| LDR0.3 | 300 | 216 | 1320*1040*1920 | 760 | ||||
| LDR0.4 | 400 | 288 | 1380*1040*2070 | 890 | ||||
| LDR0.5 | 500 | 360 | 1020*890*2350 | 1020 | ||||
| WDR0.5 | Horizontal | 500 | 360 | 1755*1180*1510 | 1400 | |||
| WDR1.0 | 1000 | 700 | 2530*1380*1480 | 1730 | ||||
| WDR2 | 2000 | 1400 | 2530*2000*2080 | 2730 | ||||
| WDR3 | 3000 | 2100 | 2630*2210*2160 | 3420 | ||||
| WDR4 | 4000 | 2800 | 3680*2360*2380 | 4320 | ||||
| WDR5 | 5000 | 3500 | 3980*2580*2560 | 5130 | ||||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
Supply Boiler & Accessories
Boiler Solution
Customized Power Consumption Analysis
Estimate electricity consumption based on boiler capacity, operating hours, load demand, and local electricity rates to help you evaluate operating costs.
Boiler Capacity & Heating Requirements
Customize boiler capacity, steam output, pressure, or hot water temperature according to your production process and heating needs.
Customized Boiler Solutions for Your Application
Every industrial process has different heating requirements. Selecting the right boiler involves more than choosing a capacity.
Complete Electric Boiler System
Provide a suitable configuration with water treatment, pumps, control systems, and other auxiliary equipment for reliable and efficient operation.
Why Choose us
Complete Boiler Solutions – Customized boiler systems based on your required capacity, fuel type, working pressure, and application.
International Certifications – Manufacturing capabilities supported by ASME, ISO 9001, CE PED, EAC, DOSH, and CRN certifications, as applicable to the specific model and market.
Global Project Experience – Boiler equipment supplied to over 135 countries and regions, with installation and commissioning services completed in more than 60 countries.
Direct Manufacturer Support – Professional technical assistance from project consultation and equipment selection to installation and after-sales service.
