WNS Series Fire Tube Boiler
 Capacity: |
0.1t/h-50t/h 70kw-35000kw |
 Power: |
10hp-3000hp |
 Fuel: |
Nature gas, lpg, hydrogen, propane, biogas, diesel, hfo, waste oil |
 Heat Temp.: |
60°C-450°C |
| Certificates: |
ISO, CE, ASME, DOSH, EAC, CRN |
Features:Horizontal structure, wet back design, three pass, corrugated furnace, threaded fire tube. Available to design in skid mounted/containerised type.
Introduction

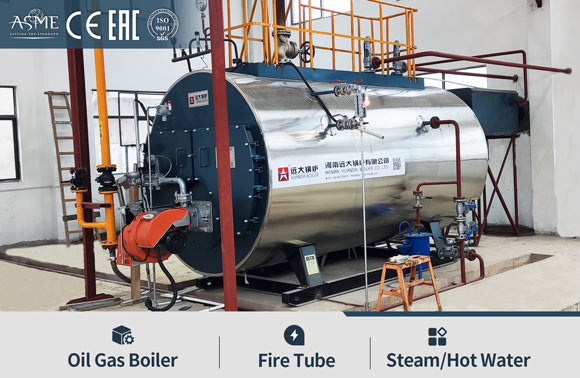

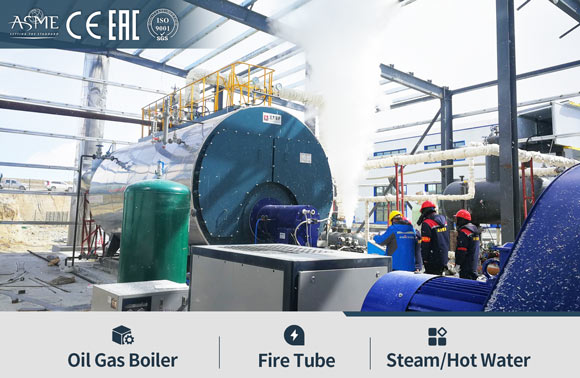

WNS Series Gas Oil Fire Tube Boiler

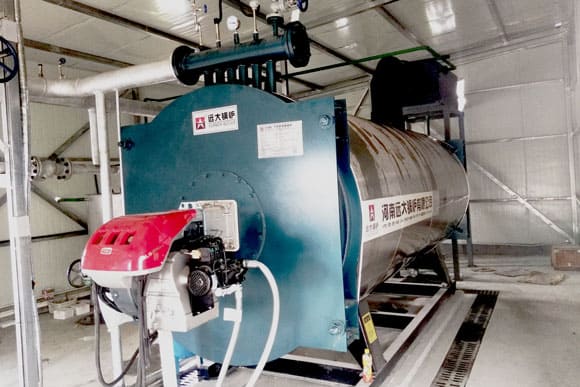

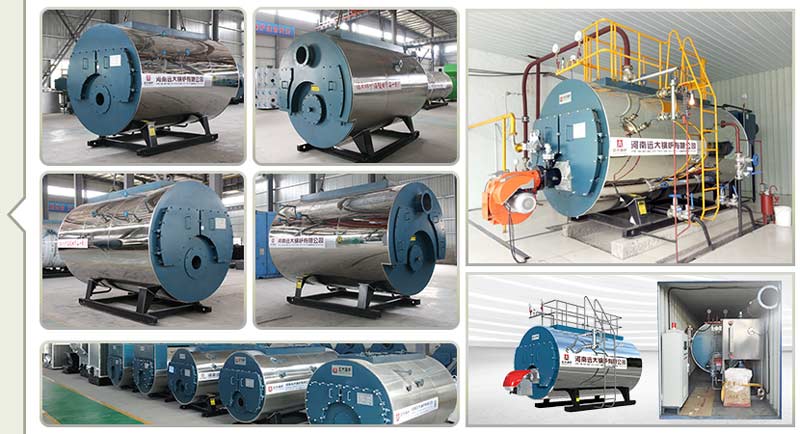

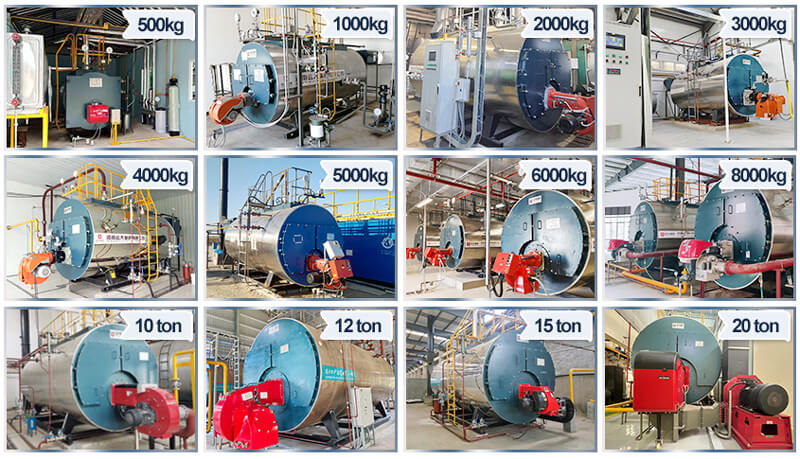

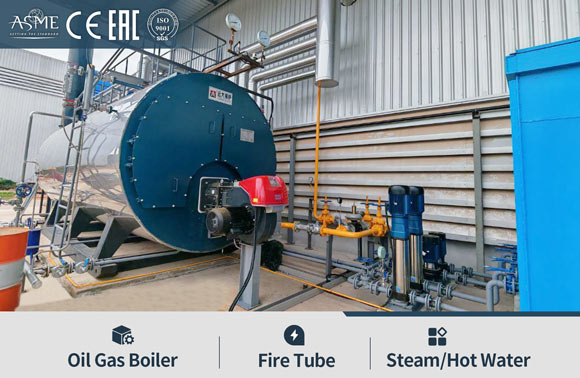

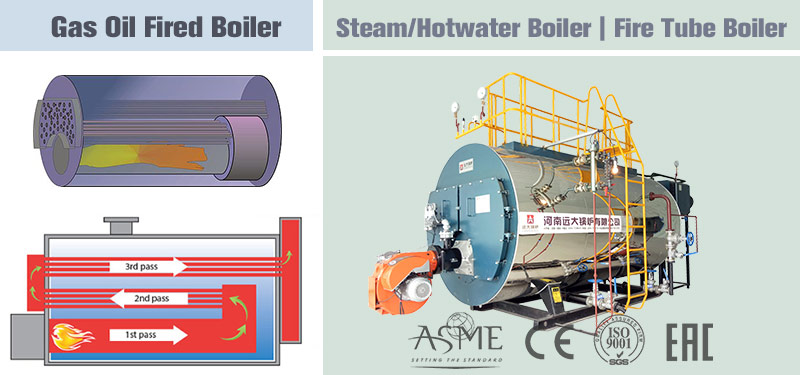

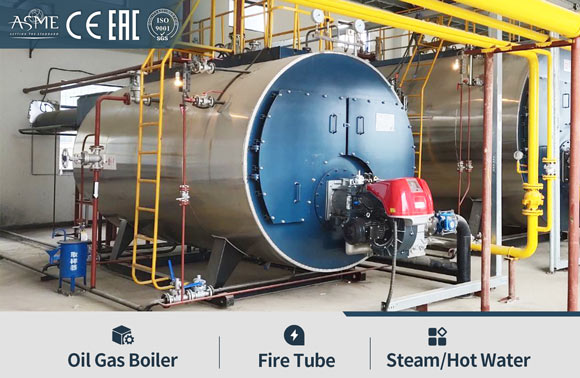

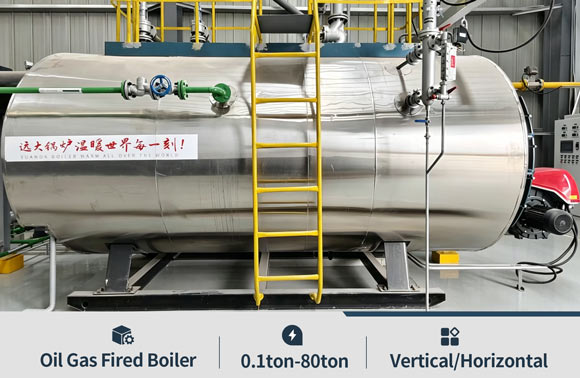

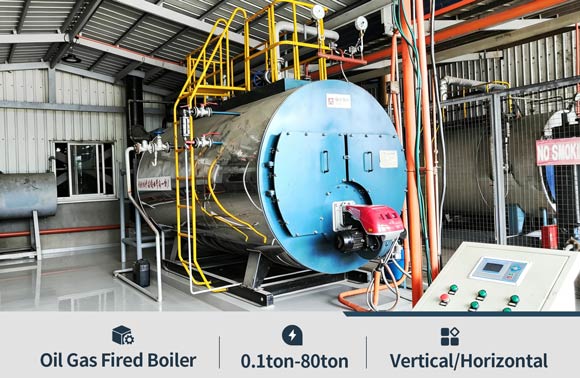

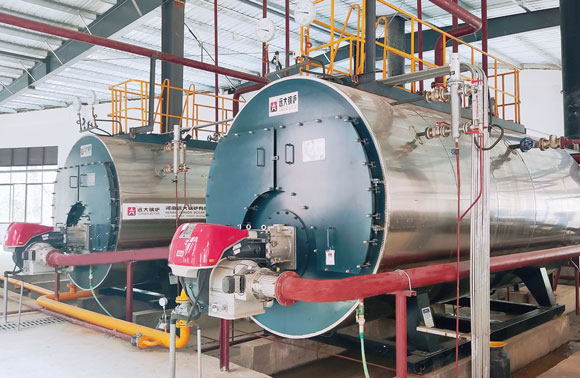

WNS fire tube boiler is a horizontal, internal combustion, three-pass boiler designed to provide a reliable supply of steam for industrial applications. It uses a wet-back with hot flue gases passing through the furnace and fire tubes to transfer heat to the surrounding water.
It is widely used in food processing, textile manufacturing, pharmaceutical production, paper mills, chemical plants, and other industries.
Certified by ASME, CE, ISO, EAC, DOSH, TUV, BV, ensuring high quality and compliance with international standards.
Boiler Features & Avantages

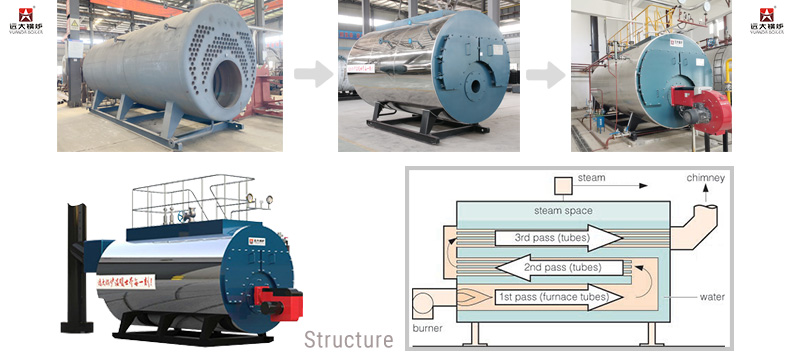

Wet-Back, Corrugated furnace, Three-Pass Design: Optimized heat transfer structure for efficient heat utilization and reliable steam production.
High Efficiency: Reduces fuel consumption and helps lower operating costs.
Fully Automatic Operation: Automatic combustion control for convenient operation and stable performance.
Low Emissions: Optimized combustion helps reduce pollutant emissions.

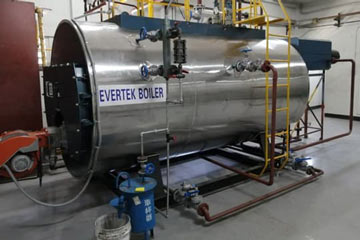

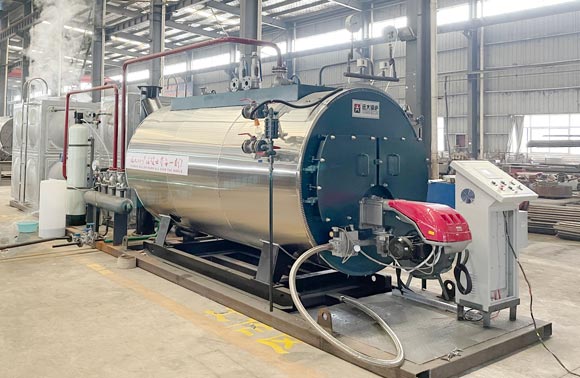

Portable Skid-Mounted Design: Integrated equipment simplifies transportation, installation, and commissioning.
Mobile Boiler Option: Flexible mobile configurations allow convenient relocation to different work sites.
Boiler System Configuration

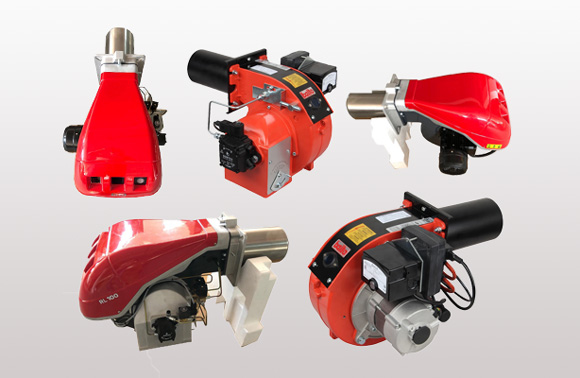

WNS boiler can operate on fuels such as natural gas, diesel, and light fuel oil, depending on the burner configuration. Fuel selection can be based on local availability, operating costs, and emission requirements.

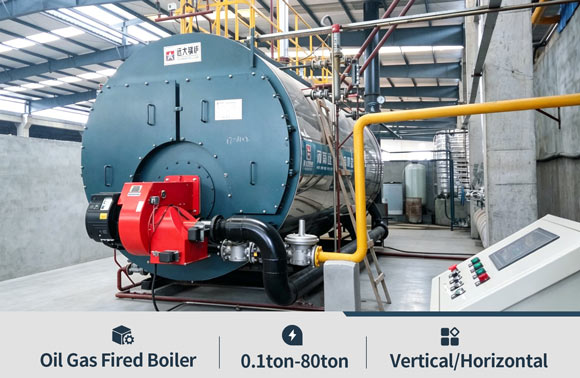

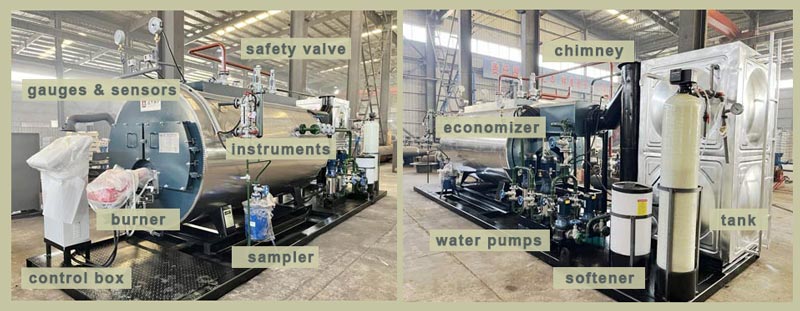

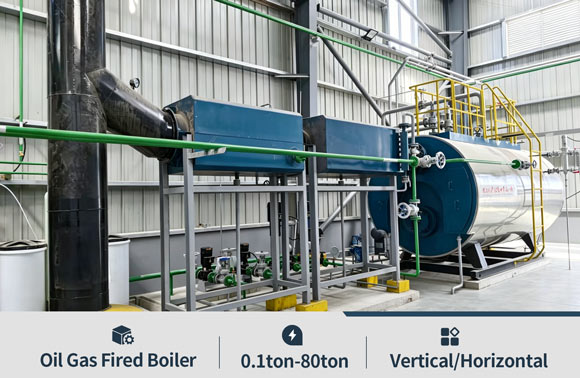

The boiler system can be configured with auxiliary equipment such as a feedwater pump, economizer, water treatment system, steam separator, blowdown system, and chimney according to project requirements.
Boiler Package & Delivery
Our boilers are professionally packaged for safe transportation, with reliable protection against damage and moisture during transit. Packaging and delivery methods are customized to project requirements, ensuring secure shipment, easier on-site handling, and smoother installation.
Customized Boiler Solutions
We provides boiler solutions based on the customer's required steam capacity, working pressure, fuel type, operating conditions, and local standards.
Our engineering team can assist with boiler model selection, auxiliary equipment configuration, fuel consumption estimation, and system layout planning. Installation guidance, commissioning, and technical support can also be arranged according to project requirements.
To recommend a suitable WNS fire tube boiler, please provide your required steam capacity (kg/h or tons/h), working pressure (MPa or bar), fuel type, and application.
Boiler Features
100% Safety
We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves
High Automation Boiler
Intelligient control panel of boiler, it controls the size of the flame of the burner, water level, pressure, temperature and other signals inside the boiler
Energy-Saving Boiler
Three pass boiler, three pass can extend the flue gas distance, enhance heat transfer and increase thermal efficiency. Full heat insulation condenser design
Environmental Friendly
WNS series boiler, it could satisfy all countries' environment NOx emission limit standard. We are on the way to green environment protectionTechnical Parameter
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5-1.0/1.25/1.6-YQ | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1-1.0/1.25/1.6-YQ | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8-1.0/1.25/1.6/2.5-YQ | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10-1.0/1.25/1.6/2.5-YQ | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15-1.0/1.25/1.6/2.5-YQ | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20-1.0/1.25/1.6/2.5-YQ | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
