Electric Thermal Oil Heater
 Product capacity: |
30kw-1400kw |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Electric, Electricity |
 Available industries: |
For crude oil plant, asphalt, bitumen plant, food industry, textile industry, packaging industry, plywood factory, reactor, refinery oil... |
Yuanda Products:#Thermic-Fluid-Heater #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Steam-Boiler #Hot-Water-Boiler #Exhaust-Gas-Boiler
Introduction
Electric Thermal Oil Heater Boiler | Thermic Fluid Heater
The equipment Use electricity heating thermal oil, automatically heating oil up to temperature 200°C-350°C. Widely used in asphalt, bitumen, textile, plywood hot pressing, reactor, food fryer, packaging industry, refinery oil, etc.

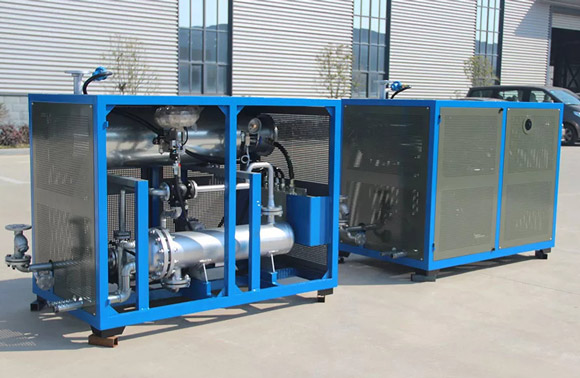

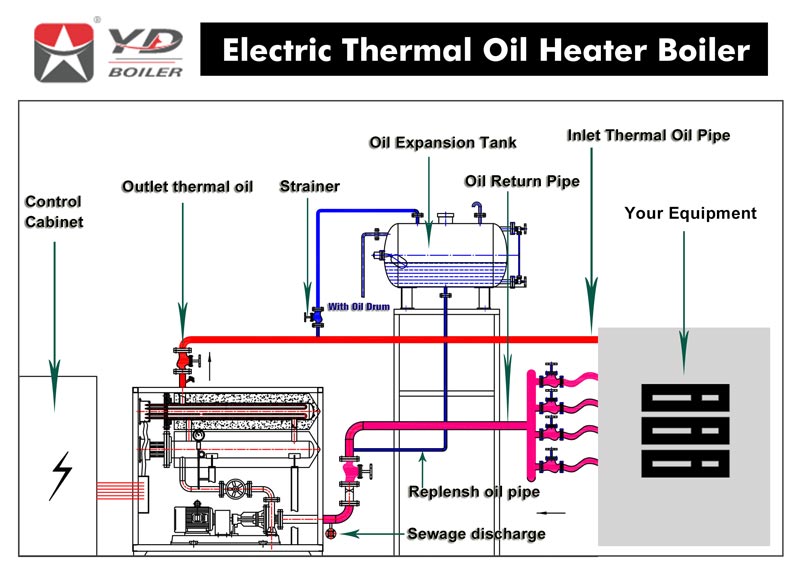

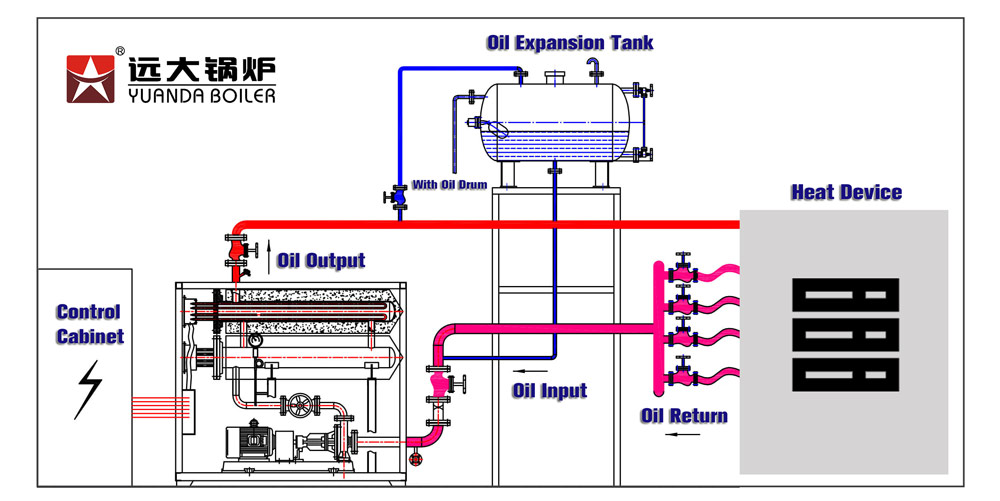

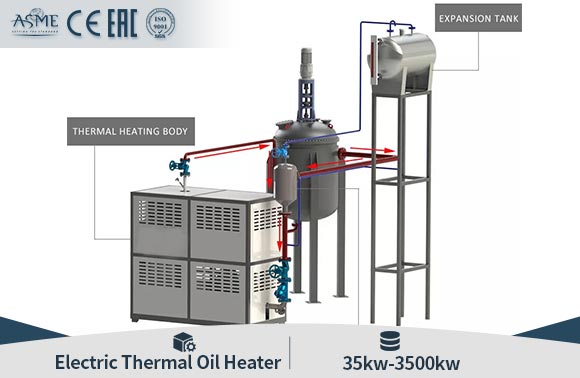

Working Principle: Electricity as energy source, covert electric energy into heat energy through flanged immersion heater. The organic heat fluid (hot oil) as heat transfer medium is circulated in the whole system pushed by oil pump. And then the using-heat equipment takes heat from the hot oil, which returns back to the boiler after heat exchange. So it is an organic heat circulation system.

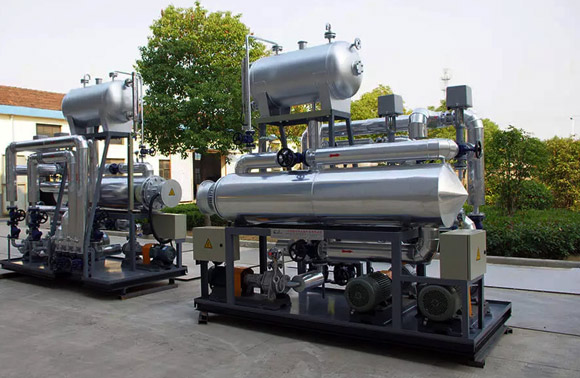

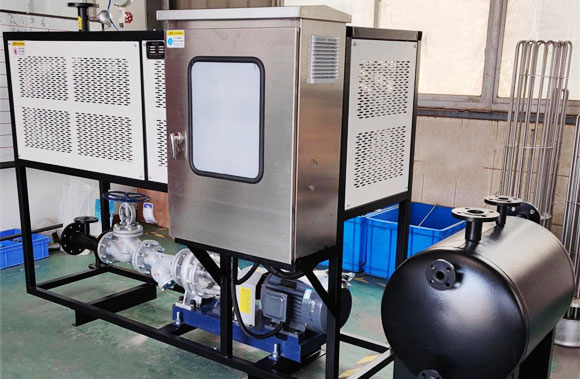

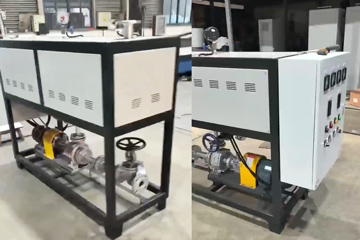

Electric Thermal Oil Heater Consist
Electric heating thermal oil heater consists of the main parts (including electric heater host , high-temperature oil pump and Y-shape filter), expansion tank, control cabinet and piping. All the components of the system must work together in harmony for proper performance.
Advantages of Electrical Thermal Oil Boiler
1.Low working pressure
Liquid phase transport heat energy can reduce working pressure and get high temperature, heat carrier is smaller than the water saturation steam pressure 70 to 80 times, general heating is less than 0.5 Mpa
2.High heating temperature
Electric heating thermal oil heater can reach a temperature of 340°C under the low pressure and the heating temperature automatic control. When the heating temperature is up to 300°C, the working pressure is just one seventieth of the saturated steam pressure.
3.Environmental protection design
Electric heating thermal oil heater is provided with new electrical heating system, using electricity instead of coal, saving cost, protecting environment without pollution.
4.High thermal Efficiency
Electric heating thermal oil heater can reach the efficiency of 95%, and achieve stable & even heating and accurate temperature control.
Other Kinds (Customized Service Support)
-Supply 30k-1400kw electric thermal oil heater, customzied service deisgn for heating system, pls send all requirements to us.
-such as (portable type electric thermal oil heater) (containerised thermal oil heater) (heater with special control system)
Technical Parameter
| Model | Reted capacity | Rated pressure | Oil Volume | Dimension(MM) | Hot Oil Pump | Total Power | Weight | Oil Expansion Tank | |||||
| (KW) | (*104kcal/h) | (Mpa) | (L) | L | W | H | Flow(m³/h) | Lift(M) | Power(Kw) | Kw | Kg | L | |
| YDW10 | 10 | 0.8 | 0.6 | 15 | 1100 | 500 | 1100 | 6 | 27 | 1.5 | 11.5 | 200 | 100 |
| YDW18 | 18 | 1.5 | 0.6 | 23 | 1600 | 500 | 1250 | 6 | 27 | 1.5 | 19.5 | 200 | 130 |
| YDW24 | 24 | 2 | 0.6 | 28 | 1950 | 650 | 1450 | 12.5 | 30 | 3 | 27 | 350 | 150 |
| YDW36 | 36 | 3 | 0.6 | 48 | 1950 | 650 | 1450 | 12.5 | 30 | 3 | 39 | 350 | 200 |
| YDW48 | 48 | 4 | 0.6 | 48 | 1950 | 650 | 1450 | 18 | 40 | 5.5 | 53.5 | 350 | 230 |
| YDW60 | 60 | 5 | 0.6 | 52 | 1950 | 650 | 1450 | 18 | 40 | 5.5 | 65.5 | 350 | 230 |
| YDW70 | 70 | 6 | 0.6 | 60 | 2150 | 700 | 1750 | 30 | 48 | 7.5 | 77.5 | 550 | 280 |
| YDW90 | 90 | 7.5 | 0.6 | 68 | 2150 | 700 | 1750 | 30 | 48 | 7.5 | 97.5 | 550 | 280 |
| YDW120 | 120 | 10 | 0.6 | 105 | 2200 | 700 | 1880 | 30 | 48 | 7.5 | 127.5 | 750 | 300 |
| YDW150 | 150 | 12.5 | 0.6 | 195 | 2200 | 900 | 1880 | 30 | 48 | 7.5 | 157.5 | 750 | 300 |
| YDW180 | 180 | 15 | 0.6 | 230 | 2200 | 1000 | 1880 | 45 | 48 | 11 | 191 | 1200 | 320 |
| YDW240 | 240 | 20 | 0.6 | 260 | 2300 | 1000 | 1950 | 80 | 38 | 15 | 255 | 1200 | 350 |
| YDW300 | 300 | 25 | 0.6 | 358 | 2800 | 1200 | 2000 | 80 | 38 | 15 | 415 | 1750 | 450 |
| YDW500 | 500 | 40 | 0.6 | 510 | 2800 | 1500 | 2000 | 80 | 38 | 15 | 515 | 1850 | 550 |
| YDW700 | 700 | 60 | 0.6 | 638 | 3000 | 1800 | 2150 | 80 | 38 | 15 | 715 | 2200 | 650 |
| … | … | … | … | … | … | … | … | … | … | … | … | … | … |
| YDW1400 | 1400 | 120 | 0.6 | 2100 | 3600 | 2900 | 2150 | 80 | 85 | 37 | 1437 | 6500 | 1200 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||||||

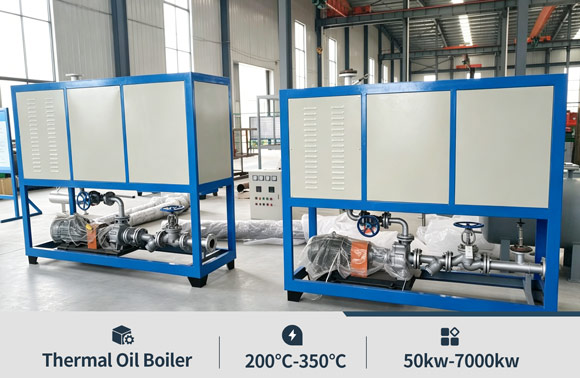

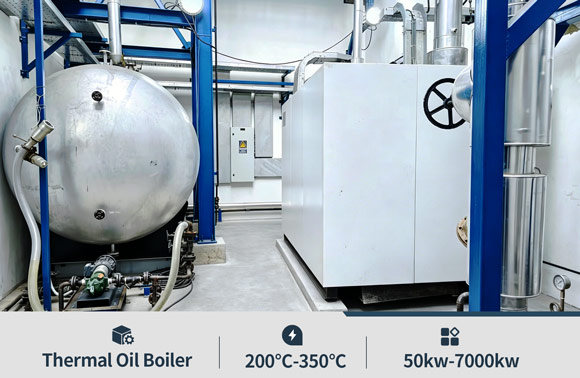

Our Supply Equipment List
Features of Electric Oil Heater

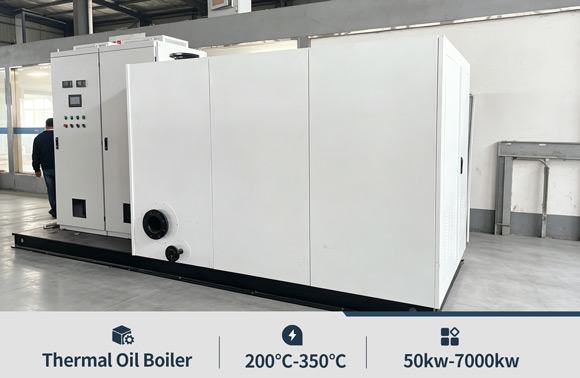

Auto-temperature Control
Rapid heating and cooling, stable performance, high security, with explosion-proof control cabinet

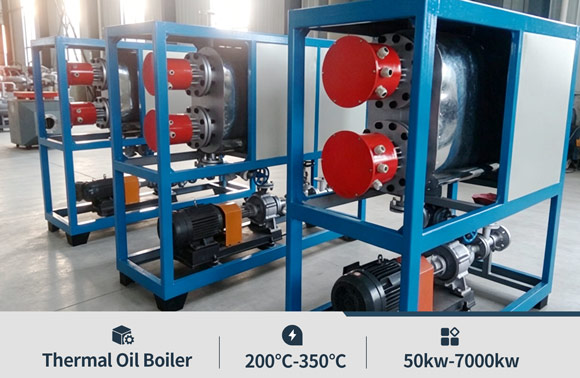

Heating element
No pollution, small volume, long lasting, thermal efficiency up to 95%, Power 2kw- 1000kw optionalFAQ of thermal oil boiler
Question: What is the highest temperature of thermal oil?
Answer: Generally, thermal oil could be heated up to 200-350℃, automatically working under a low pressure.
Question: What is conduction oil/ hot oil / heat transfer fluid ?
Answer: Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.
Question: What's the electricity consumption ?
Answer: Take example, 200kw electric boiler, consum 210kw electricity power per hour.
