Oil Gas Steam Generator Boiler
 Capacity: |
100 kg-20,000 kg |
 Heat: |
60 kw - 14 000 kw |
 Pressure: |
1bar-38bar |
 CertificFuel ates: |
Nature gas, lpg, exhaust gas, diesel, heavy oil, waste oil, dual fuel |
| Certificates: |
ISO, CE, ASME, DOSH, EAC, CRN |
Yuanda Products: steam boiler, steam generator, hot water heater boiler, thermal oil boiler
Introduction

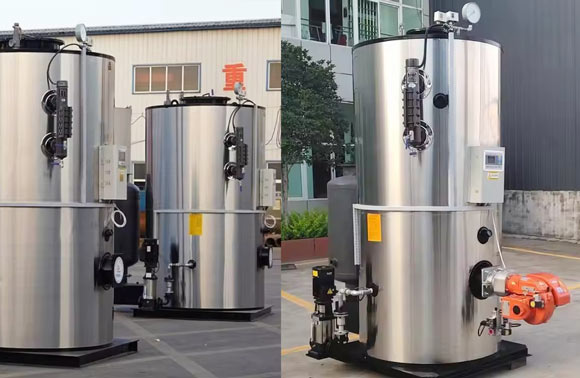

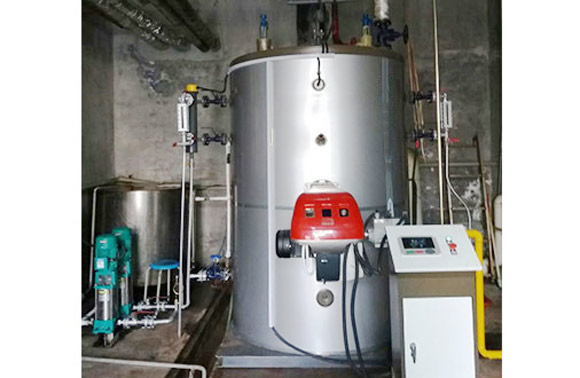

> Vertical Oil Gas Steam Generator

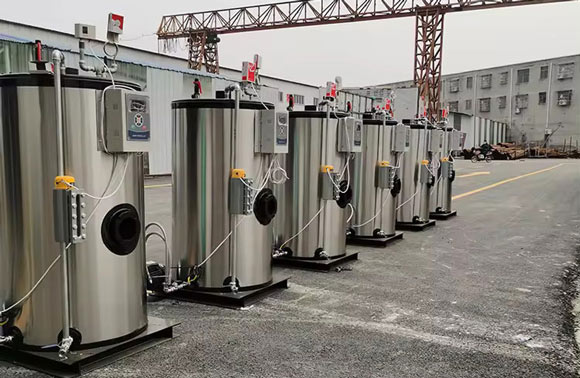

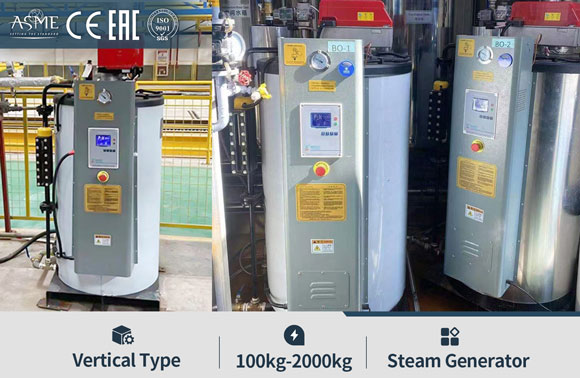

LSS Series Vertical Steam Generator Boiler
Vertical steam generator boiler, steam generating 100kg/hour 200kg/hour 300kg/hour 500kg/hour 700kg/hour 1000kg/hour 1500kg/hour 2000kg/hour.
It adopts water pipe through-flow structure and vertical three pass structure. Fully automatic control with good performance burner.
High efficiency, Easy to install, Fully automatic operation, High Security, Less occupied area, Long service life.
Features & Advantages
1. MEET THE REQUESTS FOR ENGINEERING AND DESIGN
It covers a small area with the compact layout, the system is safe and reliable, and it can be installed in the narrow spaces such as basement, floor and roof. It has many functions like low failure rate and convenient maintenance.
2. QUICK START STEAM PRODUCTION AND SUPPLY LOAD STABILITY
Using the unique drum, high level design, large water capacity, the boiler has soft drinks plenty of room, it will take only 6~8 minutes from cold to full load status, has the function of stable supply load.
3. DELIVERY AS SELF-CONTAINED, EASY TO INSTALL
Ready run products factory, small vibration, low noise, no equipment foundation, can be freely positioning, easy installation.
> Product: Horizontal Steam Generator Boiler

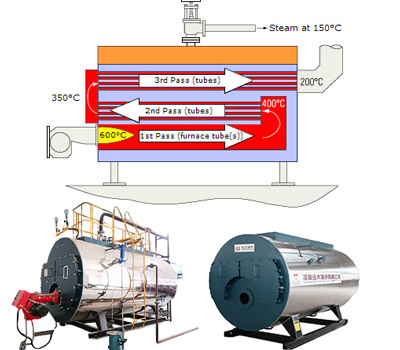

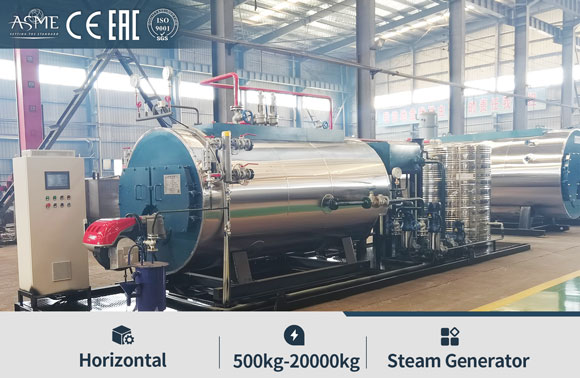

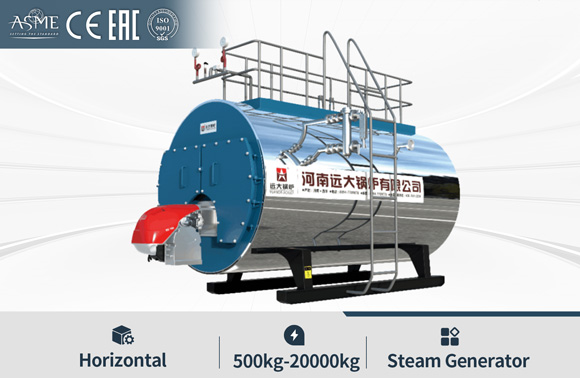

Hot Selling---Fire Tube Steam Generator Boiler

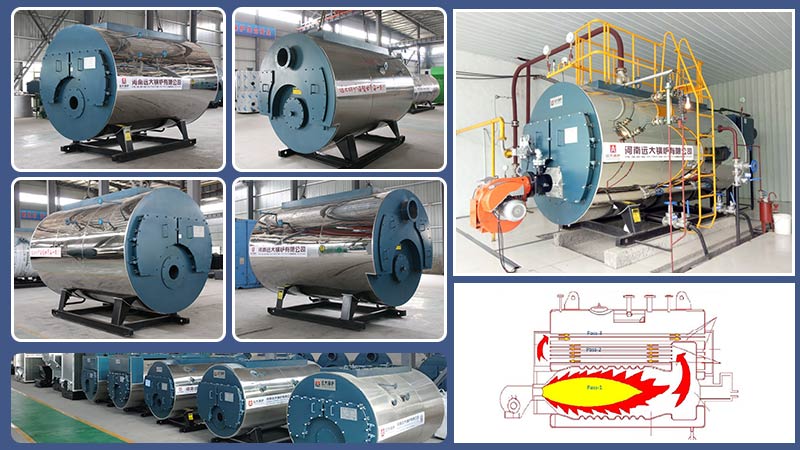

WNS series horizontal package fire tube steam generator boiler, thermal capacities in 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton to 20ton max.
1) Fully automatic energy-saving gas oil fired shell boiler, thermal high efficiency >98%. Widely use for kinds industries/factory/plant processing.
2) Higher steam quality generation, saturated steam temperature in 100°C-226°C, steam pressure in 1bar-25bars.
3) Available to run on gas, lpg, diesel, heavy oil, dual fuel, biogas.
> Product: Electric Steam Generator

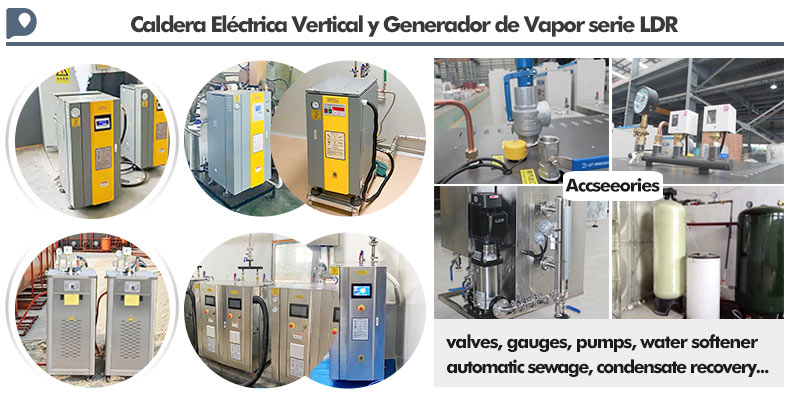

LDR Series Electric Steam Generator 9kw-700kw, 13kg-1000kg/hour.
Steam Generator Cases

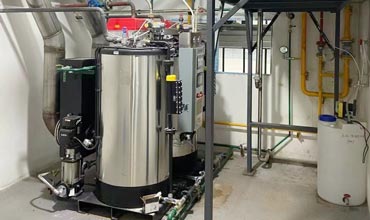

Laundry Steam Boiler
100kg Gas steam generator for laundry dryer machine, quick running & clean steam geenration for laundy equipment.

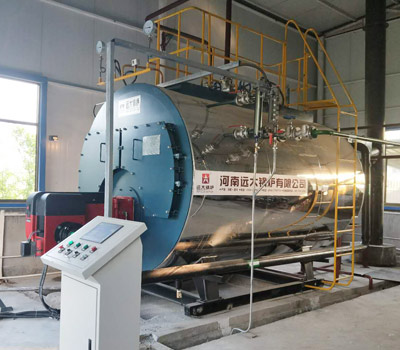

Dairy Plant

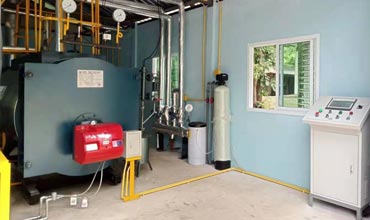

Horizontal gas steam generator boiler in dairy plant, stable & high quality steam supply for milk pasteurization.

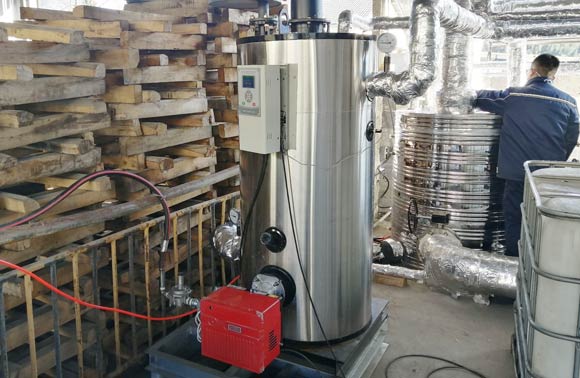

Mushroom Steam Boiler
Small gas steam generator 100kg 150kg 200kg for mushroom Sterilization of Substrate, Pasteurization, Humidity Control, Temperature Control.

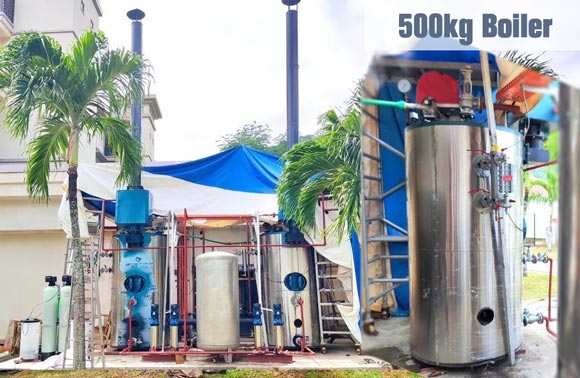

Slaughter House Steam Boiler
500kg/hour gas steam boiler, work for slaughter house processing in Cleaning and Sanitization, Scalding and Hair Removal.Technical Parameter
| Gas Steam Generator Technical Parameter Table | |||||||
| Model | Rated evaporation(KG/H) | Water capacity(L) | Saturation temperature(℃) | Use voltage(V) | Thermal efficiency(%) | gas consumption(m³/h) | Boiler weigh(kg) |
| LS0.08-0.7-Q | 80 | 2.4 | 170 | 220 | ≥98 | 5 | 52 |
| LS0.3-0.7-Q | 300 | 9.6 | 170 | 220 | ≥98 | 20 | 225 |
| LS0.6-0.7-Q | 600 | 19 | 170 | 220 | ≥98 | 34 | 415 |
| LS1-0.7-Q | 1000 | 24 | 170 | 220 | ≥98 | 52 | 620 |
| LSS0.1-0.7 | 100 | 29 | 170 | 220 | ≥96 | 7 | 560 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||

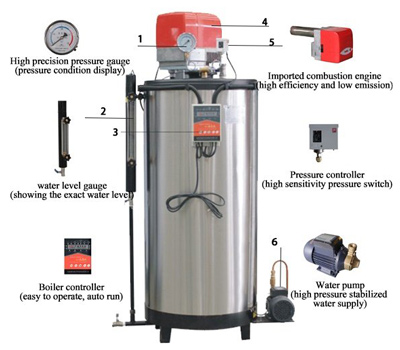

Steam Generator & Accessories
Boiler Solution
Oil Gas Boiler Consumption
For example, 1ton boiler comsumes 73.53 Nm3 natural gas (heat value 8500kcal). 52kg LPG (heat value 12000kcal). 72 ltrs diesel (heat value 8670kcal).
Boiler Consumption Cost
Tell us your required boiler capacity, fuel type, operating pressure, daily operating hours, and local fuel price. Our team can help evaluate suitable boiler options and estimate operating costs based on your project conditions.
Customized Boiler Solutions for Your Application
Every industrial process has different heating requirements. Selecting the right boiler involves more than choosing a capacity.
Boiler Configuration & Auxiliary Equipment
A complete boiler system involves more than the boiler itself. Auxiliary equipment may include feedwater pumps, water treatment systems, economizers, burners, dust collectors, and automatic control systems...
Why Choose us
Complete Boiler Solutions – Customized boiler systems based on your required capacity, fuel type, working pressure, and application.
International Certifications – Manufacturing capabilities supported by ASME, ISO 9001, CE PED, EAC, DOSH, and CRN certifications, as applicable to the specific model and market.
Global Project Experience – Boiler equipment supplied to over 135 countries and regions, with installation and commissioning services completed in more than 60 countries.
Direct Manufacturer Support – Professional technical assistance from project consultation and equipment selection to installation and after-sales service.
Henan Yuanda Boiler Corp Ltd
We are a fully integrated manufacturer specializing in the design, engineering, manufacturing, installation, and after-sales service of industrial boilers and incinerators. Our products are available with internationally recognized certifications, including ASME, CE PED, ISO 9001, EAC, DOSH, and CRN.
With nearly 70 years of manufacturing experience and more than 20 years of export expertise, we supplied industrial heating equipment to over 135 countries and regions across Asia, Europe, Africa, North America, South America, and Oceania.
