Electric Steam Generator
 Product capacity: |
9kw-7000kw 10kg-10000kg |
 Working pressure: |
1bar-15bar |
 Available fuel: |
Electricity, 3phase, 220V-690V, 50-60Hz |
 Available industries: |

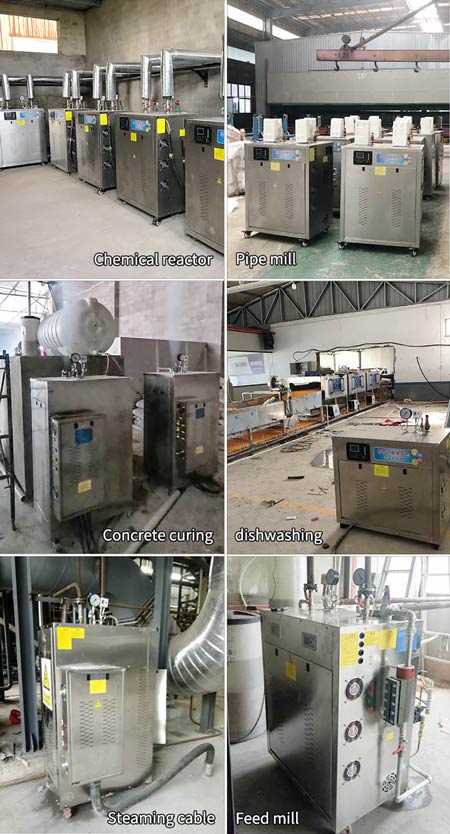

For Garments Washing Ironing, Food, Biotechnology, Packaging, Pharmaceutical, Chemical, Coating, Cooking, Concrete Curing, Sauna, Beauty Club. |
Yuanda Products:#Steam-Boiler #Hot-Water-Boiler #Steam-Generator #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Exhaust-gas-boiler
Introduction

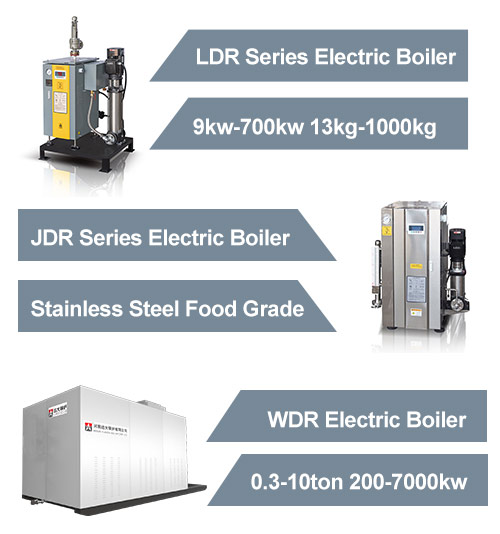

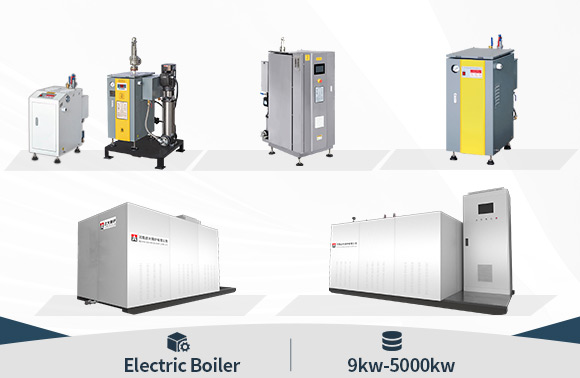

> Electric Steam Generator & Boiler
Customzied Design Service Accroding to Your Requirements.

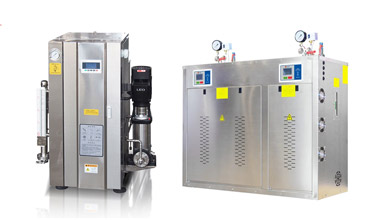

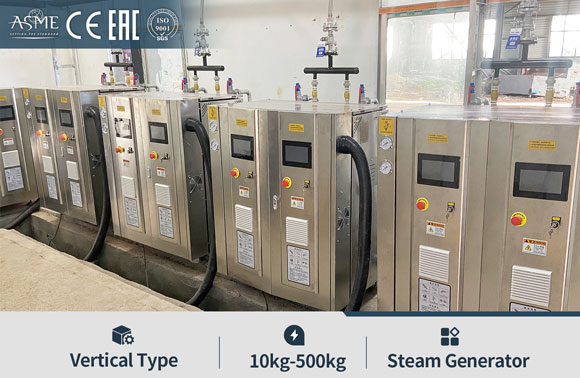

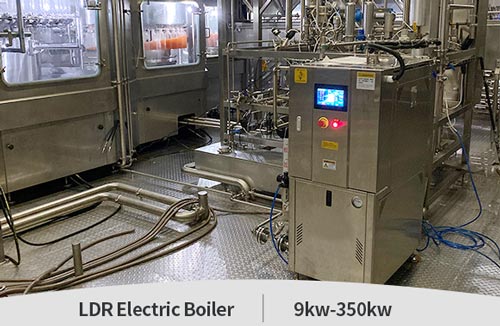

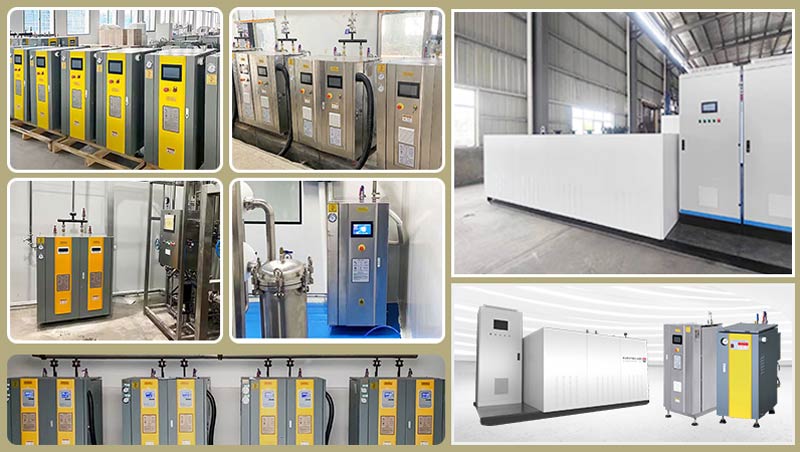

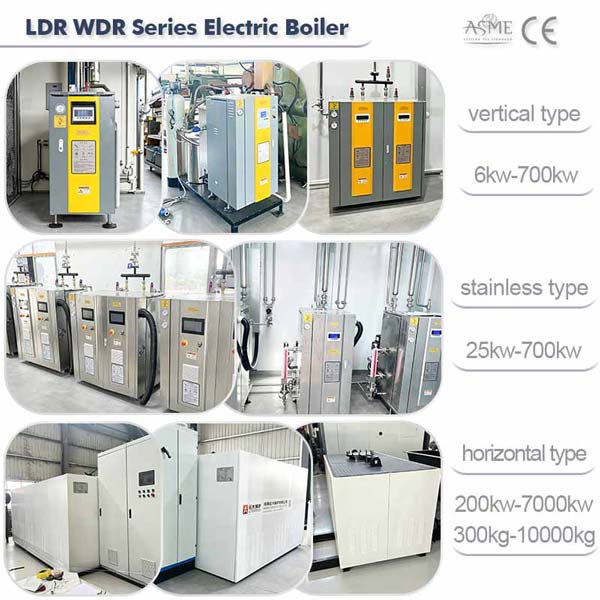

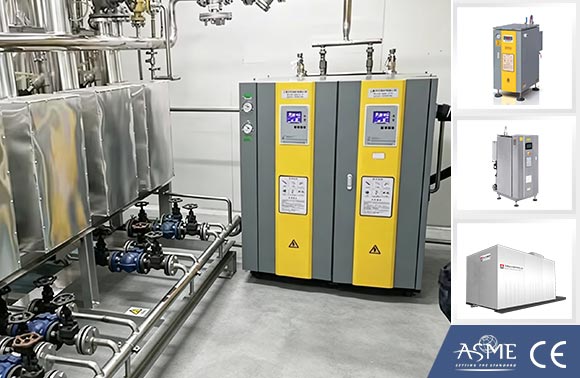

Electrial Steam Generator
Capacity in 6kw-350kw, 10kg-500kg

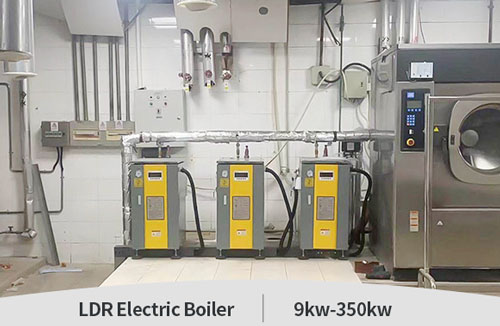

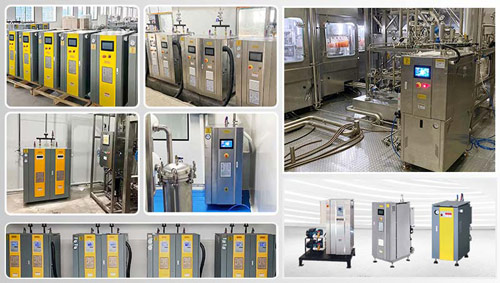

LDR series electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.

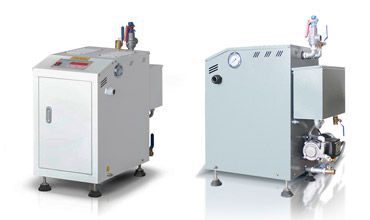

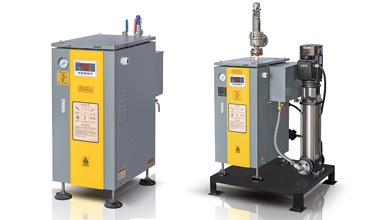

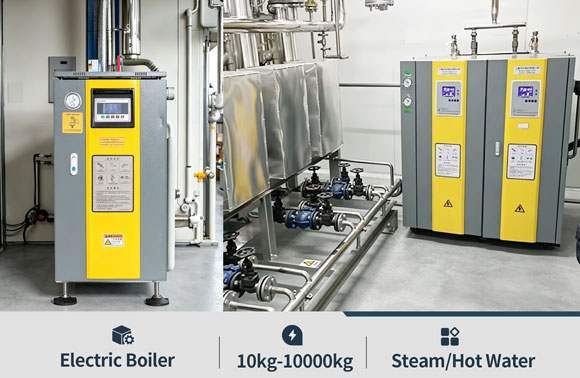

Smallest Electric Steam Generator
6kw 9kw Smallest Electric Steam Generator, use stainless heating tubes.

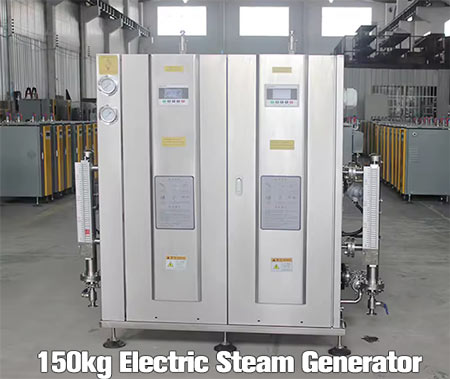

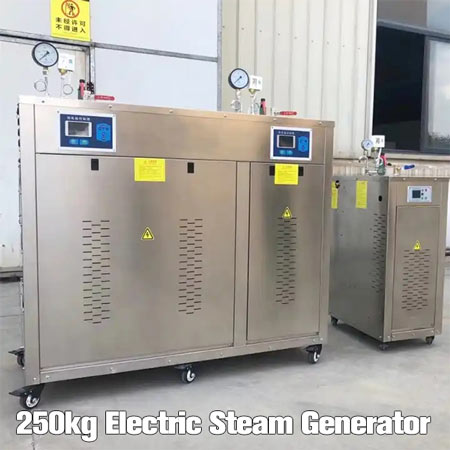

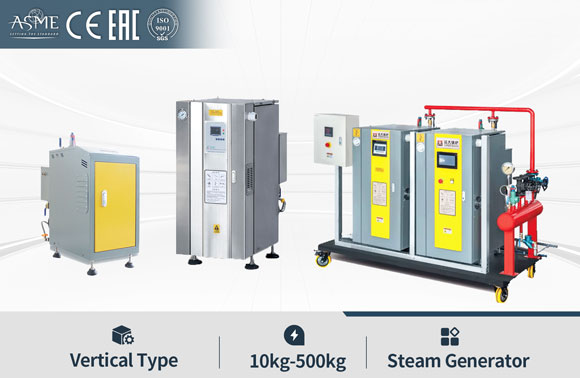

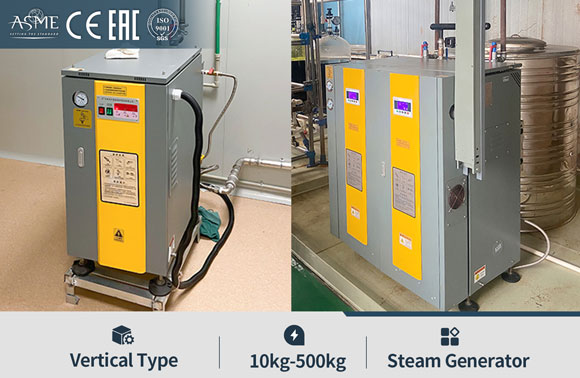

25kg-500kg Electric Steam Generator
Electric steam generator, work pressure 1bar-12bars.

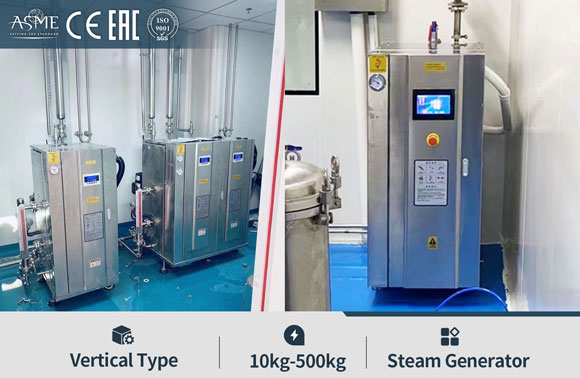

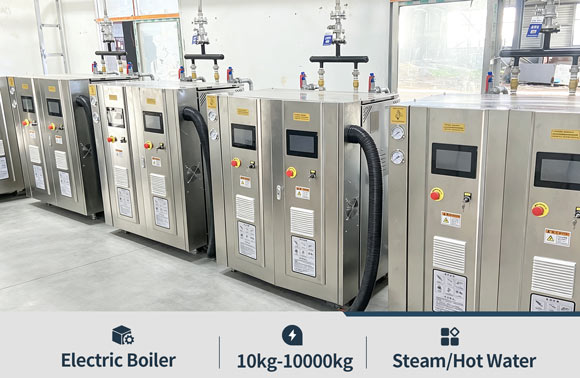

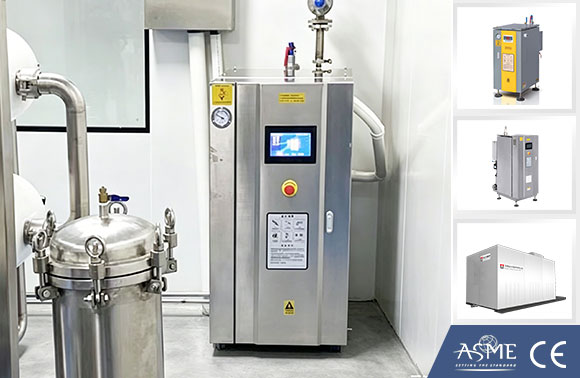

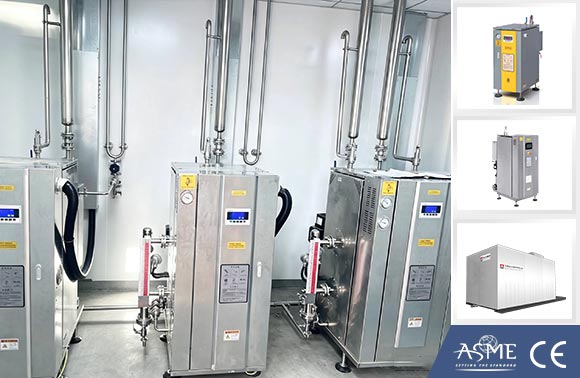

Clean Type Electric Steam Generator
Using stainless steel material outer packaging, capacity in 35kw-350kw, 50kg-500kg.Features:
1. Environmentally Friendly & high efficiency
Nearly 100% thermal efficiency, quiet, clean, more in line with the requirements of environmental protection, will not emit NOx (nitrogen oxides) to the atmosphere.
2. Easy to Install and Use Simply
Before leaving factory, products should pass strict debugging. Quick Install & Quick Start & Automatic Operate.
3. Multiple Safety Interlock Protection
Installed with overpressure protection, low water level protection, leakage protection, ensure the operation 100% safety.

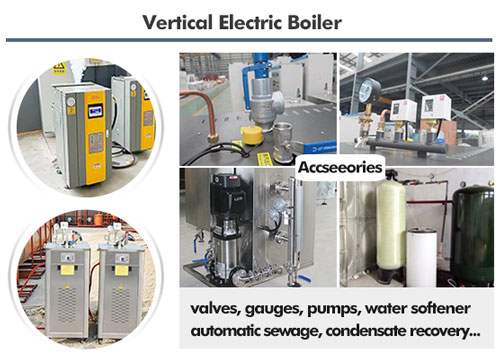

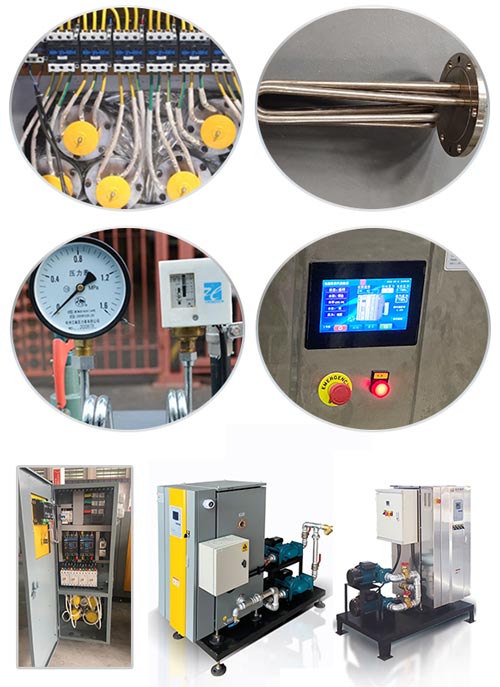

4. Use High-quality Components
All pipes and instruments are connected by using stainless pipes or copper pipes, safe and reliable with luxurious configuration.

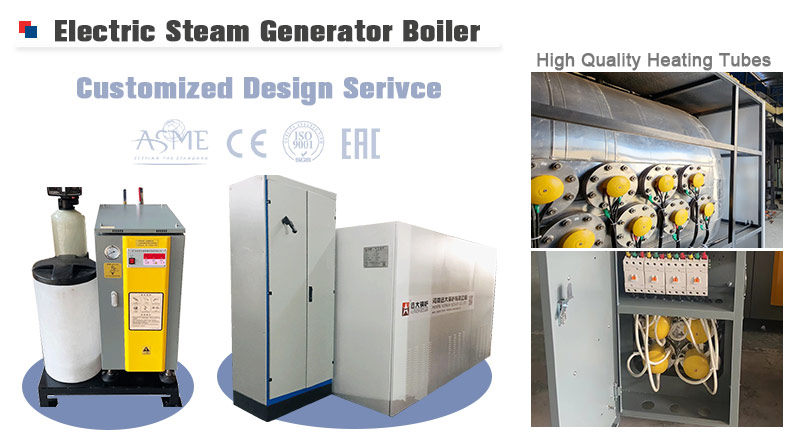

5. High Quality Electricity Heat Tube
Electric heating pipe use stainless steel pipe with high-quality thick wall of 316L, has a longer life span service.

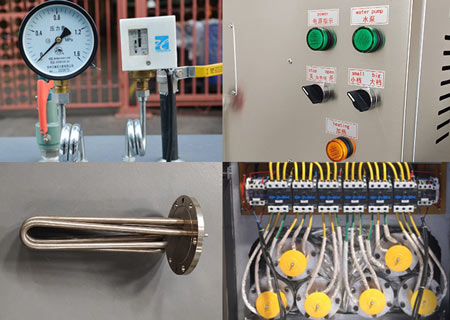

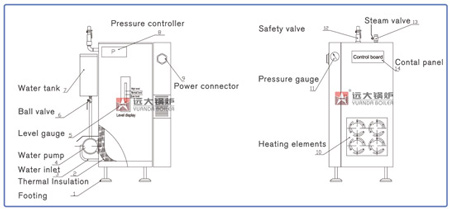

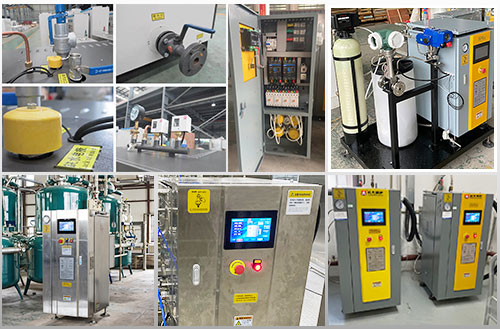

Details:
Hot Selling
Technical Parameter
| Model | Types | Thermal capacity (kg/h) | Thermal capapcity (kw) | Working pressure | Steam temperature | Thermal efficiency | Dimension (mm) | Weight (kg) |
| LDR0.013 | Vertical | 13 | 9 |
0.3Mpa-1.5Mpa 3bar-15bar (Customized design) |
130ºC-194ºC (Customized design) |
98%-99.5% | 650*390*750 | 70 |
| LDR0.017 | 17 | 12 | 650*390*750 | 75 | ||||
| LDR0.025 | 25 | 18 | 750*450*1050 | 90 | ||||
| LDR0.035 | 35 | 24 | 750*520*1050 | 95 | ||||
| LDR0.05 | 50 | 36 | 750*580*1150 | 101 | ||||
| LDR0.065 | 65 | 48 | 800*580*1200 | 115 | ||||
| LDR0.075 | 75 | 54 | 800*580*1300 | 140 | ||||
| LDR0.085 | 85 | 60 | 800*600*1300 | 145 | ||||
| LDR0.1 | 100 | 72 | 860*650*1390 | 172 | ||||
| LDR0.11 | 110 | 80 | 860*650*1390 | 185 | ||||
| LDR0.125 | 125 | 90 | 860*650*1430 | 190 | ||||
| LDR0.15 | 150 | 108 | 920*760*1600 | 245 | ||||
| LDR0.18 | 180 | 126 | 920*760*1600 | 260 | ||||
| LDR0.2 | 200 | 144 | 1130*750*1780 | 450 | ||||
| LDR0.25 | 250 | 180 | 950*900*1830 | 650 | ||||
| LDR0.3 | 300 | 216 | 1320*1040*1920 | 760 | ||||
| LDR0.4 | 400 | 288 | 1380*1040*2070 | 890 | ||||
| LDR0.5 | 500 | 360 | 1020*890*2350 | 1020 | ||||

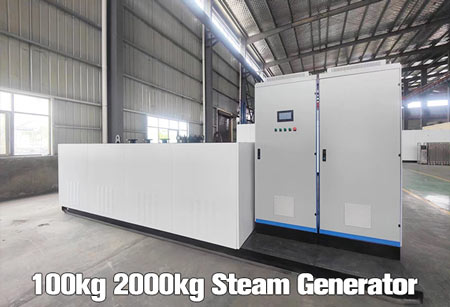

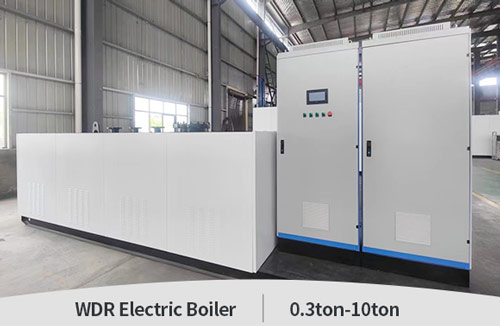

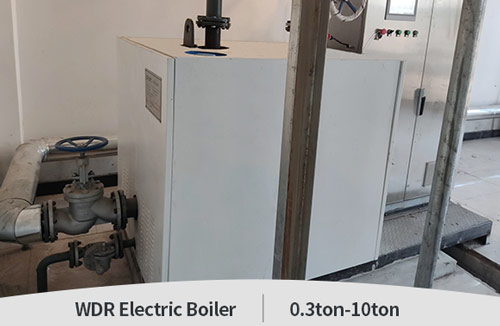

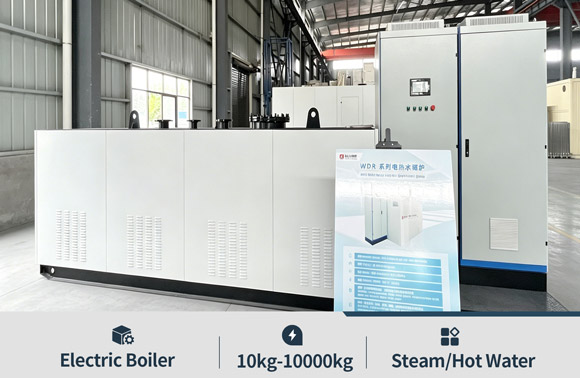

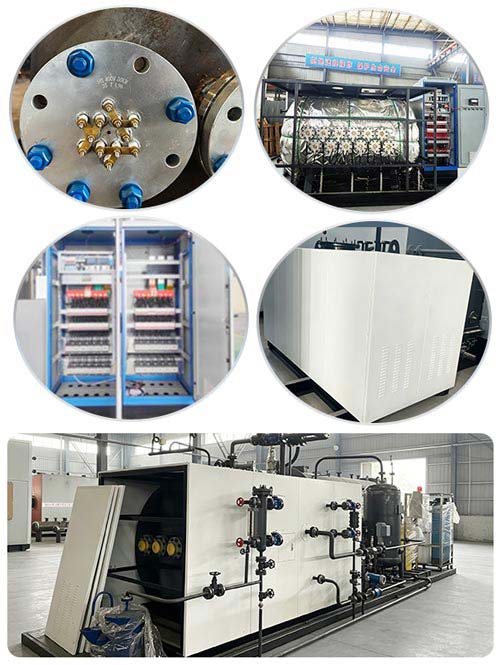

| WDR0.5 | Horizontal | 500 | 360 | 1755*1180*1510 | 1400 | |||
| WDR1.0 | 1000 | 700 | 2530*1380*1480 | 1730 | ||||
| WDR2 | 2000 | 1400 | 2530*2000*2080 | 2730 | ||||
| WDR3 | 3000 | 2100 | 2630*2210*2160 | 3420 | ||||
| WDR4 | 4000 | 2800 | 3680*2360*2380 | 4320 | ||||
| WDR5 | 5000 | 3500 | 3980*2580*2560 | 5130 | ||||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||

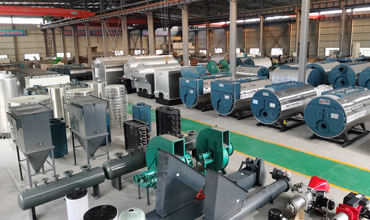

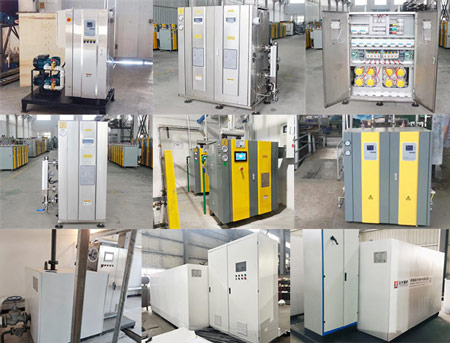

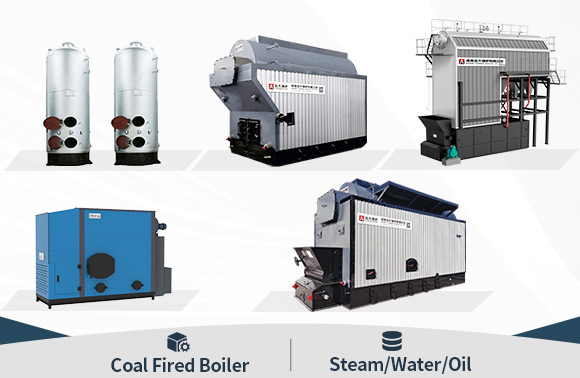

Our Supply Equipment List
