Fuel Lpg Gas Diesel Oil Fired Boiler
 Capacity: |
0.1t/h-50t/h 10hp-3000hp |
 Pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Fuel: |
Diesel, heavy oil, waste oil, natural gas, lpg, biogas, hydrogen... |
 Application: |
For Industries factory processing, For Heating system, Such as Food & beverage, dairy, laundry, feedmill, paper, packages, garments, textile, oil mill, hotel, chemical... |
| Certificates: |
ISO, CE, ASME, DOSH, EAC, CRN |

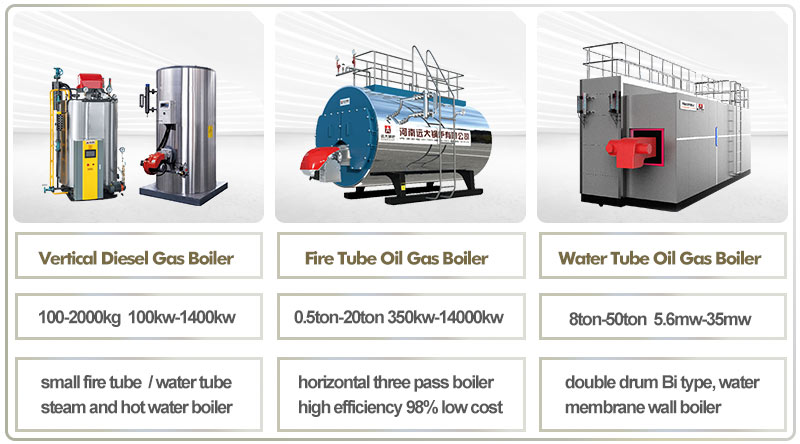

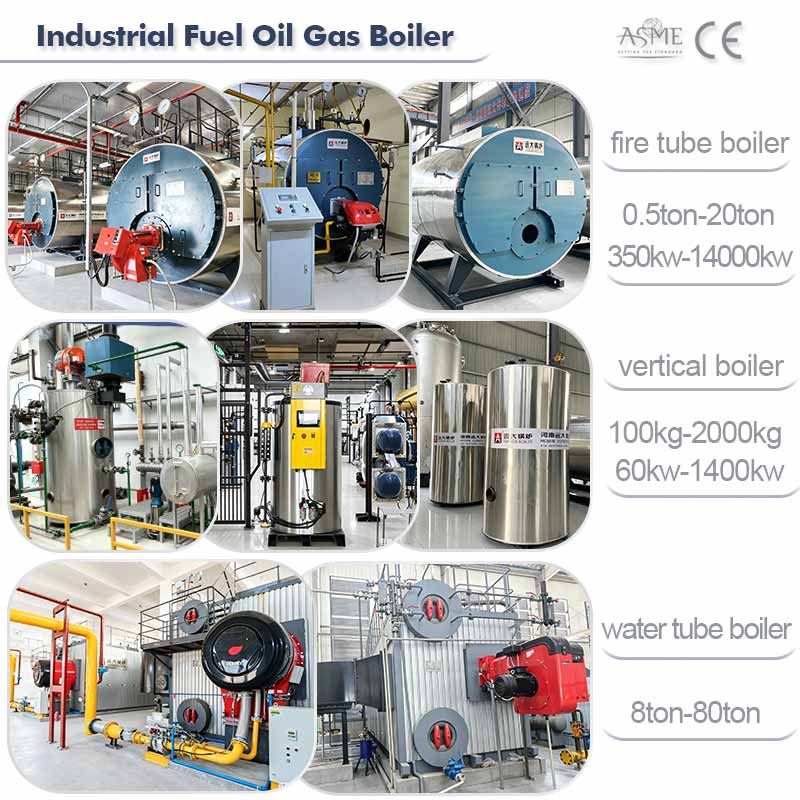

Yuanda Products:Steam Generator, Steam Boiler, Hot Water Boiler, Thermal Oil Boiler, Hot Air Furnace
Introduction

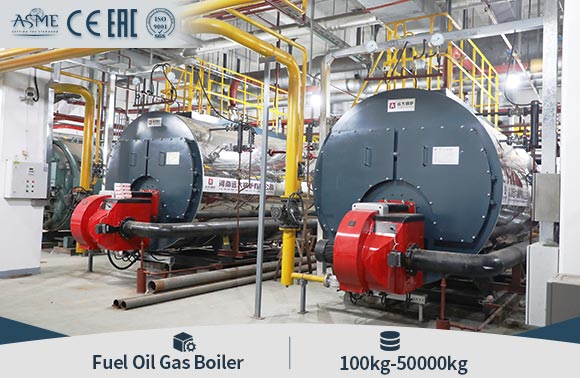

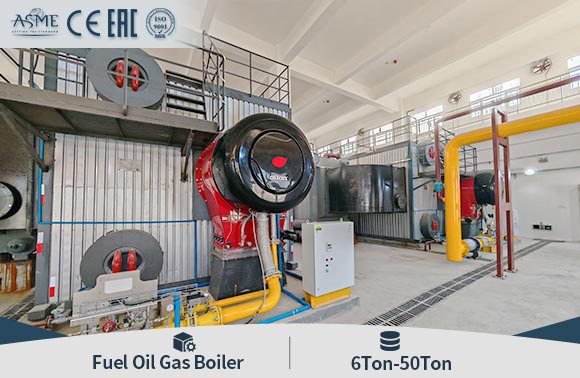

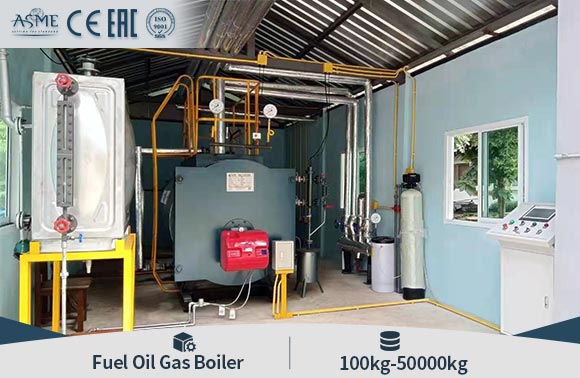

Gas Oil Boiler
Certified by ASME, CE, ISO, EAC, DOSH, TUV, BV, ensuring high quality and compliance with international standards.

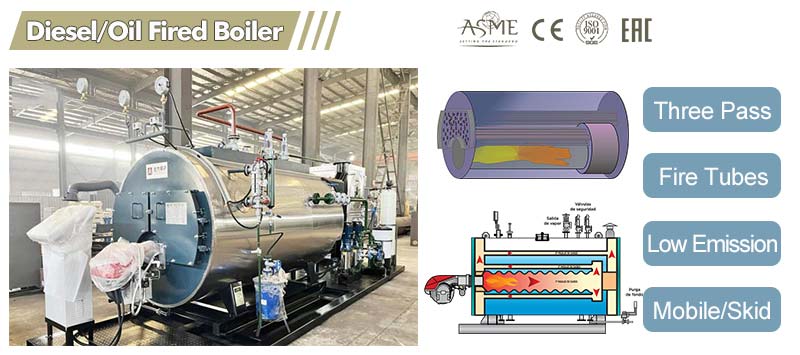

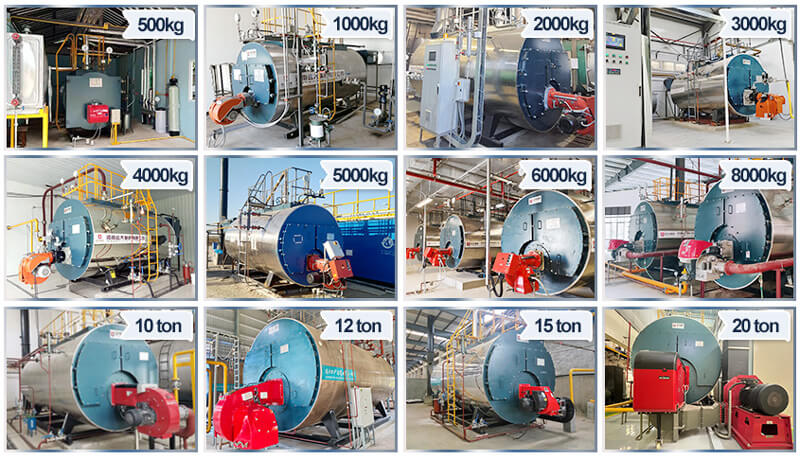

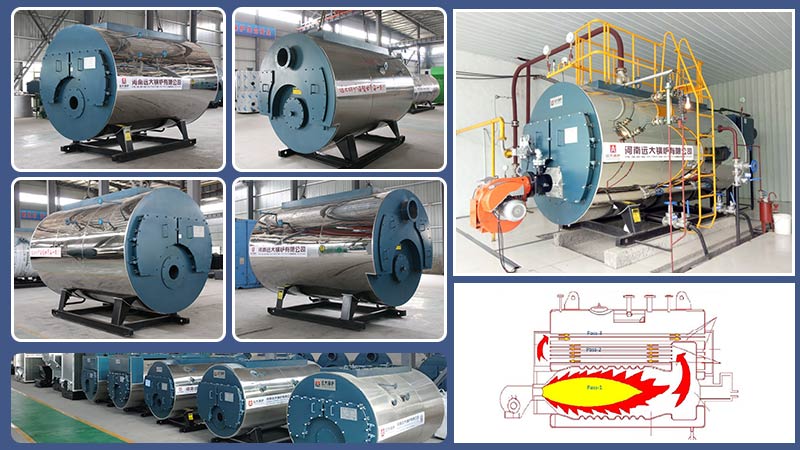

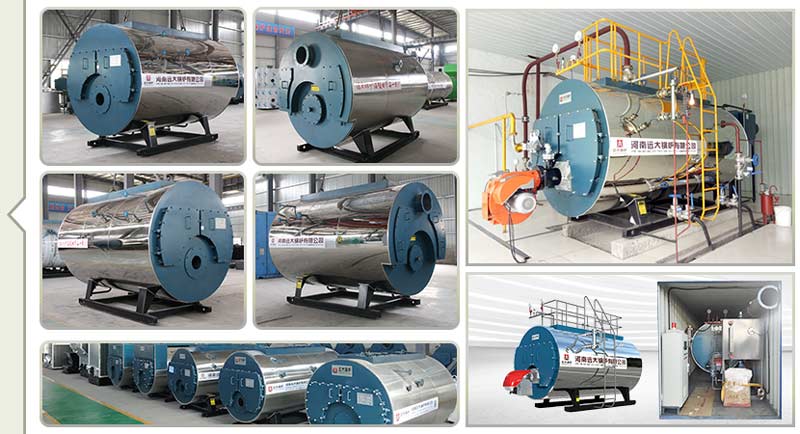

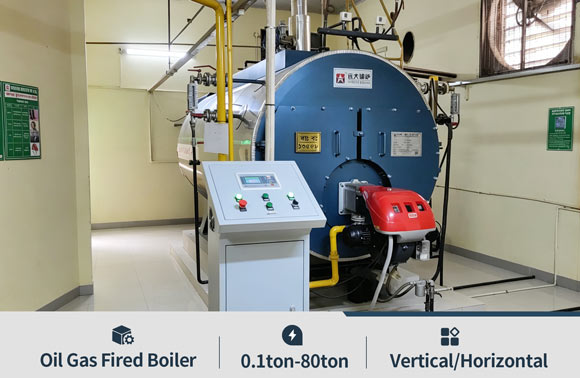

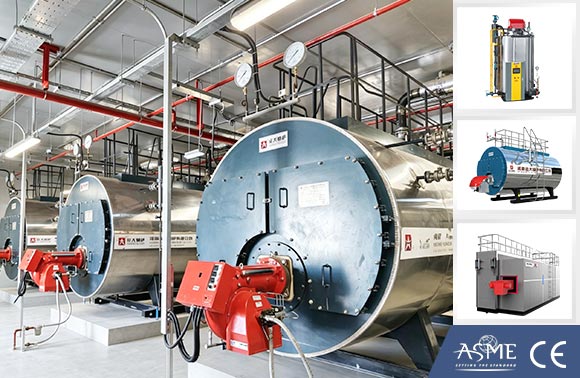

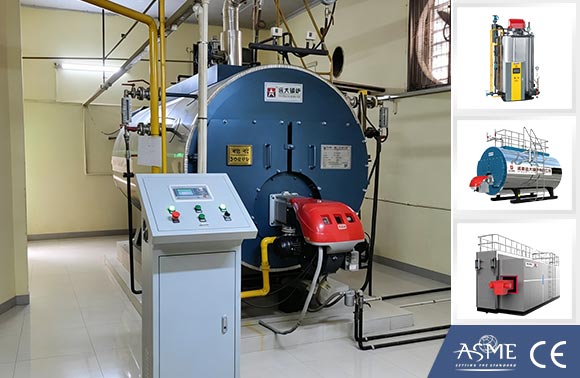

Most Popular: WNS Fire Tube Boiler
WNS fire tube boiler features a horizontal wet-back, corrugated furnace, three-pass design for efficient heat transfer and reliable steam production. With high thermal efficiency, fully automatic operation, and low emissions, it offers a practical solution for various industrial applications.
Wet-Back, Corrugated Furnace, Three-Pass Design: Optimized heat transfer structure for efficient heat utilization and reliable steam production.
High Efficiency: Reduces fuel consumption and helps lower operating costs.
Fully Automatic Operation: Automatic combustion control for convenient operation and stable performance.
Low Emissions: Optimized combustion helps reduce pollutant emissions.

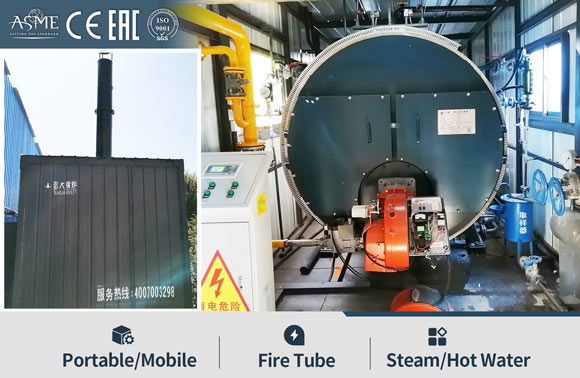

Portable Skid-Mounted Design: Integrated equipment simplifies transportation, installation, and commissioning.
Mobile Boiler Option: Flexible mobile configurations allow convenient relocation to different work sites.
Global Boiler Projects Service
The boiler system can be configured with auxiliary equipment such as a feedwater pump, economizer, water treatment system, steam separator, blowdown system, and chimney according to project requirements.

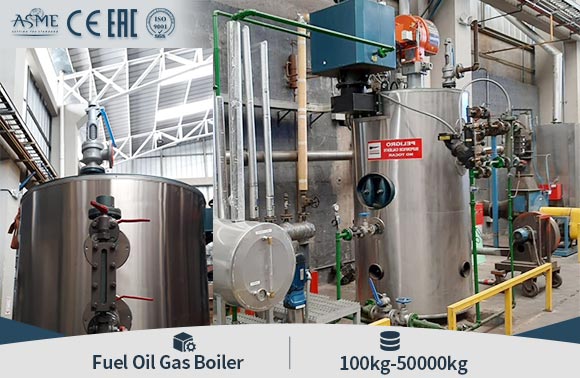

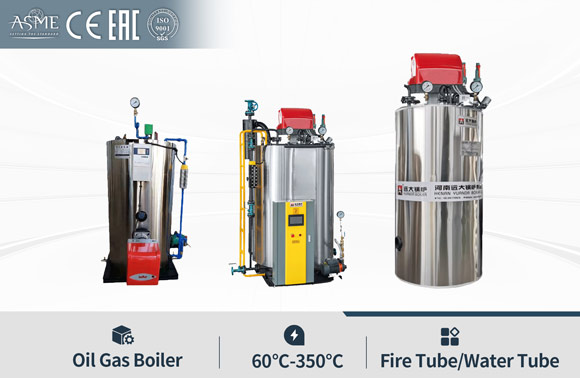

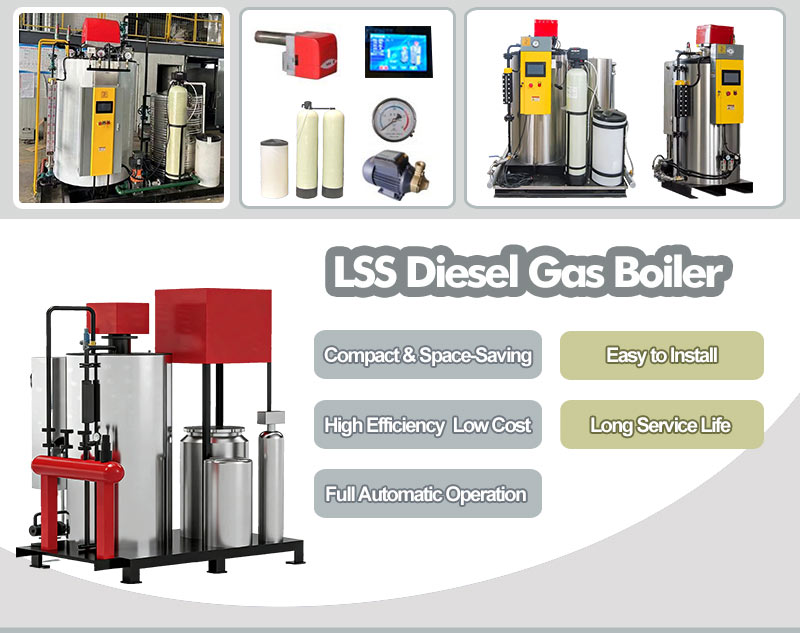

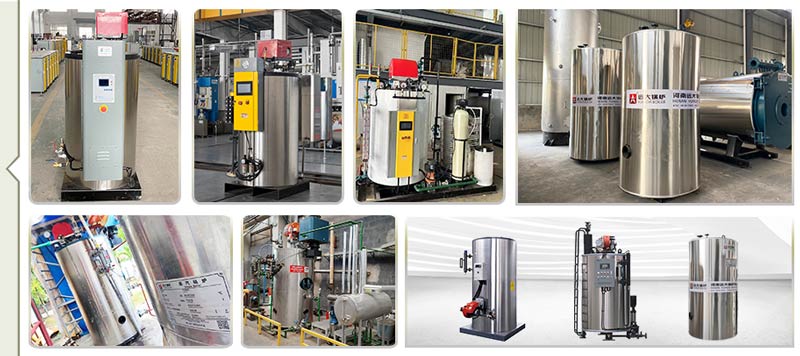

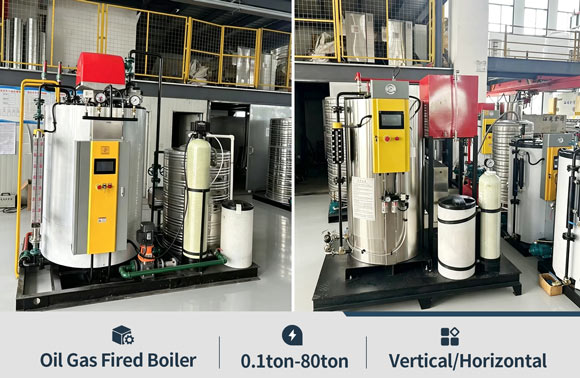

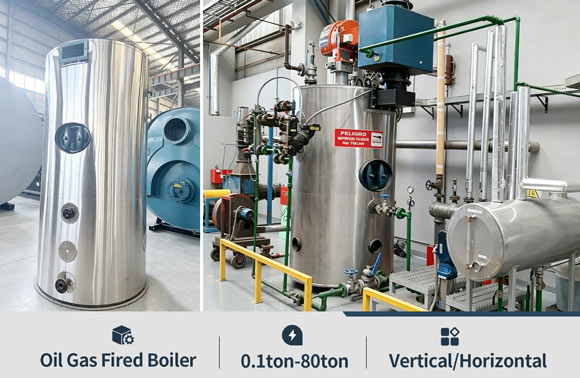

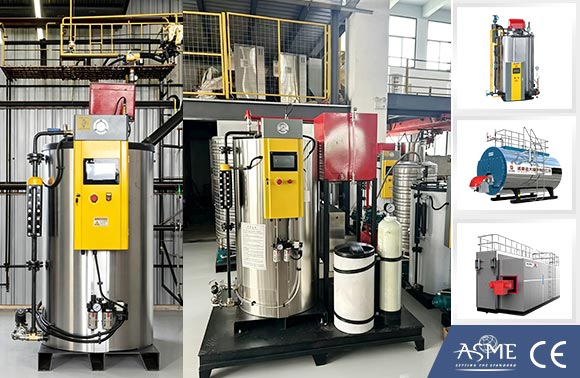

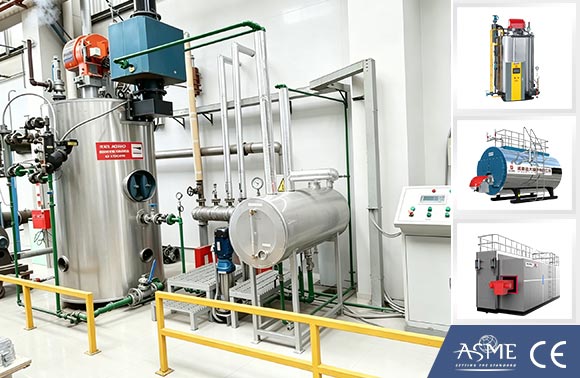

Hot Selling: Vertical Diesel Gas Lpg Boiler
Thermal Capacity in 100kg-2000kg 100kw-1400kw
We have vertical fire tube boiler & vertical once through water tube boiler. With advantages of Small Size Saving Boiler Occupied Area, Simple Structure Easy to Install & Operate, Efficieny Working, Low Emission.

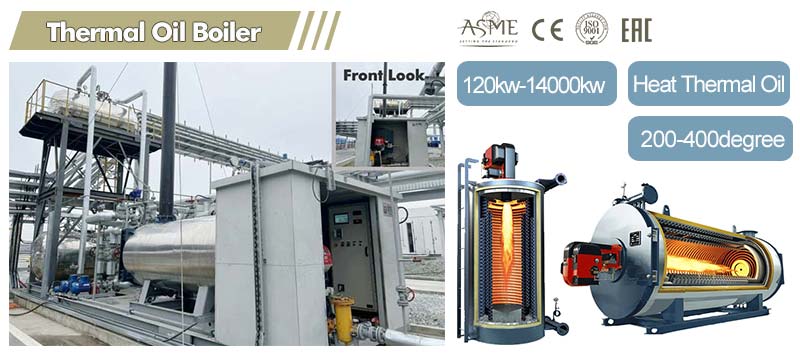

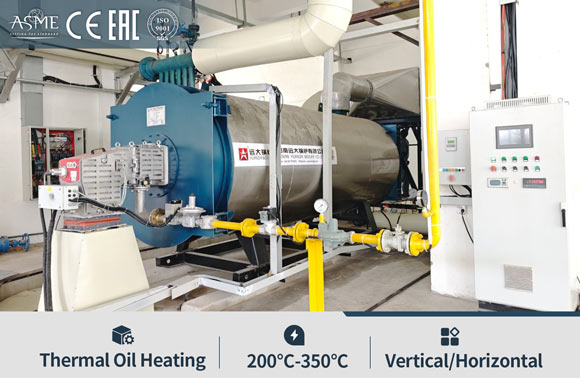

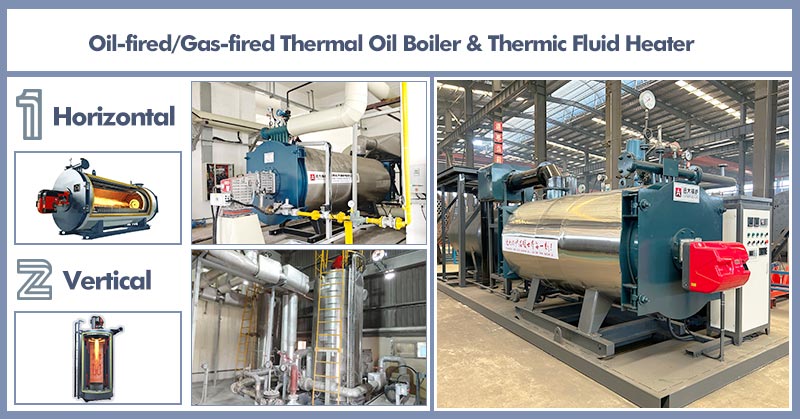

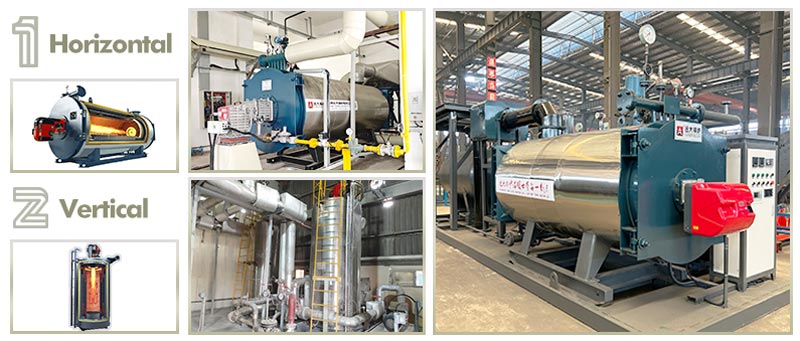

Related: Thermal Oil Heater Boiler
Gas/Diesel Fired Thermal Oil Heater Boiler. It is coil oil heaters, heating thermal oil temperature up to 350degree, 400degree (customized design temperature accordingly)
Boiler Solution
We offer boiler solutions based on the customer's required steam capacity, working pressure, fuel type, operating conditions, and local standards.
Our engineering team can assist with boiler model selection, auxiliary equipment configuration, fuel consumption estimation, and system layout planning. Installation guidance, commissioning, and technical support can also be arranged according to project requirements.
To recommend a suitable WNS fire tube boiler, please provide your required steam capacity (kg/h or tons/h), working pressure (MPa or bar), fuel type, and application.
Boiler Features
100% Safety
We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves
High Automation Boiler
Intelligient control panel of boiler, it controls the size of the flame of the burner, water level, pressure, temperature and other signals inside the boiler
Energy-Saving Boiler
Three pass boiler, three pass can extend the flue gas distance, enhance heat transfer and increase thermal efficiency. Full heat insulation condenser design
Environmental Friendly
WNS series boiler, it could satisfy all countries' environment NOx emission limit standard. We are on the way to green environment protectionTechnical Parameter
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5-1.0/1.25/1.6-YQ | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1-1.0/1.25/1.6-YQ | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8-1.0/1.25/1.6/2.5-YQ | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10-1.0/1.25/1.6/2.5-YQ | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15-1.0/1.25/1.6/2.5-YQ | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20-1.0/1.25/1.6/2.5-YQ | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Supply Boiler & Accessories
Boiler Consumption
Oil Gas Boiler Consumption
For example, 1ton boiler comsumes 73.53 Nm3 natural gas (heat value 8500kcal). 52kg LPG (heat value 12000kcal). 72 ltrs diesel (heat value 8670kcal).
Boiler Consumption Cost
Tell us your required boiler capacity, fuel type, operating pressure, daily operating hours, and local fuel price. Our team can help evaluate suitable boiler options and estimate operating costs based on your project conditions.
Customized Boiler Solutions for Your Application
Every industrial process has different heating requirements. Selecting the right boiler involves more than choosing a capacity.
Boiler Configuration & Auxiliary Equipment
A complete boiler system involves more than the boiler itself. Auxiliary equipment may include feedwater pumps, water treatment systems, economizers, burners, dust collectors, and automatic control systems...
Why Choose Yuanda
Complete Boiler Solutions – Customized boiler systems based on your required capacity, fuel type, working pressure, and application.
International Certifications – Manufacturing capabilities supported by ASME, ISO 9001, CE PED, EAC, DOSH, and CRN certifications, as applicable to the specific model and market.
Global Project Experience – Boiler equipment supplied to over 135 countries and regions, with installation and commissioning services completed in more than 60 countries.
Direct Manufacturer Support – Professional technical assistance from project consultation and equipment selection to installation and after-sales service.
Henan Yuanda Boiler Corp Ltd
We are a fully integrated manufacturer specializing in the design, engineering, manufacturing, installation, and after-sales service of industrial boilers and incinerators. Our products are available with internationally recognized certifications, including ASME, CE PED, ISO 9001, EAC, DOSH, and CRN.
With nearly 70 years of manufacturing experience and more than 20 years of export expertise, we supplied industrial heating equipment to over 135 countries and regions across Asia, Europe, Africa, North America, South America, and Oceania.
