Rice Mill Boiler
 Capacity: |
0.5 ton-80 ton |
 Fuel: |
ricehusk, wood, biomass, coal, diesel, gas lpg, hfo, electricity |
 Pressure: |
0.1 mpa-4.5 mpa |
 Thermal Efficiency: |
85% – 98% |
| Certificates: |
ISO, CE, ASME, DOSH, EAC, CRN |
In Rice Mill:Steam Boiler For Parboiling Process, Paddy Drying, Electricity Generation
Introduction

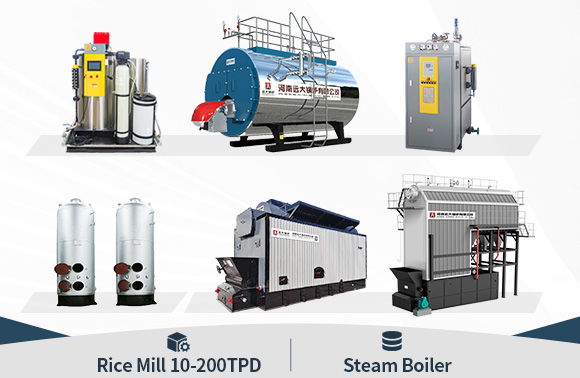

Rice Mill Boiler
Steam boiler for paddy drying, rice parboiling, grain steaming, and other thermal processing applications.
Fuel: oil diesel gas, wood, biomass, ricehusk, coal, electricity

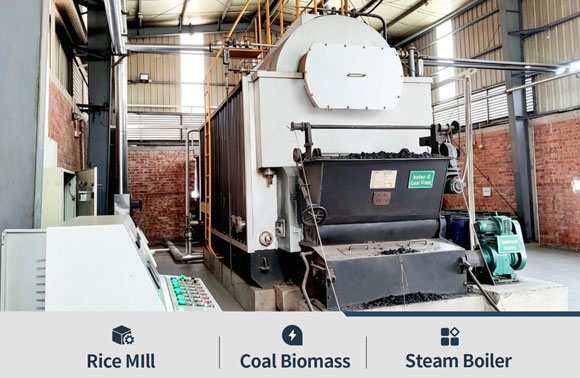

Hot Product: Biomass Ricehusk Boiler
Industrial Biomass Boiler – designed for factory processes and power generation.

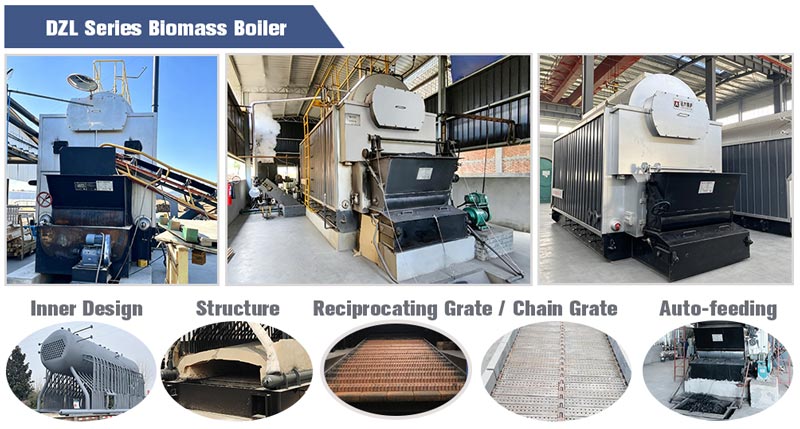

1. Hot Selling: DZL Biomass Boiler
Capacity: 0.5ton-8ton
Optional: chain gate, travelling grate, reciprocating grate stoker.
Horizontal coal/biomass water-tube & fire-tube boiler, customized automatic or manual feeding system design, high combustion efficiency for wood biomass, less consumption cost.

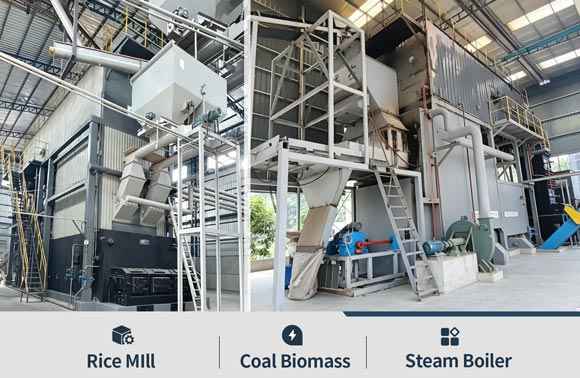

2. Water Tube Biomass Boiler
Capacity: 4ton-60ton
SZL SZW series coal biomass fired water tube boiler with double drums. water membrane wall design boiler. larger combustion furnace.

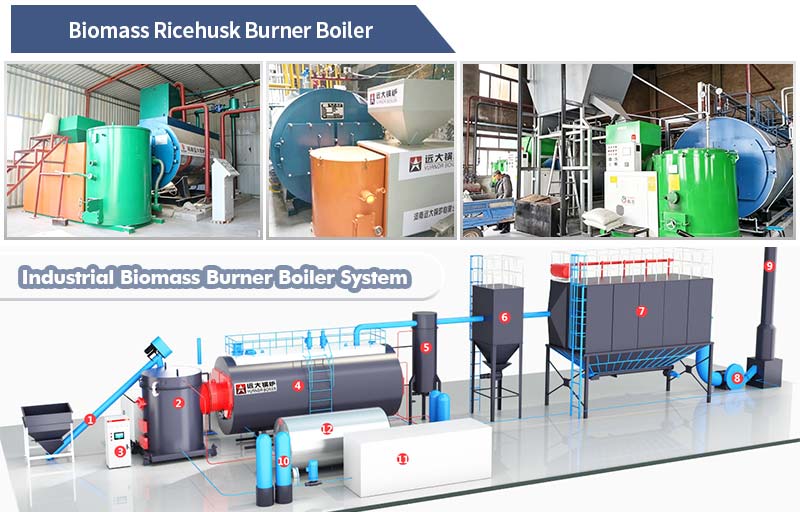

3. Biomass Ricehusk Burner Boiler
Capacity: 0.5ton-20ton
Biomass burner boiler, consist of two parts (biomass burner & furnace boiler). It use biomass burner device burning biomass supplying heating source, then high-temperature flue gas into fire tube boiler, three pass structure for heating water, help improve thermal efficiency.

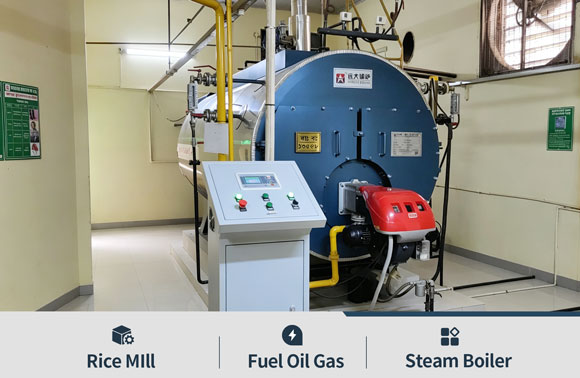

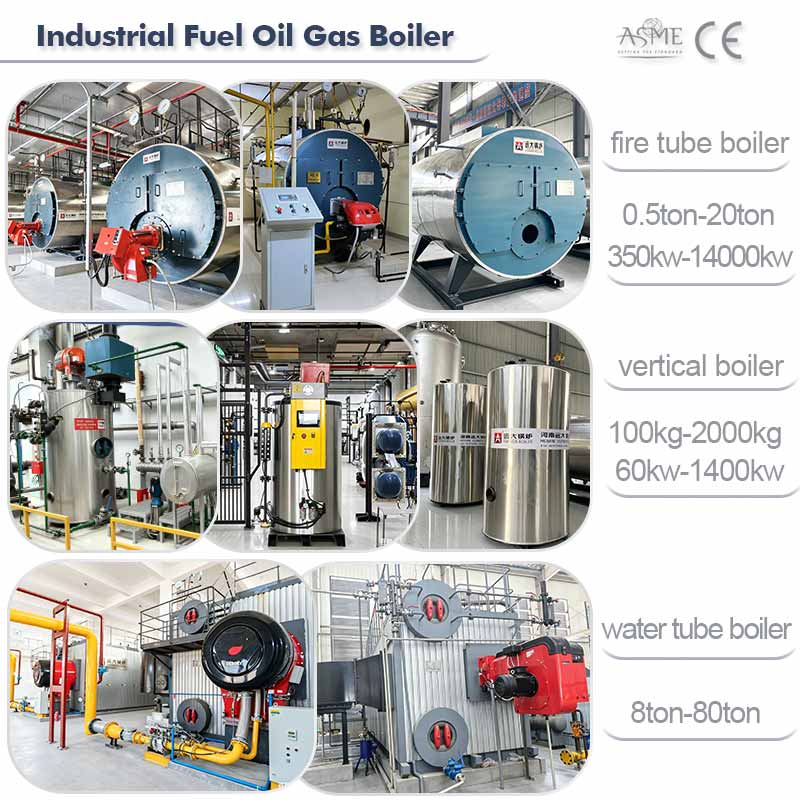

Product: Oil Gas Fired Boiler
(Fuel options: gas, lpg, biogas, diesel, heavy fuel oil, waste oil )
Horizontal oil-fired gas-fired boiler, fire tube boiler, three pass boiler, high thermal efficiency & energy saving boiler.

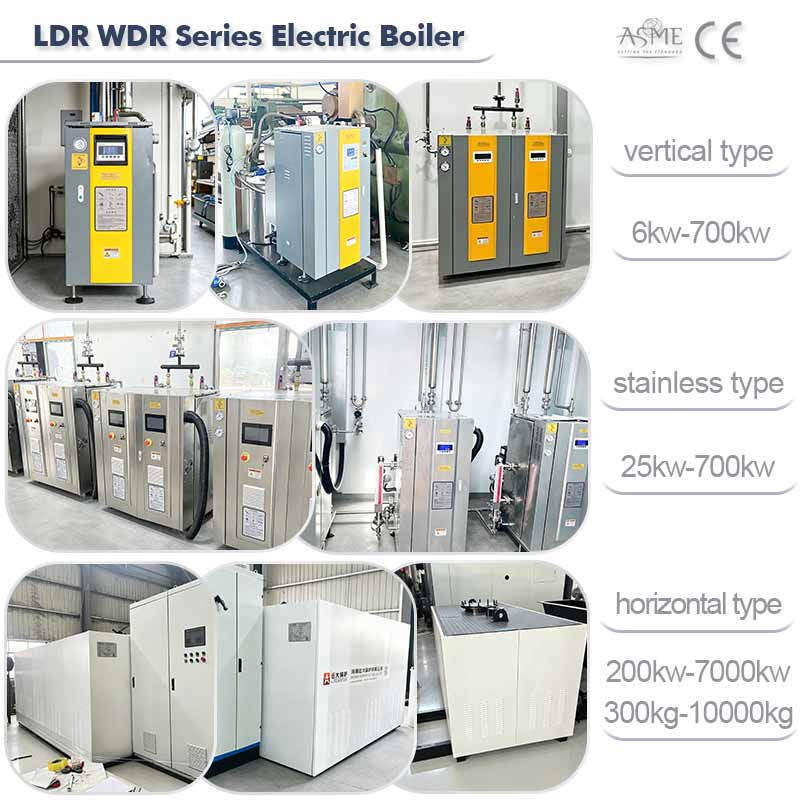

Poduct: Electric Boiler
Capacity: 9kw to 7000kw, 13kg to 10000kg
1. Vertical electric boiler (electric steam generator, electric boiler, electric hot water boiler). Small unit, portable type, plug and play.
2. Horizontal electric boiler (electric steam boiler, electric hotwater boiler), fully-automatic running, no pollution, larger thermal capacity.
Trustable Global Service
Certified Manufacturing Standards
All boilers are designed and manufactured under ASME, CE, and ISO certifications, ensuring full compliance with international pressure vessel and safety standards.
Strict Quality Control System
From raw material selection to welding, assembly, and hydrostatic testing, every process is strictly monitored. Each boiler is 100% inspected and tested before delivery.
Factory Audit and Third-Party Inspection Support
Welcome customers and authorized agencies to conduct factory inspections (audit) and witness testing. Third-party inspections such as SGS, BV, or TUV.
Experienced Technical Team
With 69 Years boiler manufacturing experience since 1956, our skilled engineers and technicians ensure each unit meets the highest performance and safety standards.Technical Parameter
| DZ Series Steam Boiler Technical Parameter Table | |||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| DZH1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZL1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 |
| DZH2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.75 | 126.41 | 386.47 | 15 |
| DZL2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.77 | 106.34 | 393.77 | 22 |
| DZH4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 |
| DZL4 | 4 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 |
| DZH6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 |
| DZL6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 |
| DZL8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Supply Boiler & Accessories
About us
Yuanda Products
steam boiler, steam generator, hot water boiler, thermal oil heater boiler, hot air furnace, waste incinerator.
Various Structure
vertical, horizontal, fire tube boiler, water tube boiler, coils heater boiler, water membrane wall structure, sing drum, double drum...
Application
widely in all industries productions heating drying process, building central heating system, electricity generation.
About us
Yuanda Boiler Company established in 1956, qualified by ISO, CE, ASME, EAC, DOSH, and CRN, ensuring safety, reliability, and quality.
Yuanda Service
We provide tailored boiler solutions. Our team shares catalogues, evaluates your working conditions, and recommends the most suitable model for your needs.
✅ Design & Manufacture
Customized boiler design and system diagram. High-standard manufacturing with strict quality control, certified by ISO, CE, ASME, and more.
✅ Boiler Foundation Preparation
Complete foundation drawings, piping layout, and operation documents to ensure smooth installation and operation.
✅ Engineer Service
On-site guidance for installation and commissioning. Professional training for operators to ensure safe and efficient boiler operation.
✅ After-Sales Support
24/7 online technical assistance, spare parts supply, and regular maintenance services — ensuring long-term reliable performance.
