10hp-3000hp(bhp) Boiler
 Product Brand: |
Yuanda Boiler |
 Product Model: |
Fire Tube Boiler, Water Tube Boiler |
 Available Fuel: |
Gas/lpg/diesel/oil, Coal/biomass/wood, electric |
 Available Industries: |
For industry in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
Yuanda Products:#Lpg-Gas-Boiler #HFO-Diesel-Boiler #Electric-Boiler #Wood-Boiler #Biomass-Boiler #Coal-Boiler #Charcoal-Briquette-Boiler
Introduction
Industrial Steam Boiler 5hp-3000hp (bhp)

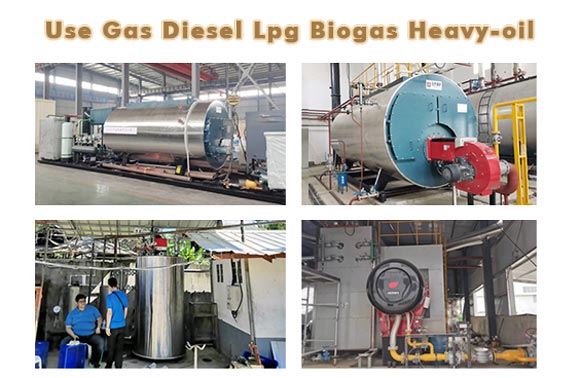

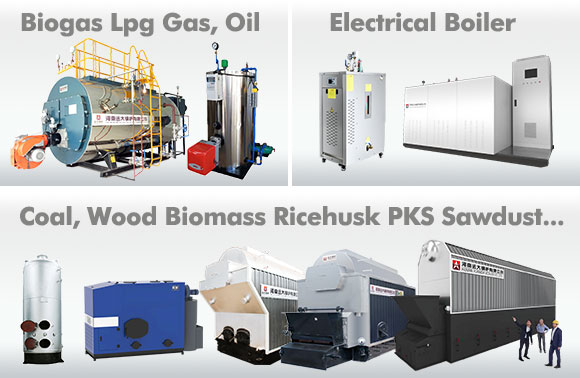

Most Popular --- Gas Boiler, Diesel Boiler, Fuel Boiler
Industrial automatic gas/lpg/cng fired boiler, diesel boiler, heavy oil fired boiler, boiler model: LHS WNS SZS.
1. Vertical Type: 10hp-100hp LHS small gas/oil boiler, vertical type burner boiler, suitable for small factorys processing.
2. Horizontal Type: 30hp-3000hp WNS horizontal boiler, fire tubes & wet back & corrugated furnace makes efficiency higher.

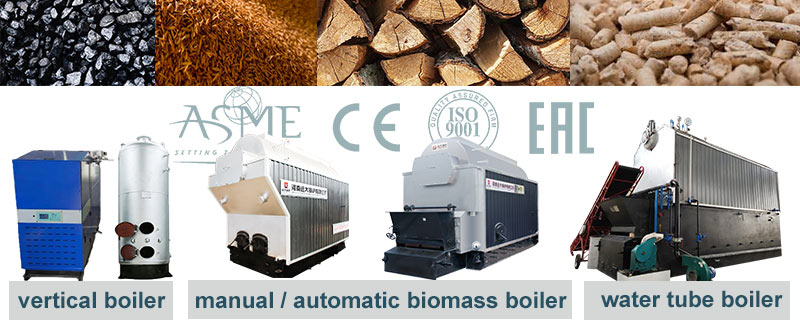

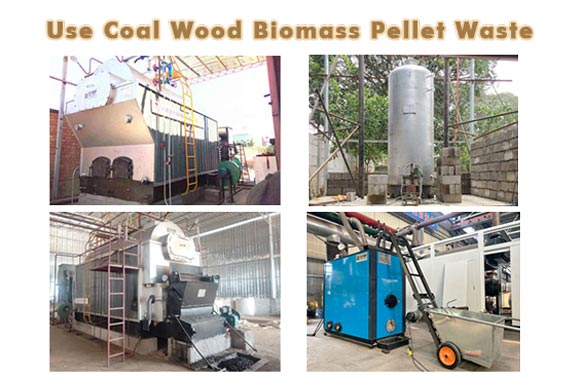

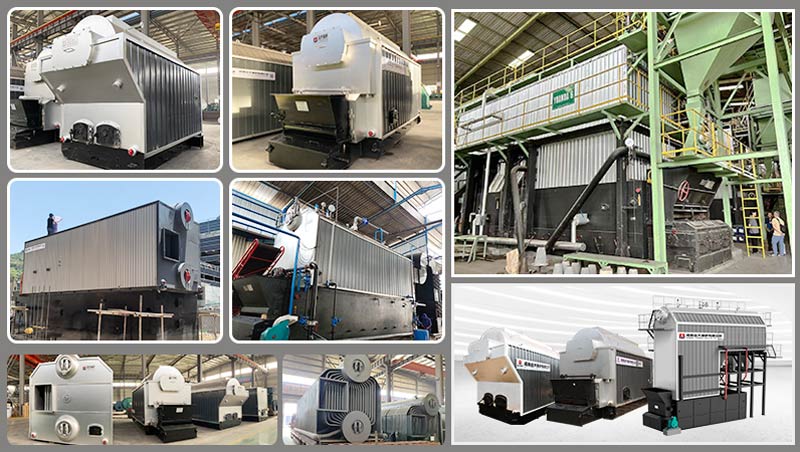

Low Cost Boiler --- Biomass/Wood Boiler
Available fuel: coal, wood, biomass, bagasse, ricehusk, palm shells, sawdust, coconuts, pellets, solid waste.
We manufacture steam boiler & hot water boiler. Supply steam/hotwater used in factory productions line, steam for electricity generation.
Thermal capacity in 100kg-50000kg, 100kw-35000kw, 30hp-3000hp.

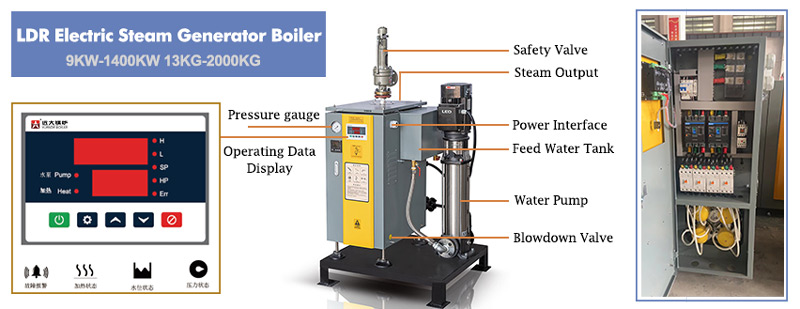

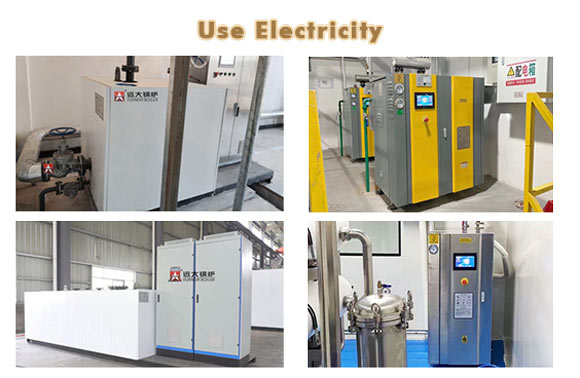

No Pollution Electric Steam Generator Boiler
1. 5hp-100hp vertical type electric boiler, Once connect electricity power and water, steam boiler into run quickly.

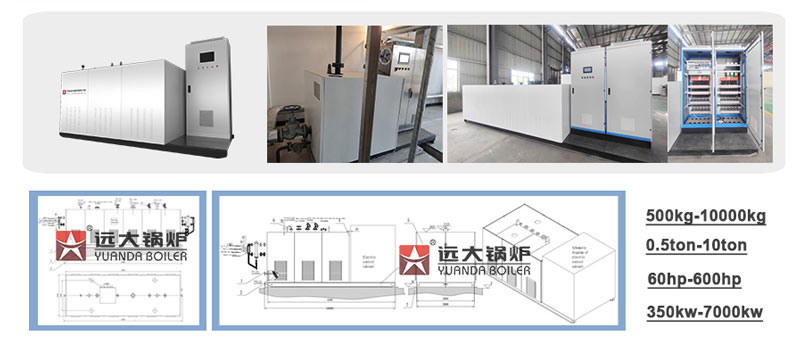

2. 30hp-600hp horizontal electric boiler, fully-automatic running machine, clean energy make no pollution, high-tech boiler.

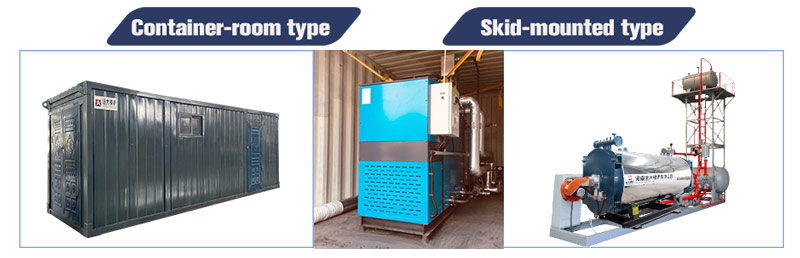

Related: Portable/Mobile steam boiler
All kinds of boilers can be installed on a platform, or container room, you only need pay for the frame/container. Skid-mounted/container boiler, all equipment is set on one platform or in a container, it's easier to transfer and quick into use, movable steam boiler for various industries.
> How to Choose A Suitable Boiler
1. Basic Boiler Information For Your Project
Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
Heat medium options: saturated/superheated steam, hot water, thermal oil.
Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
Layout options: Vertical boiler, Horizontal boiler.
Operating-mode options: Automatic, manual
Note: please feel free to send all requirements, we could help you better.
2. Calculating Running Cost
Specific consumption analysis report
Different types boiler running consumption comparison analysis report
(Note: Report is based on your local energy source price)

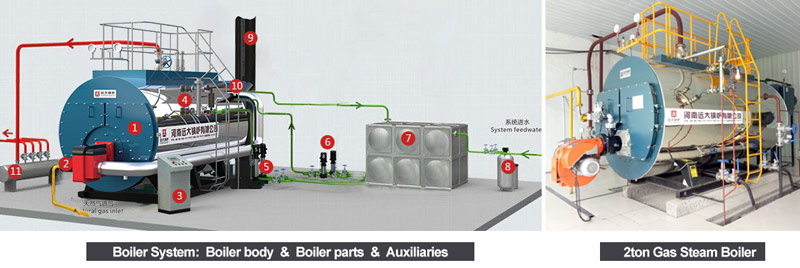

3. Boiler Accessories (essential or optional)
Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.
Note: Any special request, please send all details.
Technical Parameter
| WNS Series Horizontal Gas Oil Fired Steam Boiler Technical Parameter | |||||||||
| Model | Rated capacity(t/h) | Rated capacity(hp) | Rated pressure (Mpa) | Rated temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5 | 0.5 | 30hp | 1.0/1.25/1.6 | 184/194/204 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | 60hp | 1.0/1.25/1.6 | 184/194/204 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2 | 2 | 120hp | 1.0/1.25/1.6 | 184/194/204 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3 | 3 | 190hp | 1.0/1.25/1.6 | 184/194/204 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4 | 4 | 250hp | 1.0/1.25/1.6 | 184/194/204 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6 | 6 | 380hp | 1.0/1.25/1.6 | 184/194/204 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8 | 8 | 500hp | 1.0/1.25/1.6/2.5 | 184/194/204/226 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10 | 10 | 600hp | 1.0/1.25/1.6/2.5 | 184/194/204/226 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15 | 15 | 950hp | 1.0/1.25/1.6/2.5 | 184/194/204/226 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20 | 20 | 1200hp | 1.0/1.25/1.6/2.5 | 184/194/204/226 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Our Supply Equipment List

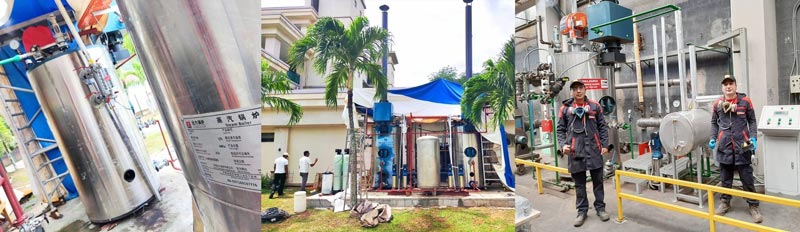

Global Sale Service
Yuanda Company Since 1956
China Leading Manufacturer For Steam Boiler, Hot Water Boiler, Thermal Oil Boiler. Global Sales Cover 132 Countries & Regions, With ISO CE ASME DOSH EAC.
Professional Technican Support
With 68 years manufacture experience, Yuanda Boiler has abundant experience on customizied solution for projects, one to one service.
15Years Export Experience
Mature boiler export experience, do not need warry about the import formalities. Professional sales manager will serve you all the time.
Trustable Engineer Services
Yuanda senior engineers are able to customers' site for service. In many countires, we have some partner companies that can help install boilers.PRODUCT LIST
