Industrial Bagasse Boiler Reciprocating Grate Biomass Hot Water Steam Boiler

Product capacity: 1-80ton/hr, 0.7-55mw
Working pressure: 0.1Mpa-3.8Mpa 1bar-38bar
Available fuel: Cane bagasse, ricehusk, olivehusk, woodchips, sawdust, palm shells, agro waste fuel.
Available industries: Suger plant, Power plant, For productions use, For electricity generating.

Yuanda Products:#Steam-Boiler #Hot-Water-Boiler #Steam-Generator #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Exhaust-gas-boiler

Introduction

> Bagasse Fired Boiler

Thermal Capacity: 1ton-50ton, 700kw-28000kw

Yuanda Bagasse fired water tube boiler, has double water steam drums, double drums layout "A" type. Superior water membrane wall structure boiler, with reciprocating grate stoker.

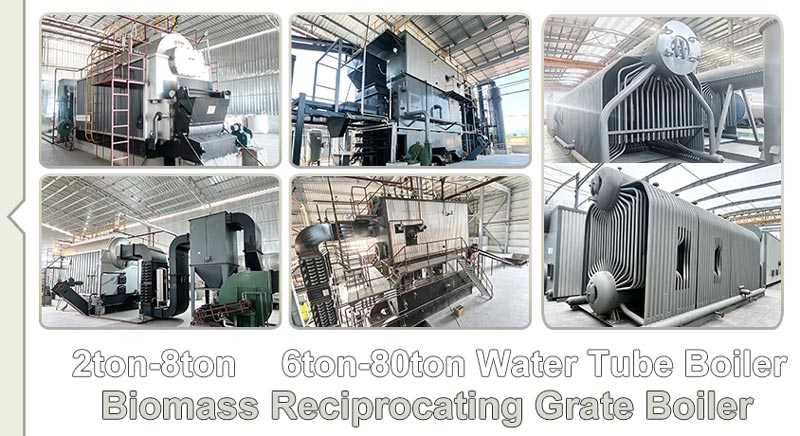

bagasse steam boiler,bagasse hot water boiler,bagasse power plant boiler

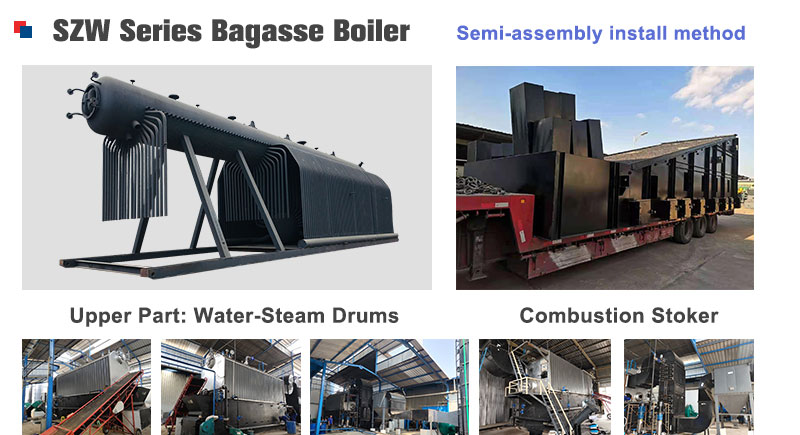

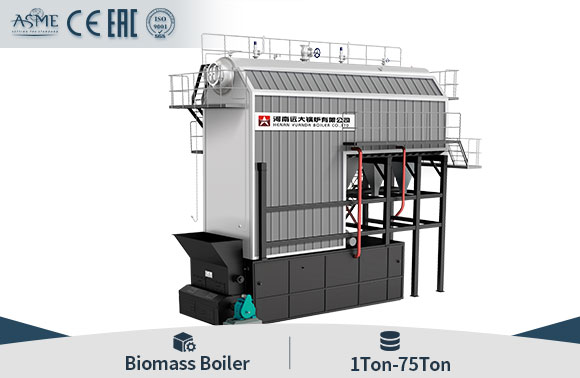

1. SZW Water Tube Bagasse Boiler

SZW series biomass bagasse boiler, thermal capacity in 2ton-50ton.

It is water tube bagasse boiler, double drums water membrane wall boiler. With large heating surface, make sure enough space for biomass burning, automatic feeding and slag removing system.

1. Cyclone chamber structure, high-temp flue gas through high-speed rotation/mixing combustion/dust separation, achieving dust removal & energy saving & environmental protection.

2. Indenpend wind chamber structure, make air regulation sensitive and make wind uniformly, resolve the wind plug, wind channeled, partial burn phenomenon.

3. Membrane water wall construction, structure advantages of high heat transfer coefficient, good heat transfer effect, low heat loss, good air tightness of furnace wall.

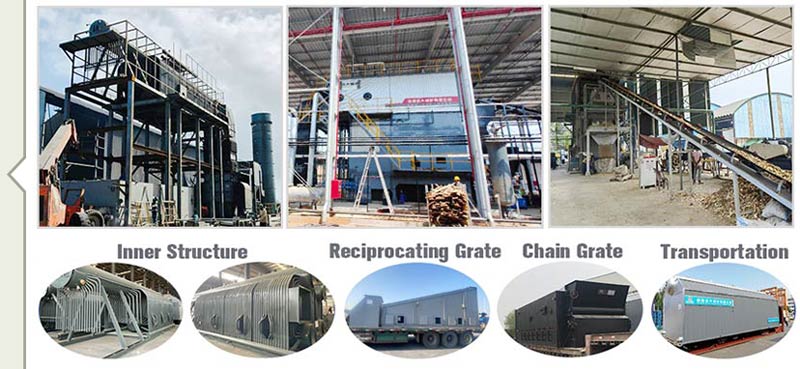

bagasse reciprocating grate boiler,szw bagasse boiler,industrial bagasse boiler

2. Single Drum Water-tube Fire-tube Boiler

DZW series biomass bagasse fired boiler, thermal capacity in 1ton-8ton.

It is single drum biomass boiler, inner water tubes & fire tubes design, automatic feeding reciprocating grate bagasse boiler, work efficiently.

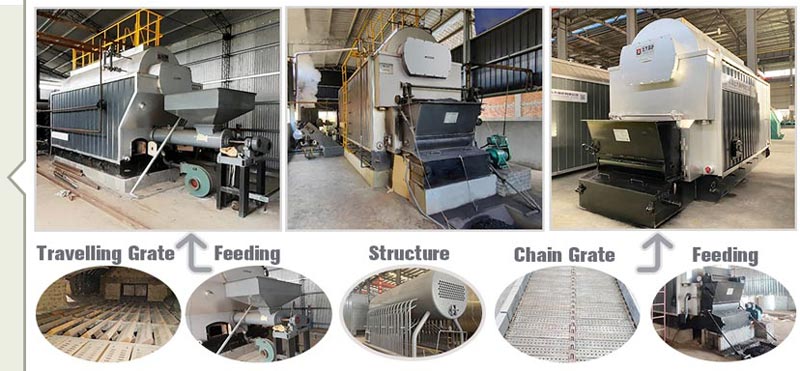

bagasse boiler china

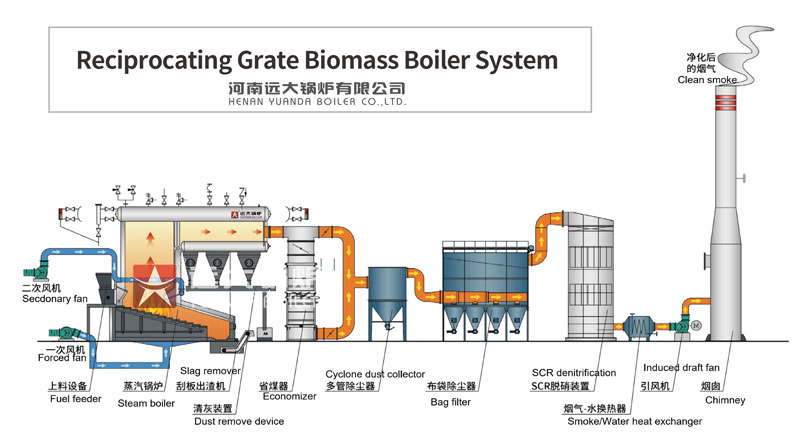

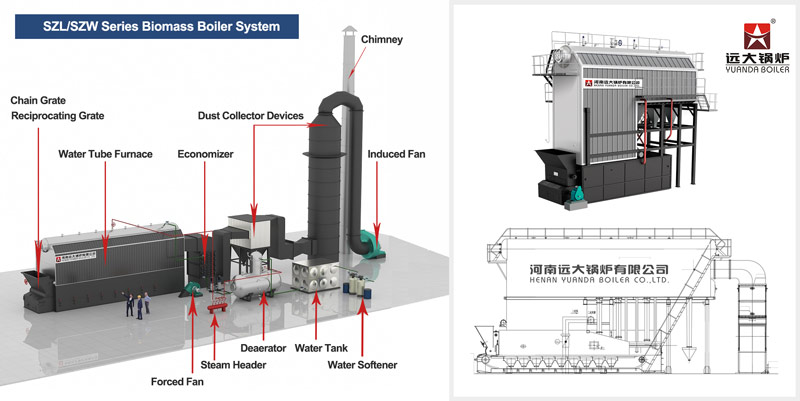

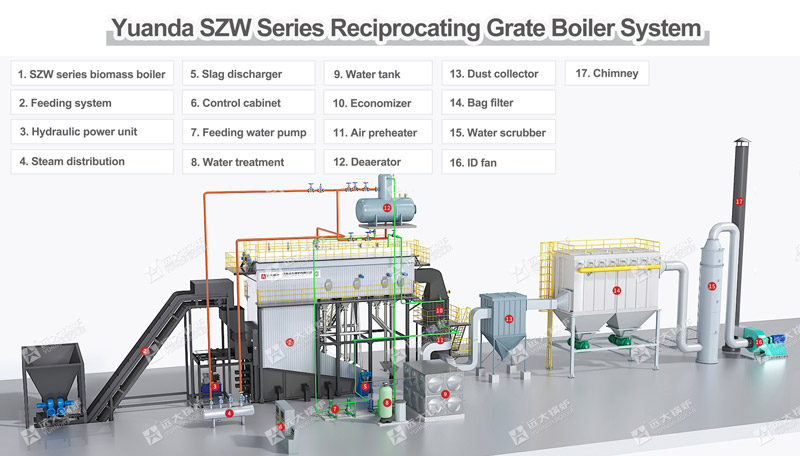

> Customized Bagasse Boiler System Diagram

If you have interested in bagasse boiler, please feel free to contact us, sending all requirements on boiler.

> About us

1. China Top Boiler Manufacturer
Established in 1956, a quality supplier assessed, certified and inspected by SGS Group
2. Fatory Located in Xihua Country, Henan Province
Integrating research&development production and sales. Support video/VR or third party factory inspection.
3. International Qualifications
High standard boiler certification CE ASME DOSH EAC GOST ISO, Best selling in 108 countries, more than 100,000 customers.
4. Mature Export Experience
More than 17 years export experience, gold medal supplier, payment and delivery guaranteed.

yuanda boiler china

Technical Parameter

SZW Series Steam Boiler Technical Parameter Table
Model Rated capacity(t/h) Rated pressure (Mpa) Rated steam temperature(℃) feed temperature(℃) Thermal efficiency(%) Boiler water volume(m³) Exhaust temperation(℃) Fuel comsumption(Kg/h) max transportation weigh(t)
SZW2 2 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >83.13 6.76 130.7 385.8 22
SZW4 4 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.23 5.1 142 807 29
SZW6 6 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.81 8.4 142 1209 34
SZW8 8 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >85.02 9.4 149.1 1563.9 40.5
SZW10 10 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.2 8.35 152.7 2149.3 24
SZW12 12 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.56 12.8 148.7 2399.7 37
SZW15 15 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.29 15.2 149.8 2568.4 24.7
SZW20 20 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.8 15.5 147.4 4266.9 26
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Our Supply Equipment List

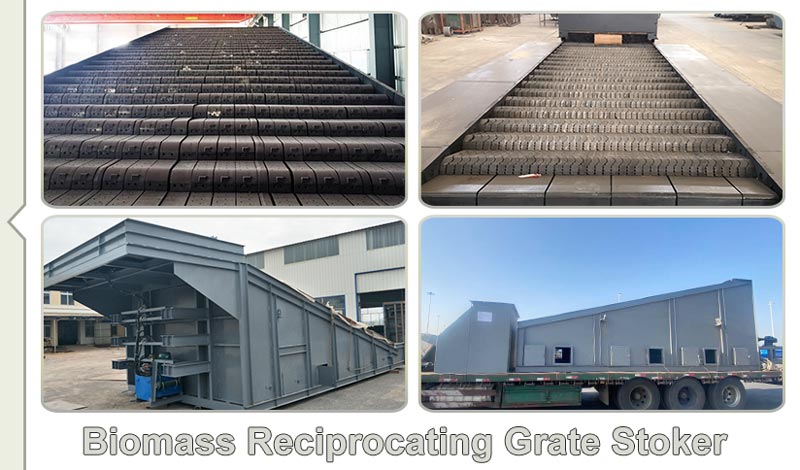

Reciprocating Grate
Grate Speed Reducer
Slag Remover

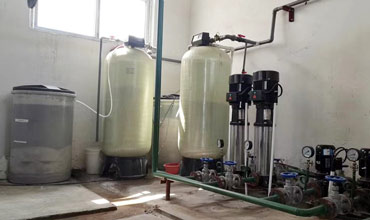

Water Treatment Device
Water Pumps
Water Tank
Deaerator
Economizer
Forced/Induced Fan
Instruments & Valves
Chimney
......

SZW Boiler Features

biomass palm shells boiler,chain grate boiler

Unique warehouse and auto feeding

The big speed bin design could control fuel transmit mass automatically according to the thermal energy, isolate flame and flue to prevent tempering
water tube biomass boiler, palm shells water tube boiler

Whole membrane water wall

Increased 50% heating area than traditional, refractory brick furnace wall will reduce weight and transport cost, improve efficiency and energy saving
automatic biomass boiler,biomass plam shell steam boiler

Security guaranteed & Automation

With a set of alarm,protection and security guaranteed, 100% safety. Control cabinet use siemens elements, trustable quality & control strictly
environmental friendly biomass boiler,water tube biomass boiler

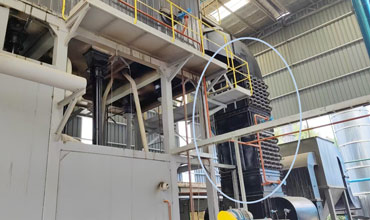

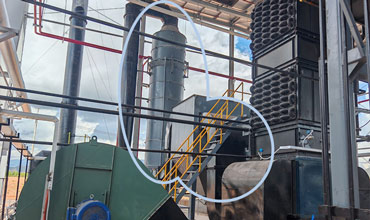

Economizer & Dust collector device

Reuse waste heat in exhaust gas, energy saving devide (economizer); Remove the dust and ash, protect envrionment and reduce pollution

FAQ of SZW Bagasse Boiler

Question: what's thermal efficiency of SZW biomass boiler?

Answer: SZL biomass boiler has higher efficiency than other old design boiler, take 10ton palm shells boiler example, thermal efficiency>86%

Question: Are there other biomass boiler models ?

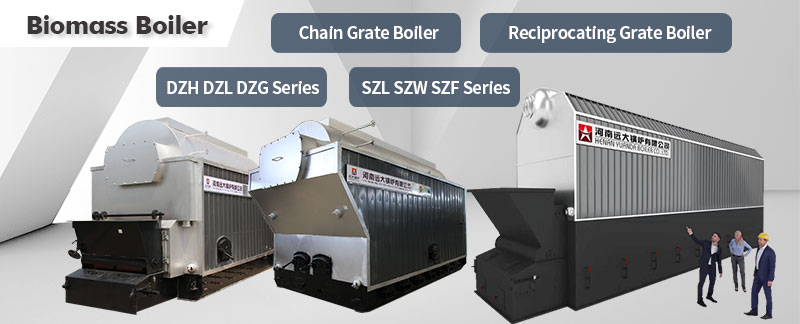

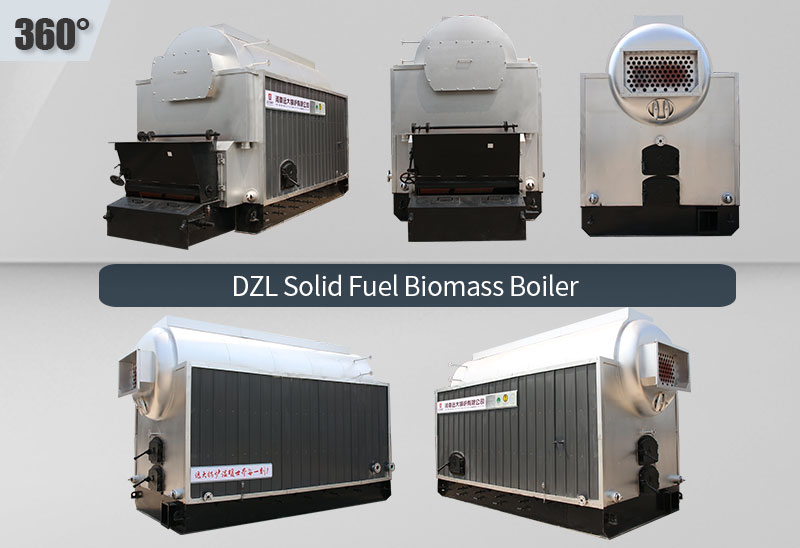

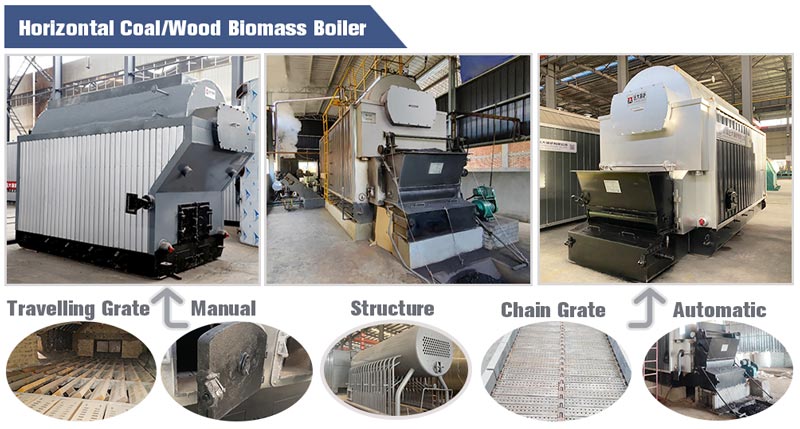

Answer: Yes, including dzl chain grate biomass boiler, dzh biomass boiler, vertical biomass boiler, chain grate boiler, reciprocating grate boiler...

Question: Do you support customized boiler service for projects?

Answer: Yes, we have technique research center team, make unique boiler solution. Tell about your requirements, let's have more discuss.

Question: Do you supply complete accessories for boiler system?

Answer: Yes, we supply all accessories such water treatment device, economizer, ID fan, forced fan, slag remover, sawdust collector...

Question: Do you supply installation services ?

Answer: Our senior engineer Mr.Gao already arrived 50+countries for boiler services. Now, we adapt online video guidance for quick services.
