Coal Biomass Fabric Waste Jute Boiler
 Capacity: |
500kg-20000kg |
 Pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Fuel: |
Waste cloth, jute, jhute, coal, biomass, wood... |
 Structure: |
Vertical or Horizontal |
| Application: |
For various industries in food, beverage, feed mill, textile, garments, textile, paper, oil mill, laundry, hotel... |
Yuanda Products:steam boiler, steam generator, hot water heater boiler, thermal oil boiler, hot air furnace
Introduction

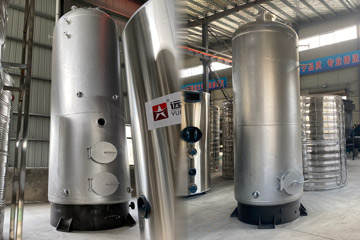

Product: Vertical Waste Jute boiler 500kg 1000kg

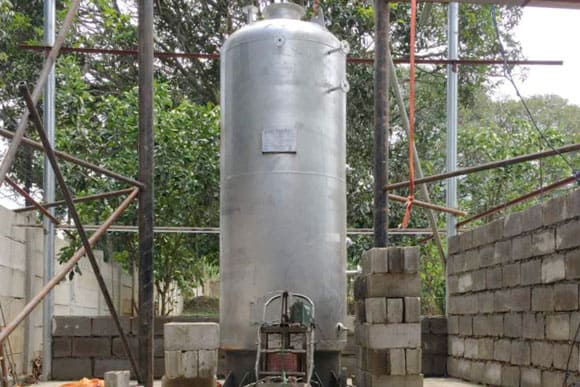

Popular used in bangladesh garments factory, small vertical type waste jute fired boiler in 300kg 500kg 1000kg.

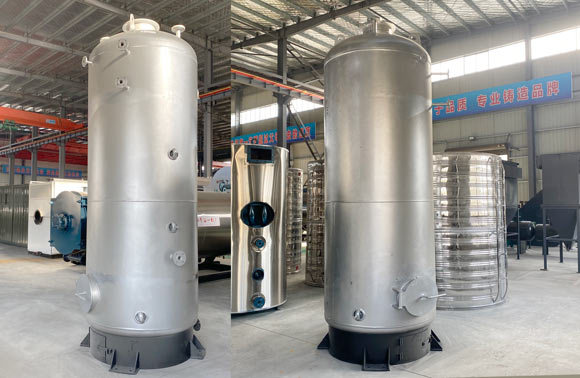

LSG series vertical jute boiler, the boiler body mainly made of U-circle, boiler drum, shell cover, furnace, horizontal water tube, vertical tube, convection tubes, pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.

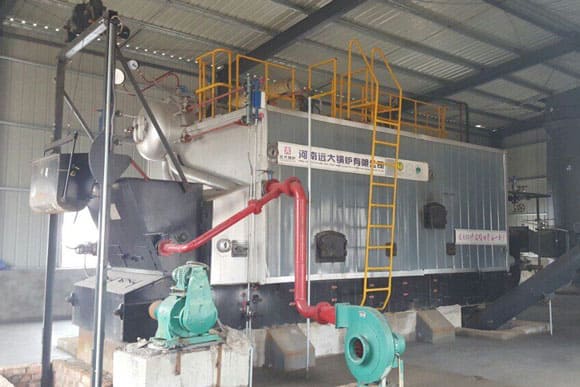

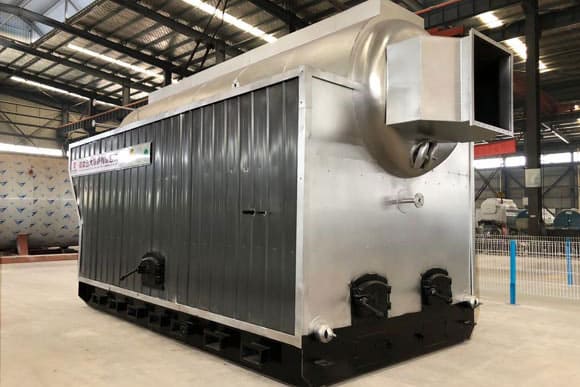

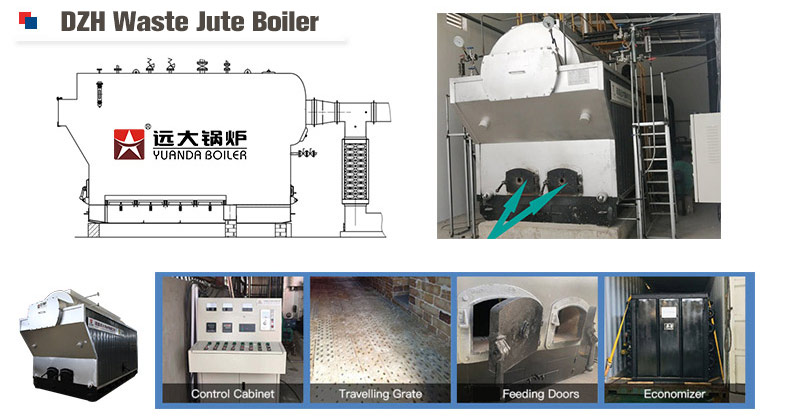

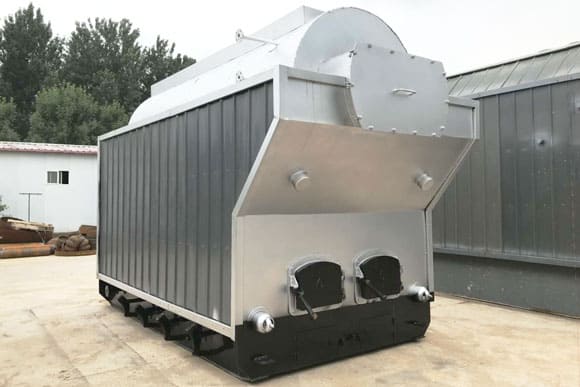

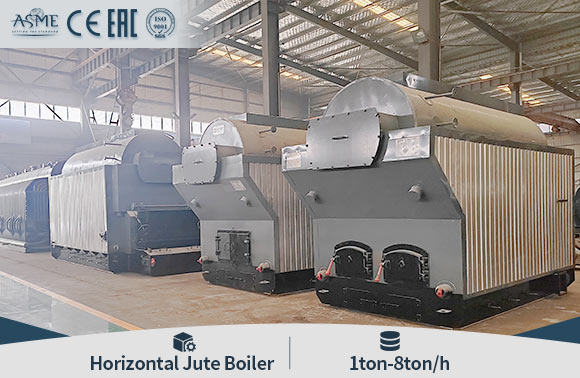

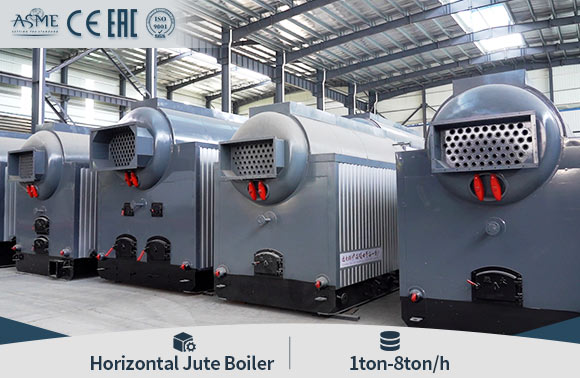

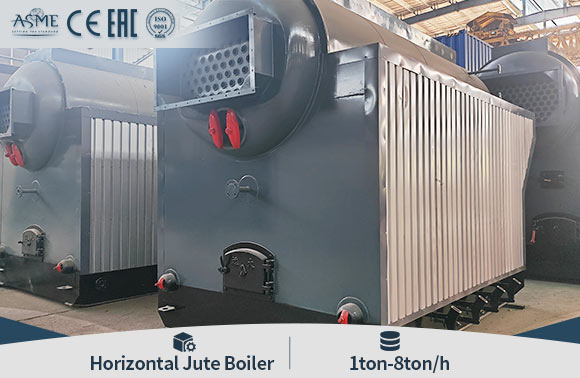

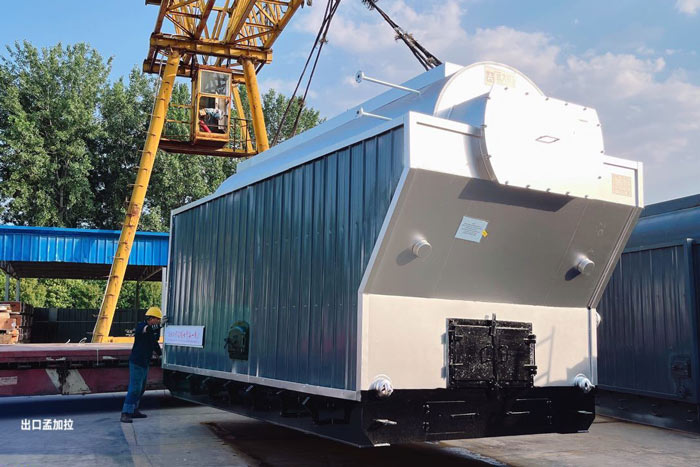

Product: DZH series Waste Jute boiler 1ton-8ton
DZH series waste jute fired boiler, popular demand on 1ton 2ton 3ton 4ton 6ton 8ton.
Manual feeding type travelling grate boiler, suitable for waste jute burning, keep stable running.

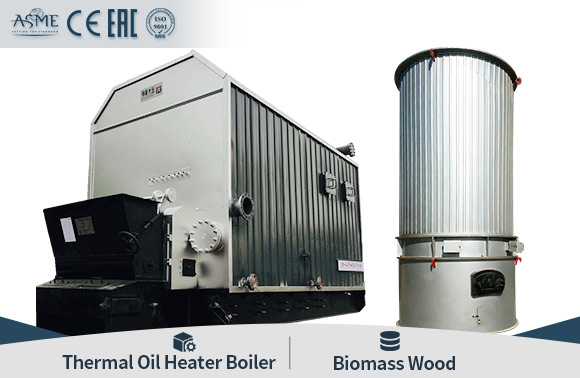

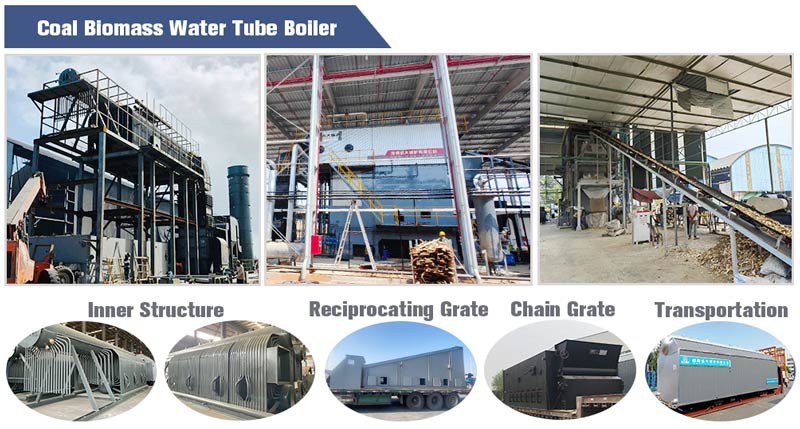

> Yuanda Coal/Biomass Boiler
0.5ton-75ton Coal/biomass steam boiler, widely for factory production heat, electricity generation.

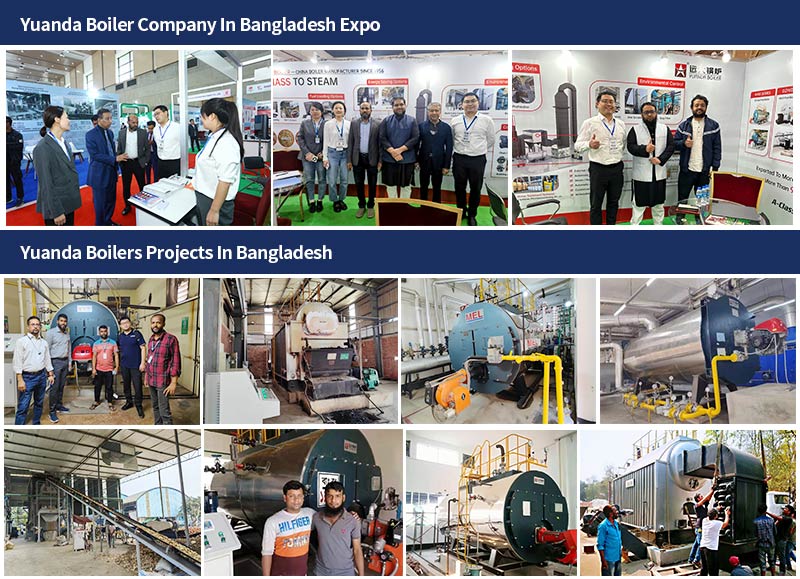

> Yuanda Boiler In Bangladesh
Good Quality: Yuanda Boiler has sold more than 200 sets boiler to Bangladesh.
Trustable Service: Professionsal boiler solutions before sale, Bangladesh agent servic support.
Long-term Cooperation: Yuanda team will arrange more than two business visits to Bangladesh every year.

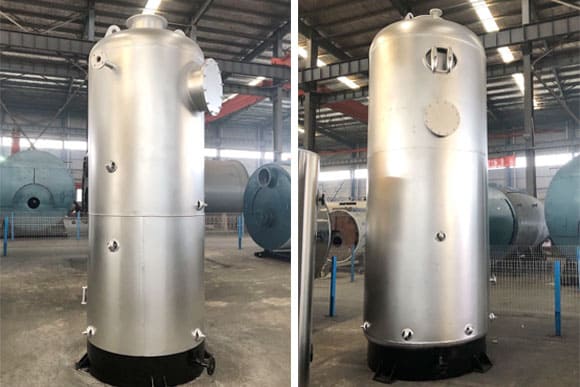

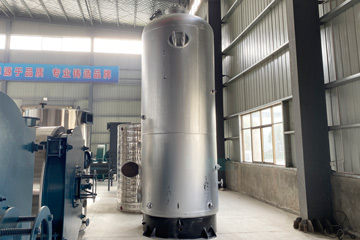

Vertical Boiler Features
Hand-Feeding Jute Boiler
LSC series vertical type boiler, help saving occupy area. Need Hand feeding waste cloth/jute combustion, easy installation & operation
Inner Water Tube Structure
Water tube jute boiler, larger heating area, make water temperature heat up quickly. Also it has low maintenance rate, low running cost

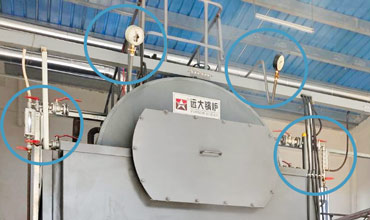

100% Safety & Easy Control
We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves
Longer Using Lifespan

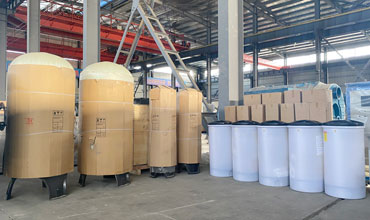

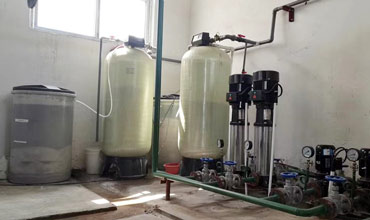

Equipped with water softener, could remove Mg+, Ca+ in water and improve water quality. Prevent hurt to boiler tube, entend the boiler using life timeTechnical Parameter
| Horizontal Jute Steam Boiler Technical Parameter Table | |||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| DZH1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZL1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 |
| DZH2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.75 | 126.41 | 386.47 | 15 |
| DZL2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.77 | 106.34 | 393.77 | 22 |
| DZH4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 |
| DZL4 | 4 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 |
| DZH6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 |
| DZL6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 |
| DZL8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Supply Boiler & Accessories
Boiler Solution
Customized for Your Biomass Fuel
Tailored boiler solutions for wood chips, rice husks, wood waste, straw, and other biomass fuels, based on fuel properties and availability.
Optimized Combustion System
Select suitable grate types, feeding systems, and combustion configurations according to fuel size, moisture content, and combustion characteristics.
Boiler Configuration & Auxiliary Equipment
Integrate suitable auxiliary equipment, flue gas treatment, and automatic control systems to improve operational efficiency and meet project requirements.
Customized Boiler Solutions for Your Application
Every industrial process has different heating requirements. Selecting the right boiler involves more than choosing a capacity.
Why Choose us
Complete Boiler Solutions – Customized boiler systems based on your required capacity, fuel type, working pressure, and application.
International Certifications – Manufacturing capabilities supported by ASME, ISO 9001, CE PED, EAC, DOSH, and CRN certifications, as applicable to the specific model and market.
Global Project Experience – Boiler equipment supplied to over 135 countries and regions, with installation and commissioning services completed in more than 60 countries.
Direct Manufacturer Support – Professional technical assistance from project consultation and equipment selection to installation and after-sales service.
Henan Yuanda Boiler Corp Ltd
We are a fully integrated manufacturer specializing in the design, engineering, manufacturing, installation, and after-sales service of industrial boilers and incinerators. Our products are available with internationally recognized certifications, including ASME, CE PED, ISO 9001, EAC, DOSH, and CRN.
With nearly 70 years of manufacturing experience and more than 20 years of export expertise, we supplied industrial heating equipment to over 135 countries and regions across Asia, Europe, Africa, North America, South America, and Oceania.
