Palm Oil Mill Boiler
 Capacity: |
0.5 ton-80 ton hour |
 Fuel: |
Biomass, Palm Kernel Shells, Palm Fiber, Empty Fruit Bunch, Wood, Coal, Oil, Gas, Electricity |
 Steam Pressure: |
0.1 mpa-4.5 mpa |
 Boiler Solution For: |
Palm Oil Mill 10 TPH to 200 TPH |
| Certificates: |
ISO CE ASME EAC DOSH |
Steam Boiler:designed for palm oil mills with processing capacities ranging from 10 TPH to 200 TPH Fresh Fruit Bunches (FFB)
Introduction

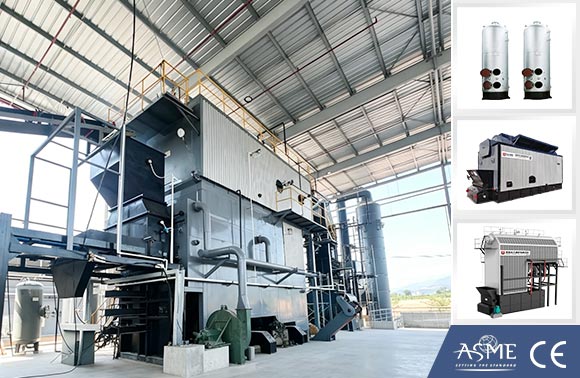

Palm Oil Mill Boiler
steam boiler system to support every stage of palm oil production, including sterilization, digestion, pressing, clarification, kernel recovery, and power generation.
Fuel: diesel oil gas, coal, wood, biomass, electricity
Low Cost Biomass Boiler
Industrial Biomass Boiler – designed for factory processes and power generation.
Fuel: Palm kernel shells, palm fibre, EFB, ricehusk, coconuts, coal, wood, biomass
1ton-10ton Biomass Boiler
Optional: chain gate, travelling grate, reciprocating grate stoker.
Horizontal coal/biomass water-tube & fire-tube boiler, customized automatic or manual feeding system design, high combustion efficiency for wood biomass, less consumption cost.

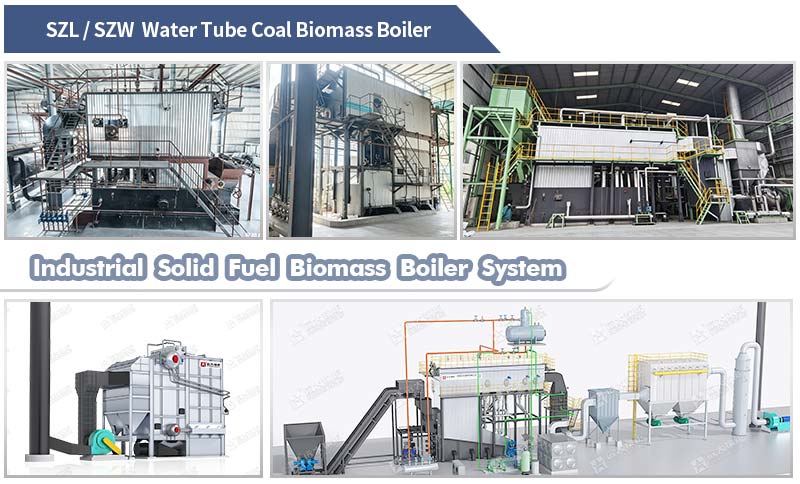

6ton-75ton Water Tube Biomass Boiler
Capacity: 4ton-60ton
SZL SZW series coal biomass fired water tube boiler with double drums. water membrane wall design boiler. larger combustion furnace.

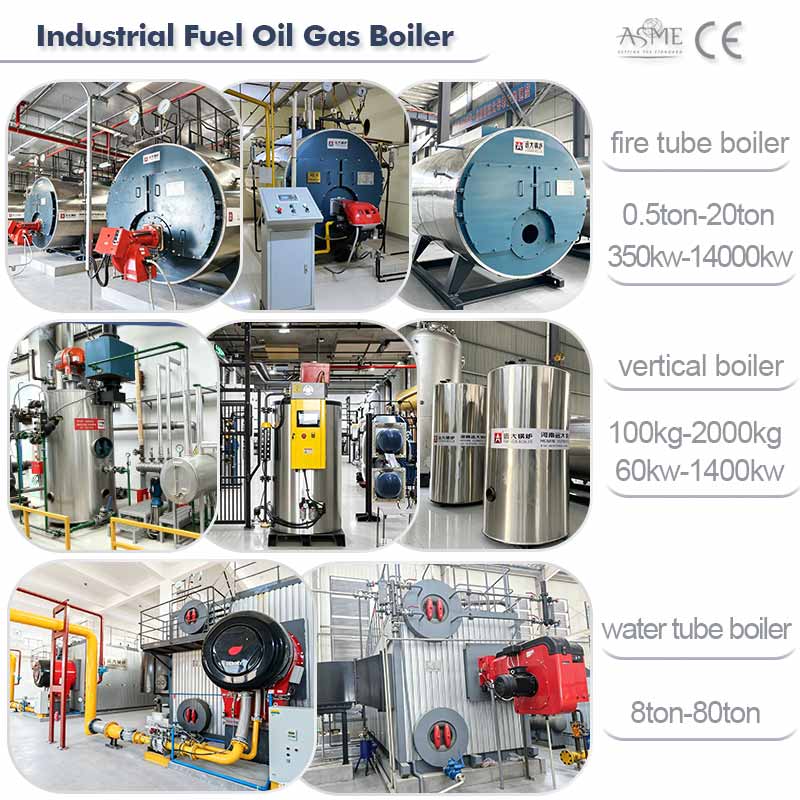

Related: Oil Gas Fired Boiler
(Fuel options: gas, lpg, biogas, diesel, heavy fuel oil, waste oil )
Capacity: 0.1ton-80ton

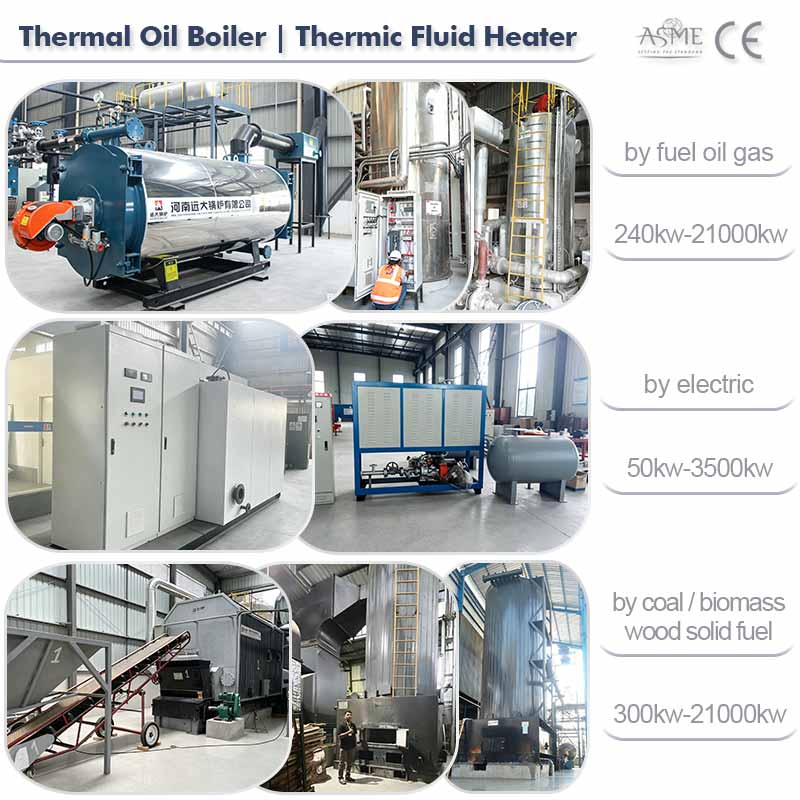

Related: Thermal Oil Boiler
Fuel: diesel, gas, heavy fuel oil, wood, biomass, coal, electricity
Thermal oil heater boiler (thermic fluid heater), heat temperature 200°C 250°C 300°C 350°C, widely used in textile, bitumen, plywood, asphalt, plastics, foods, heating tanks, heating crude oil, oil refinery.....
Biomass Boiler
Chain Grate / Reciprocating Grate
Fitted with either a chain grate or reciprocating grate, suitable for various types of solid fuels such as coal, biomass, or wood, ensuring full combustion and stable performance.
Water Softener
A complete water treatment system is included to remove hardness and prevent scale formation, protecting the boiler and improving efficiency.
Dust Collector System
Available with bag filter or marble water film dust collector, effectively removing smoke and dust particles, reducing emissions, and meeting environmental standards.
Economizer for Energy Saving
Equipped with a high-efficiency economizer to utilize waste heat from flue gas, reduce fuel consumption, and improve overall thermal efficiency.Technical Parameter
| SZL Series Biomass Boiler Technical Parameter Table | |||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| SZL2 | 2 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞83.13 | 6.76 | 130.7 | 385.8 | 22 |
| SZL4 | 4 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞84.23 | 5.1 | 142 | 807 | 29 |
| SZL6 | 6 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞84.81 | 8.4 | 142 | 1209 | 34 |
| SZL8 | 8 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞85.02 | 9.4 | 149.1 | 1563.9 | 40.5 |
| SZL10 | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.2 | 8.35 | 152.7 | 2149.3 | 24 |
| SZL12 | 12 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.56 | 12.8 | 148.7 | 2399.7 | 37 |
| SZL15 | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.29 | 15.2 | 149.8 | 2568.4 | 24.7 |
| SZL20 | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.8 | 15.5 | 147.4 | 4266.9 | 26 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Supply Boiler & Accessories
Boiler Solution
Customized for Your Biomass Fuel
Tailored boiler solutions for wood chips, rice husks, wood waste, straw, and other biomass fuels, based on fuel properties and availability.
Boiler Consumption Cost
Tell us your required boiler capacity, fuel type, operating pressure, daily operating hours, and local fuel price. Our team can help evaluate suitable boiler options and estimate operating costs based on your project conditions.
Customized Boiler Solutions for Your Application
Every industrial process has different heating requirements. Selecting the right boiler involves more than choosing a capacity.
Boiler Configuration & Auxiliary Equipment
A complete boiler system involves more than the boiler itself. Auxiliary equipment may include feedwater pumps, water treatment systems, economizers, burners, dust collectors, and automatic control systems...
