Industrial Boiler for Textile Industry
 Fuel: |
Electric, Diesel, Gas, Hfo, Coal, Wood, Biomass |
 Capacity: |
100kg-60,000kg 0.1ton-60ton |
 Heating: |
60kw-21000kw |
 Thermal Efficiency: |
85% – 98% |
| Application: |
textile production (dyeing, printing, finishing) |

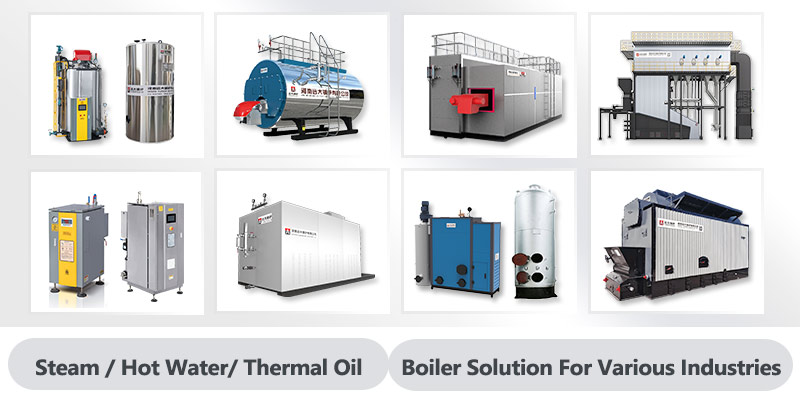

Yuanda Products:Steam Generator, Steam Boiler, Thermal Oil Boiler, Hot Water Boiler
Introduction

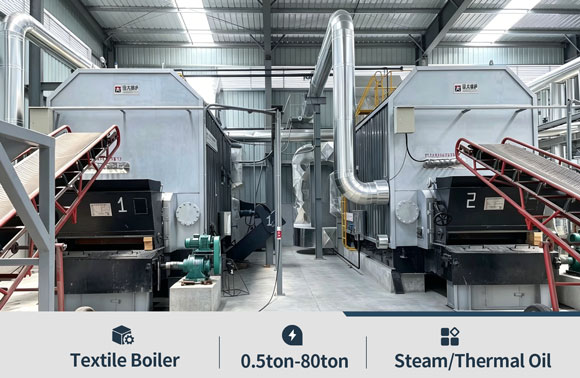

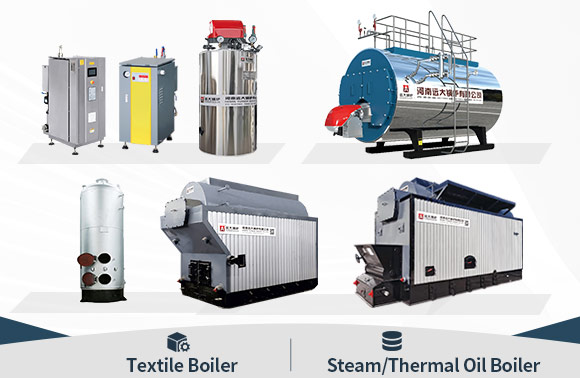

Textile Boiler
Textile industry requires stable steam supply, precise temperature control, and continuous operation efficiency. Our textile boiler systems are specially designed for textile factories, garment processing plants, dyeing mills, and fabric finishing industries.
We provide complete steam boiler and thermal oil boiler solutions for textile production lines worldwide.
Textile Industry Applications
1. Steam boilers are widely used in:
Fabric dyeing machines
Textile printing lines
Cloth washing systems
Ironing and finishing equipment
Yarn processing
Garment production
Drying and heat setting
Humidification systems
2. Thermal oil heaters are suitable for:
High-temperature textile drying
Stenter machines
Coating production lines
Resin finishing processes

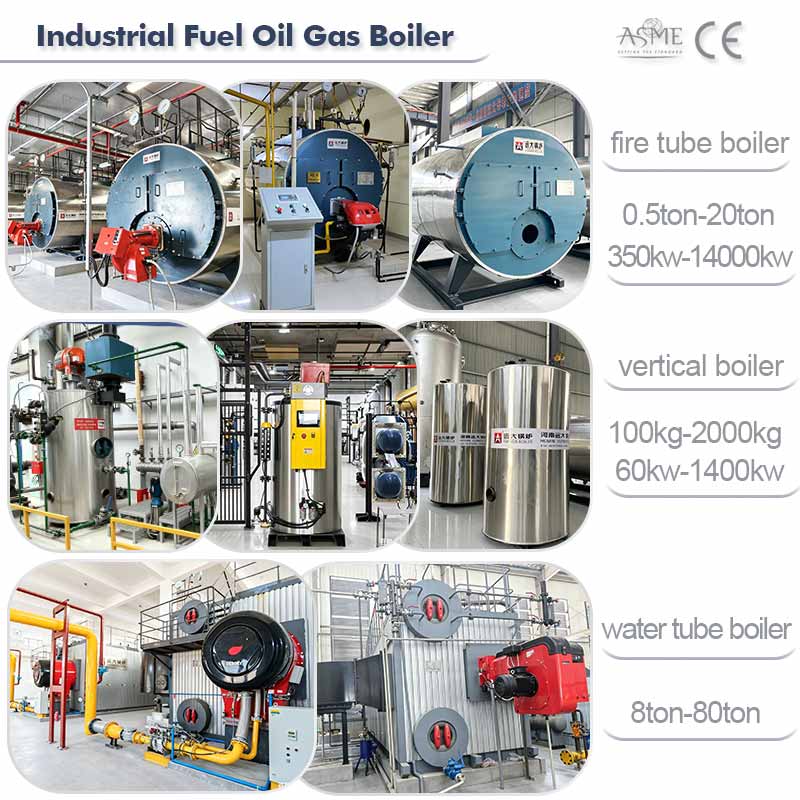

Most Popular-Oil Gas Fired Boiler
(Fuel options: gas, lpg, biogas, diesel, heavy fuel oil, waste oil )
Small Oil Gas Boiler
Vertical diesel/gas fired boiler, small boiler for small scale industries processing and hot water system.
Capacity: 100kg 200kg 300kg 500kg 700kg 1000kg 1500kg 2000kg, 100kw to 1400kw

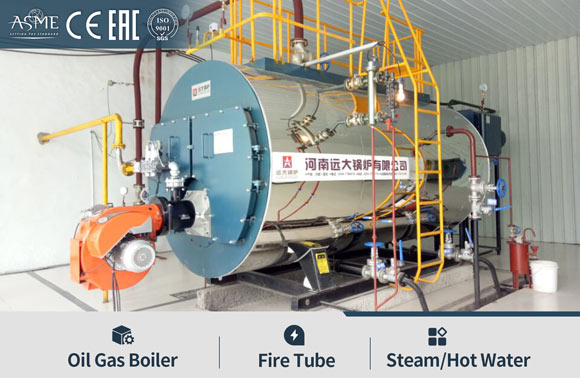

Horizontal Oil Gas Fire Tube Boiler
Horizontal oil-fired gas-fired boiler, fire tube boiler, three pass boiler, high thermal efficiency & energy saving boiler.
Capacity: 500kg 1000kg 1500kg 2000kg 3000kg 4000kg 5000kg 6000kg 8000kg 10ton 12ton 15ton 20ton, 350kw to 14000kw
Water Tube Oil Gas Boiler 8ton-80ton
Horizontal double drums water tube boiler, adopts water membrane wall structure, larger combustion furnace, higher thermal efficiency.

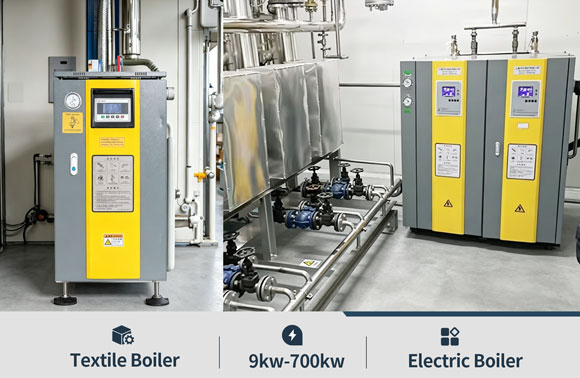

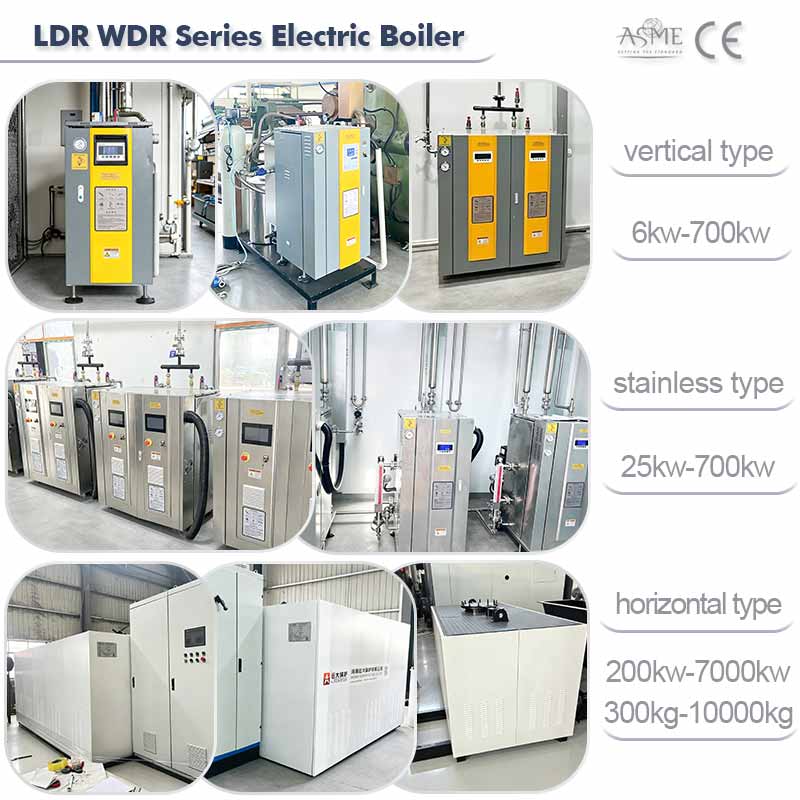

Poduct: Electric Boiler
Capacity: 9kw to 7000kw, 13kg to 10000kg
1. Vertical electric boiler (electric steam generator, electric boiler, electric hot water boiler). Small unit, portable type, plug and play.
2. Horizontal electric boiler (electric steam boiler, electric hotwater boiler), fully-automatic running, no pollution, larger thermal capacity.

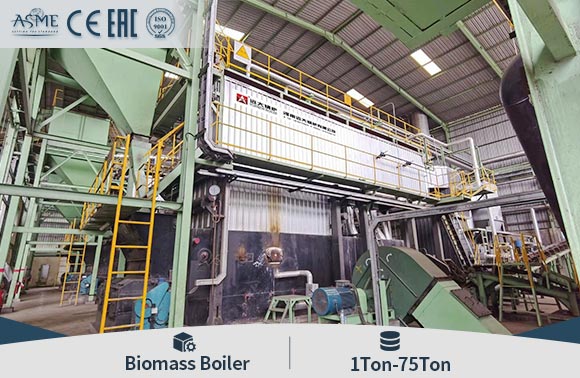

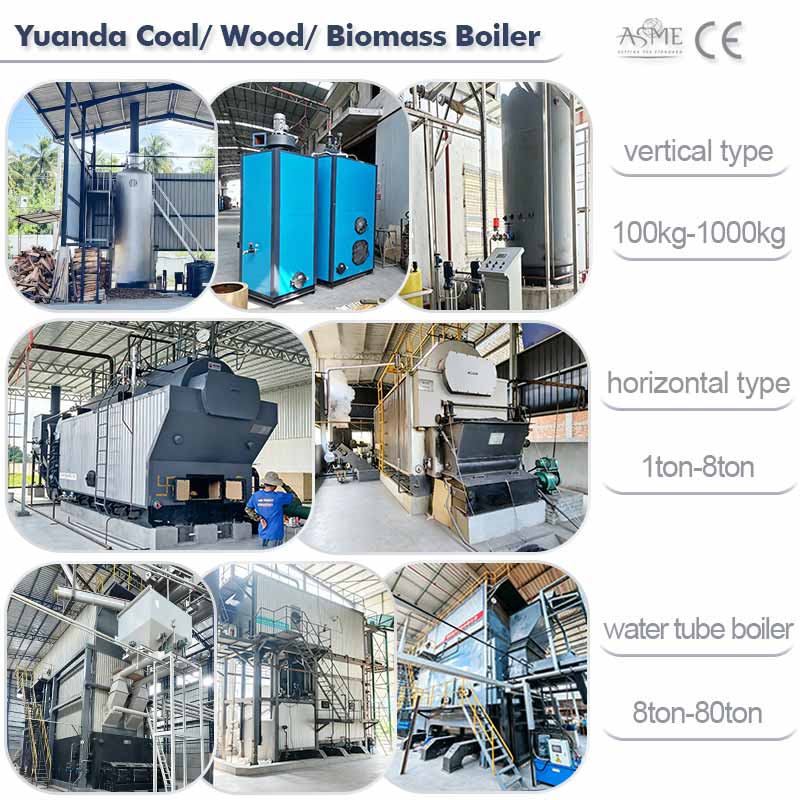

Product: Coal Wood Biomass Boiler
Industrial Solid Fuel Boiler – designed for factory processes and power generation, providing reliable energy for heating, drying, and industrial applications.
Fuel: coal, wood, biomass, bagasse, rice husk, palm kernel shells, cashewnut shells, coconut shells...)
① Vertical Coal Biomass Boiler
LHS LSS Series Vertical Solid Fuel Boiler
Capacity: 100kg-2000kg, 40kw-1400kw
Vertical coal biomass fired steam/hot water boiler, widely use in industrial heating system, small factory production heating drying, commercial laundry.

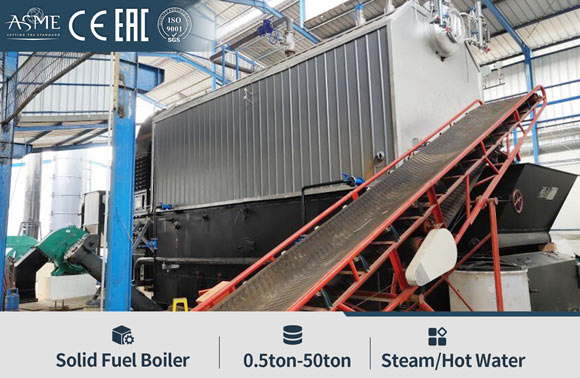

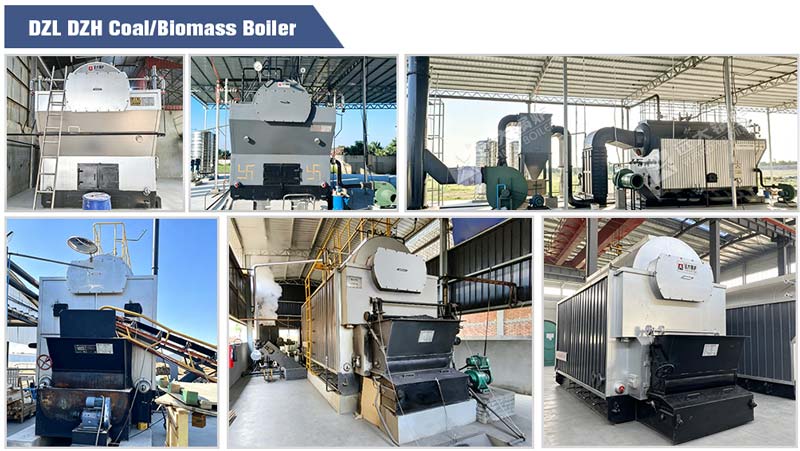

② Industrial Coal Biomass Boiler
Capacity: 0.5ton-40ton
Optional: chain gate, travelling grate, reciprocating grate stoker.
Horizontal coal/biomass water-tube & fire-tube boiler, customized automatic or manual feeding system design, high combustion efficiency for wood biomass, less consumption cost.

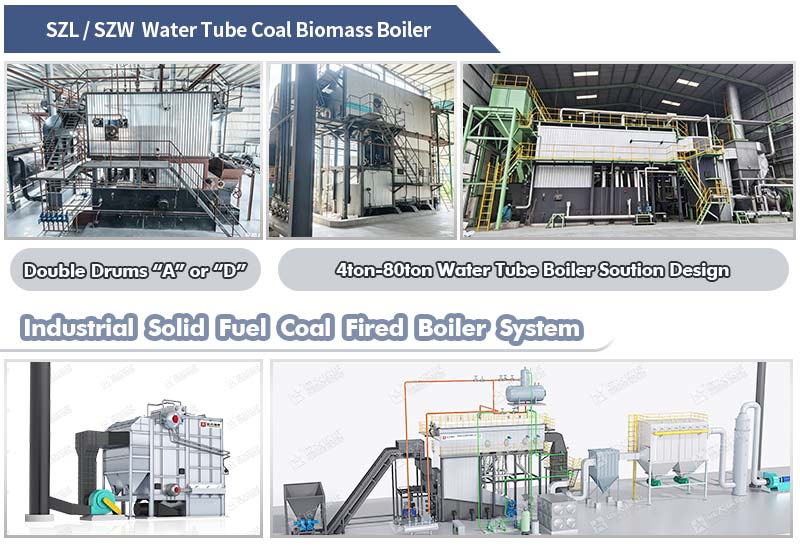

③ Water Tube Coal Biomass Boiler
Capacity: 4ton-60ton
SZL SZW series coal biomass fired water tube boiler with double drums. water membrane wall design boiler. larger combustion furnace.

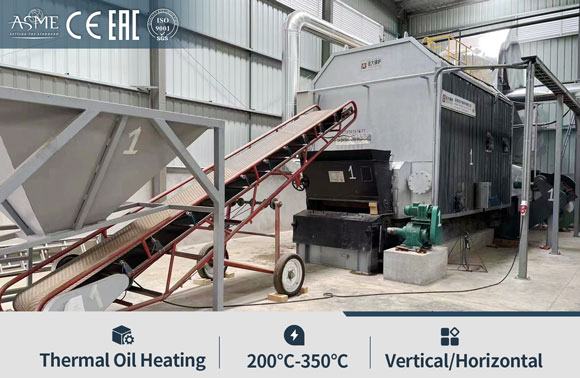

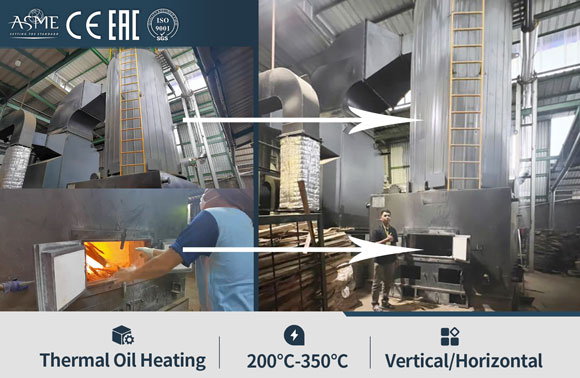

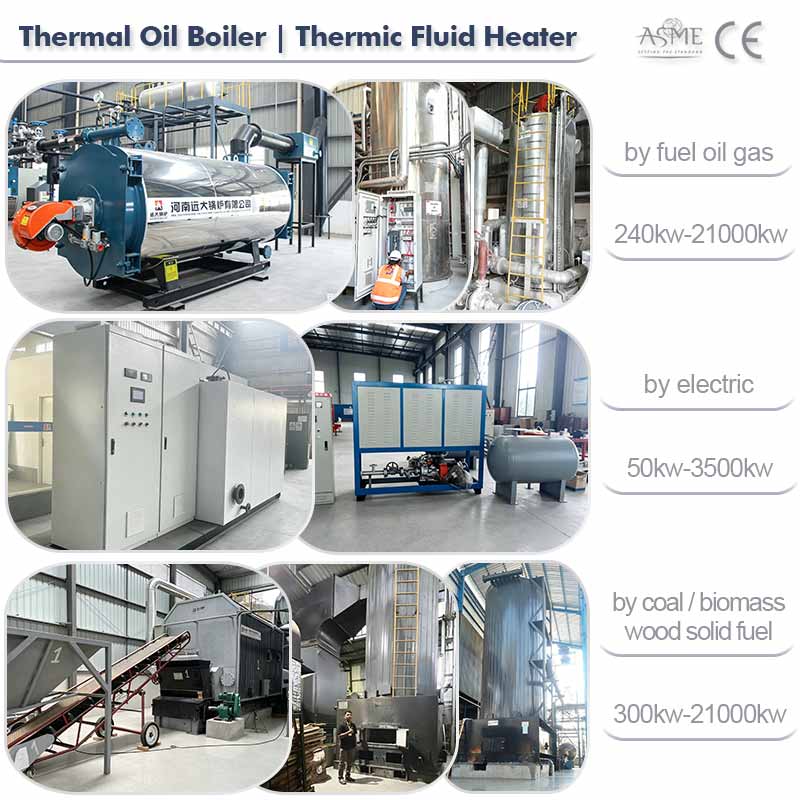

Product: Thermal Oil Boiler
Fuel: diesel, gas, heavy fuel oil, wood, biomass, coal, electricity
Thermal oil heater boiler (thermic fluid heater), heat temperature 200°C 250°C 300°C 350°C, widely used in textile, bitumen, plywood, asphalt, plastics, foods, heating tanks, heating crude oil, oil refinery.....
Boiler Manufacturing and Inspection
Certified Manufacturing Standards
All boilers are designed and manufactured under ASME, CE, and ISO certifications, ensuring full compliance with international pressure vessel and safety standards.
Strict Quality Control System
From raw material selection to welding, assembly, and hydrostatic testing, every process is strictly monitored. Each boiler is 100% inspected and tested before delivery.
Factory Audit and Third-Party Inspection Support
Welcome customers and authorized agencies to conduct factory inspections (audit) and witness testing. Third-party inspections such as SGS, BV, or TUV.
Experienced Technical Team
With 69 Years boiler manufacturing experience since 1956, our skilled engineers and technicians ensure each unit meets the highest performance and safety standards.Technical Parameter
| Oil Gas Steam Boiler | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5-1.0/1.25/1.6-YQ | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1-1.0/1.25/1.6-YQ | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8-1.0/1.25/1.6/2.5-YQ | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10-1.0/1.25/1.6/2.5-YQ | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15-1.0/1.25/1.6/2.5-YQ | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20-1.0/1.25/1.6/2.5-YQ | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Boiler Accessories
About us
Yuanda Products
steam boiler, steam generator, hot water boiler, thermal oil heater boiler, hot air furnace, waste incinerator.
Various Structure
vertical, horizontal, fire tube boiler, water tube boiler, coils heater boiler, water membrane wall structure, sing drum, double drum...
Application
widely in all industries productions heating drying process, building central heating system, electricity generation.
About us
Yuanda Boiler Company established in 1956, qualified by ISO, CE, ASME, EAC, DOSH, and CRN, ensuring safety, reliability, and quality.
Yuanda Service
We provide tailored boiler solutions. Our team shares catalogues, evaluates your working conditions, and recommends the most suitable model for your needs.
✅ Design & Manufacture
Customized boiler design and system diagram. High-standard manufacturing with strict quality control, certified by ISO, CE, ASME, and more.
✅ Boiler Foundation Preparation
Complete foundation drawings, piping layout, and operation documents to ensure smooth installation and operation.
✅ Engineer Service
On-site guidance for installation and commissioning. Professional training for operators to ensure safe and efficient boiler operation.
✅ After-Sales Support
24/7 online technical assistance, spare parts supply, and regular maintenance services — ensuring long-term reliable performance.
