High/Low Pressure Boiler
 Product Brand: |
Yuanda |
 Product Model: |
Vertcal/Horizontal, Fire Tube/Water Tube Boiler |
 Available Fuel: |
Gas lpg oil, Electric Coal biomass wood ricehusk PKS |
 Available Industries: |
Use For Factory Processing Or Electricity Generation, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |

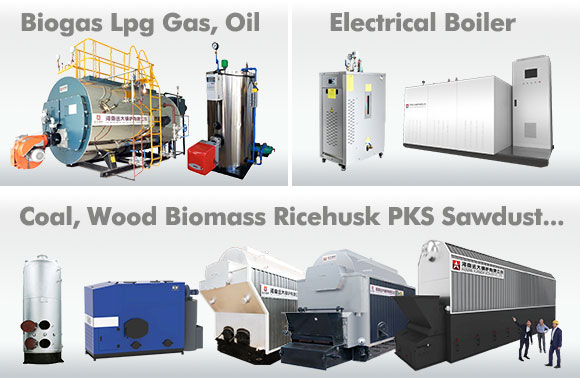

Yuanda Products:#Lpg-Gas-Boiler #HFO-Diesel-Boiler #Electric-Boiler #Wood-Boiler #Biomass-Boiler #Coal-Boiler #Charcoal-Briquette-Boiler
Introduction
High-pressure Low-pressure Steam Boiler
Pressure Salce in 1bar-38bar 0.1mpa-3.8mpa 15psi-550psi
Fuel options: GAS LPG DIESEL BIOGAS, ELECTRICITY, COAL, WOOD BIOMASS

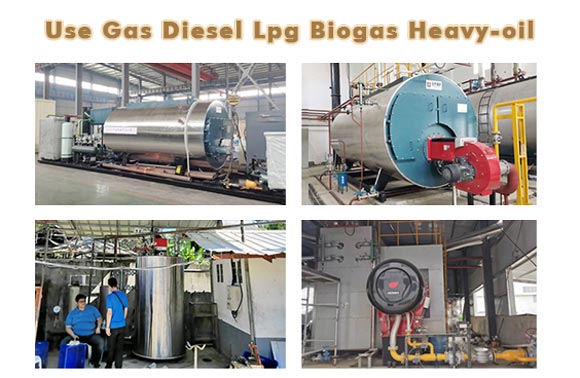

Most Popular --- Gas Diesel Steam Generator Boiler
1. Vertical Type: 100kg-2000kg LHS small gas/oil boiler, vertical type burner boiler, suitable for small factorys processing.
2. Horizontal Type: 0.5ton-50ton WNS horizontal boiler, fire tubes & wet back & corrugated furnace makes efficiency higher.

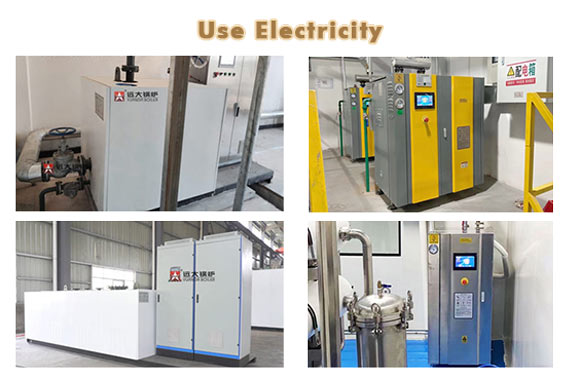

No Pollution Electric Steam Generator Boiler
LDR series 12kg-500kg/hour electric steam generator boiler, Once connect electricity power and water, steam boiler into run quickly.
WDR series horizontal electric steam generator boiler 500kg-5000kg/hour, fully-automatic running machine, clean energy, no pollution, high-tech boiler.

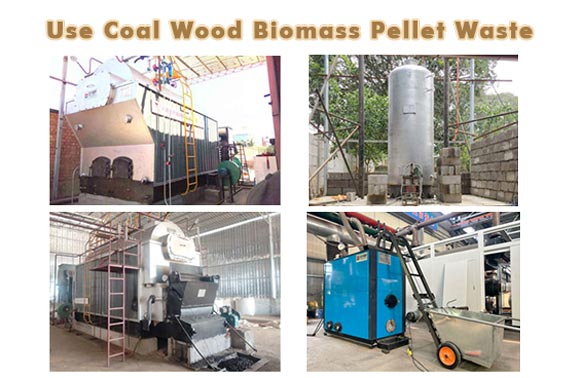

Low Cost Boiler --- Biomass/Wood Boiler
Available fuel: coal, wood, biomass, bagasse, ricehusk, palm shells, sawdust, coconuts, pellets, solid waste.
We manufacture steam boiler & hot water boiler. Supply steam/hotwater used in factory productions line, steam for electricity generation.
Thermal capacity in 100kg-50000kg, 100kw-35000kw, 30hp-3000hp.
> How to Choose A Suitable Boiler
1. Basic Boiler Information For Your Project
Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
Heat medium options: saturated/superheated steam, hot water, thermal oil.
Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
Layout options: Vertical boiler, Horizontal boiler.
Operating-mode options: Automatic, manual
Note: please feel free to send all requirements, we could help you better.
2. Calculating Running Cost
Specific consumption analysis report
Different types boiler running consumption comparison analysis report
(Note: Report is based on your local energy source price)
3. Boiler Accessories (essential or optional)
Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.
Note: Any special request, please send all details.
Technical Parameter
| Gas Oil Fired Steam Boiler Technical Parameter | |||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated pressure (Bar) | Rated temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5 | 0.5 | 1.0/1.25/1.6 | 10/13/16 | 184/194/204 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | 1.0/1.25/1.6 | 10/13/16 | 184/194/204 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 10/13/16 | 184/194/204 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3 | 3 | 1.0/1.25/1.6 | 10/13/16 | 184/194/204 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4 | 4 | 1.0/1.25/1.6 | 10/13/16 | 184/194/204 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6 | 6 | 1.0/1.25/1.6 | 10/13/16 | 184/194/204 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8 | 8 | 1.0/1.25/1.6/2.5 | 10/13/16/25 | 184/194/204/226 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10 | 10 | 1.0/1.25/1.6/2.5 | 10/13/16/25 | 184/194/204/226 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15 | 15 | 1.0/1.25/1.6/2.5 | 10/13/16/25 | 184/194/204/226 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20 | 20 | 1.0/1.25/1.6/2.5 | 10/13/16/25 | 184/194/204/226 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Our Supply Equipment List
Global Sale & Service
Yuanda Company Since 1956
China Leading Manufacturer For Steam Boiler, Hot Water Boiler, Thermal Oil Boiler. Global Sales Cover 132 Countries & Regions, With ISO CE ASME DOSH EAC.
Professional Technican Support
With 68 years manufacture experience, Yuanda Boiler has abundant experience on customizied solution for projects, one to one service.
15Years Export Experience
Mature boiler export experience, do not need warry about the import formalities. Professional sales manager will serve you all the time.
Trustable Engineer Services
Yuanda senior engineers are able to customers' site for service. In many countires, we have some partner companies that can help install boilers.FAQ of Steam Boiler
What are the available fuel for boiler?
Including gas, lpg, diesel, heavy oil, CNG, dual fuel, electricity, coal, biomass, wood, waste fuel, bagasse, husk, ricehusk, coconuts, palm shells,exhaust gas...
Can you make customized boiler design according our request?
Yes, we have experienced engineer service team, will give our best economic and energy-saving design boiler. You need send your requirments to us, then we will give our response within 24 hours.
Accept steam boiler, do you also have other machine?
We produce and supply boiler and other machine, such hot water boiler, thermal oil heater boiler, steam generator, steam turbine, exhaust waste gas boiler, rice milling machine, oil extraction machine...
