Steam Generator Boiler
 Product Brand: |
10kg-20000kg/hour, 9kw-14000kw |
 Product Model: |
Vertical or Horizontal Type |
 Available Fuel: |
Gas diesel lpg, electricity, wood biomass pellets |
 Available Industries: |
Steam Generation for all industries processing or electricity generation. in foods, dairy, brewery, laundry, feedmill, garments, packaging, chemical use, hotel, etc. |
Yuanda Products:#Steam-Boiler #Hot-Water-Boiler #Steam-Generator #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Exhaust-gas-boiler
Introduction

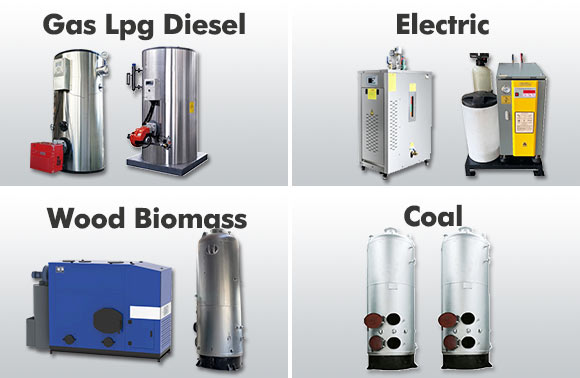

STEAM GENERATOR & STEAM BOILER
1. Electric Steam Generator
2. Gas/Diesel/Lpg Steam Generator
3. Biomass Wood Steam Generator
4. Waste Heat Recovery Steam Generator (Exhaust Gas Steam Generator)
Noted: Please send your requirements, then we could give recommend accordingly.

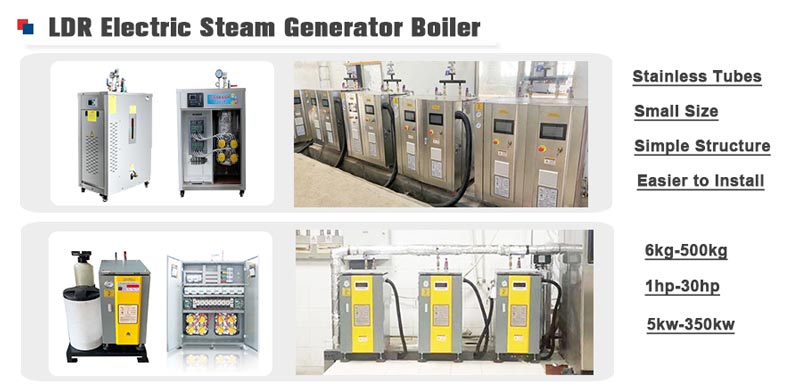

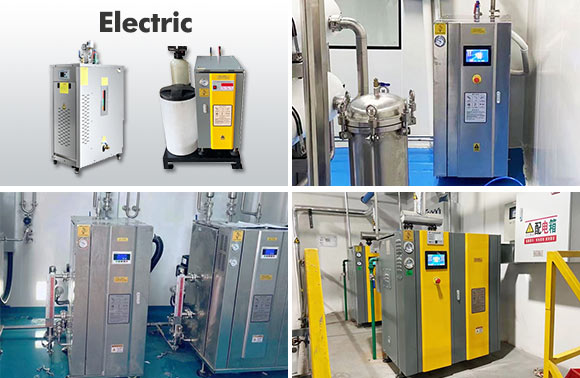

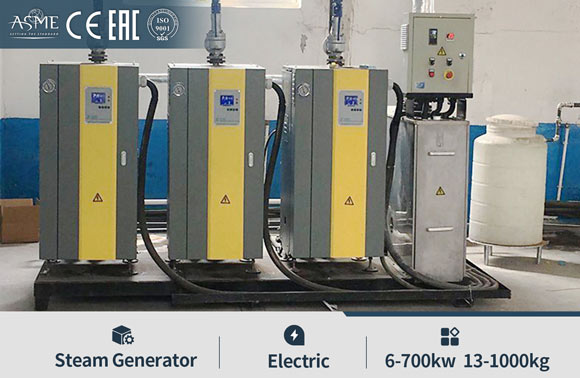

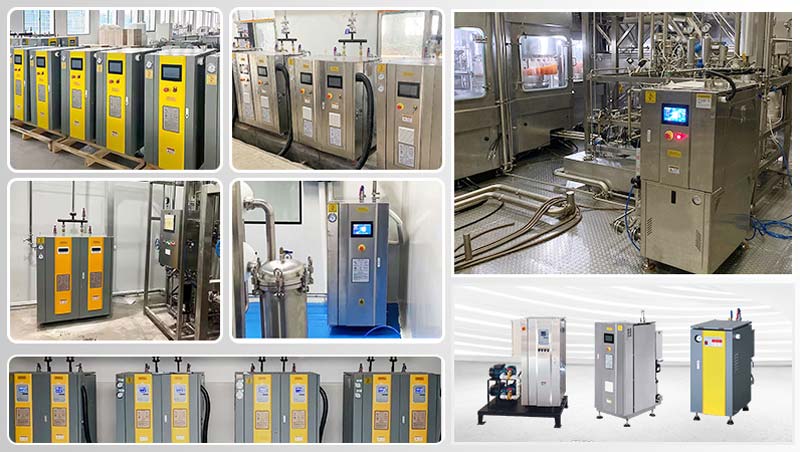

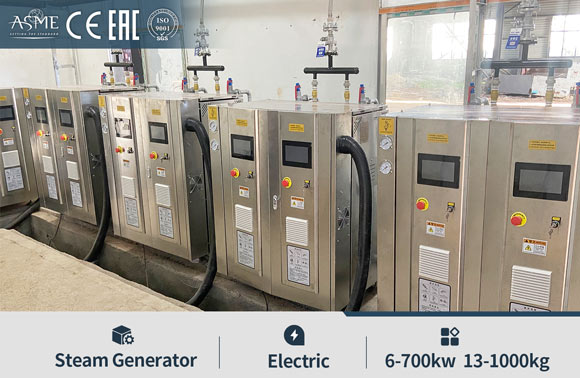

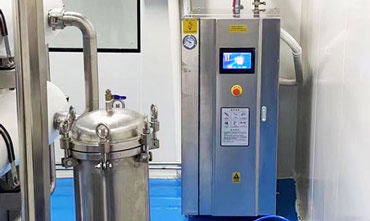

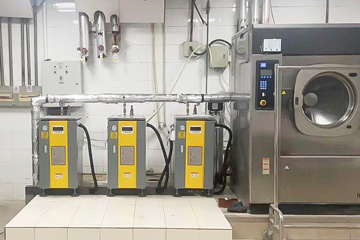

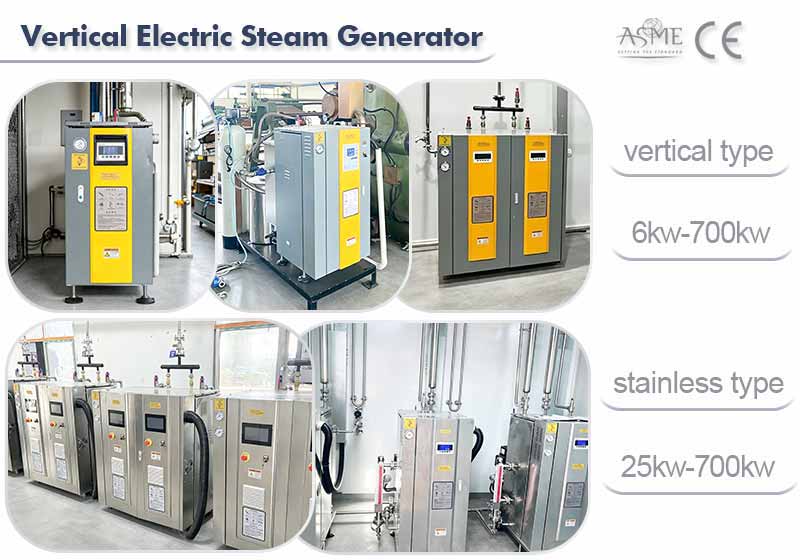

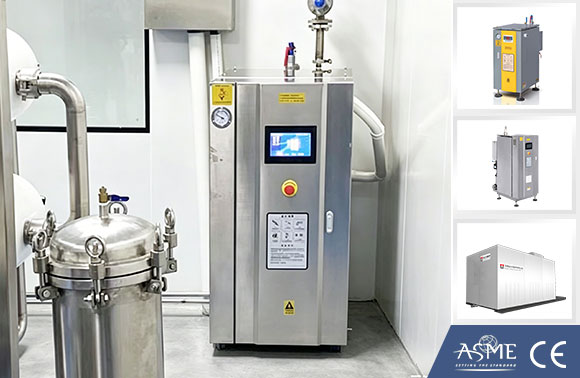

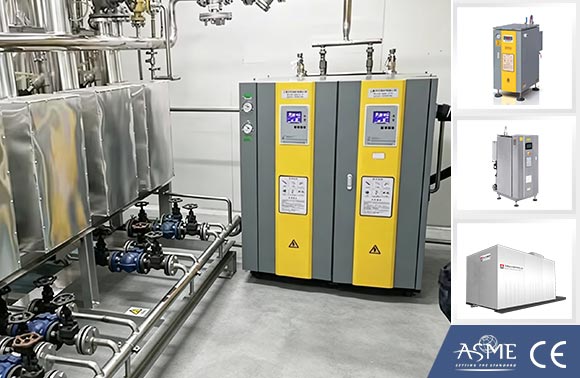

Most Popular: Electric Steam Generator

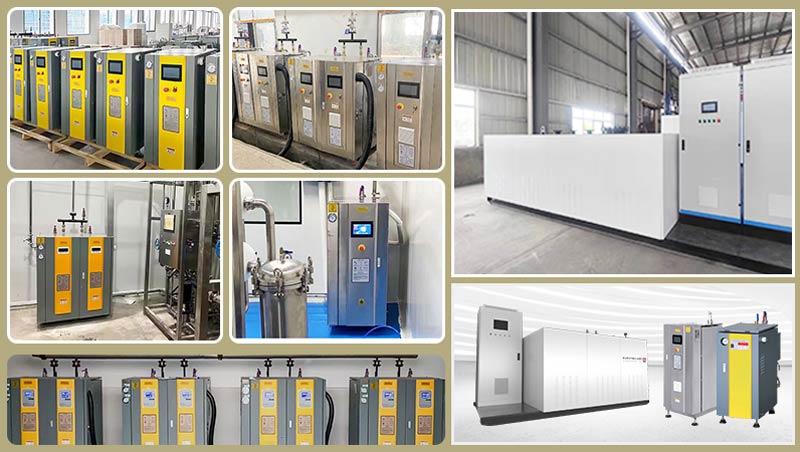

25kw-7000kw electric steam generator, with high quality materials and automatic running control system, work no pollution, high efficiency. Customzied services according your demand, available to be portable in skid-mounted/containerised.
Features:
①. Perfect safety protection function: boiler over-pressure, over temperature, low water level, power failure, sudden failures can be shut down in time to eliminate the fault and manually reset.
②. High degree of automation: fully automatic control, the main control components use world famous brand products to ensure the safety and reliability of boiler operation.
③. Stainless steel tubular nickel-chromium alloy electric heating tube, good heat transfer effect, low heat loss and high thermal efficiency up to 99%, long service life.
④.The outer packaging of the boiler is made of stainless steel, which is exquisite and beautiful. It's easier to intsall and operate 100% safely.

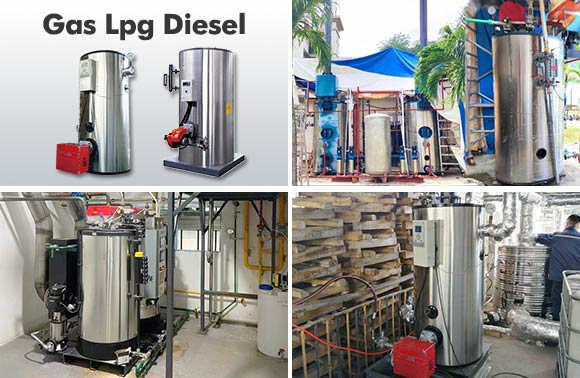

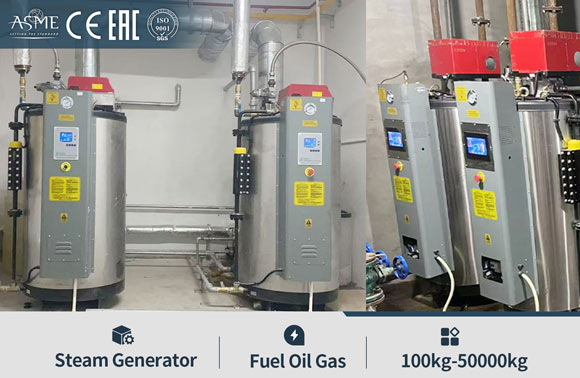

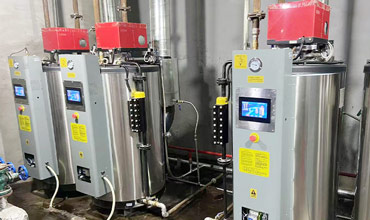

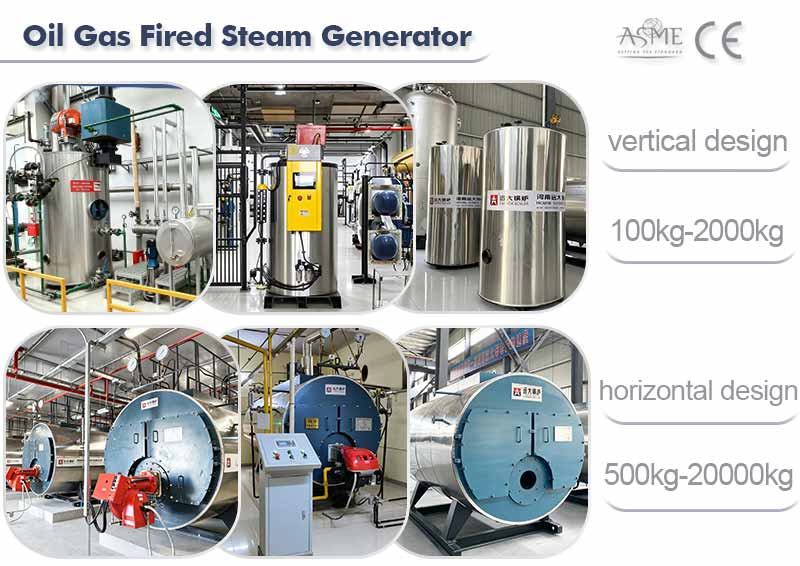

Hot Sell: Gas/Diesel Steam Generator

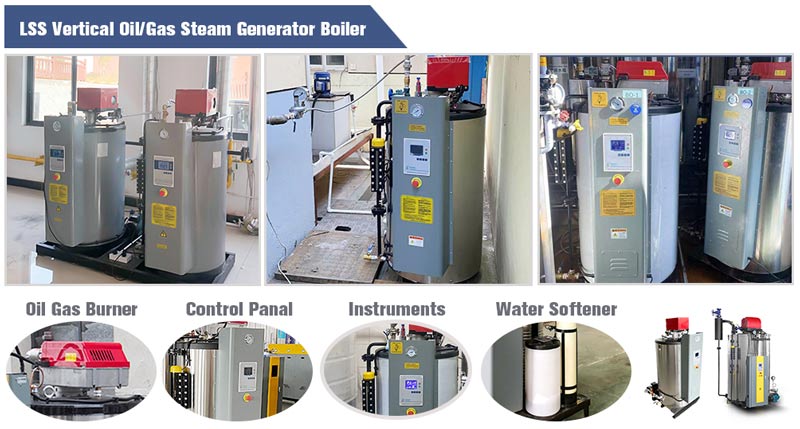

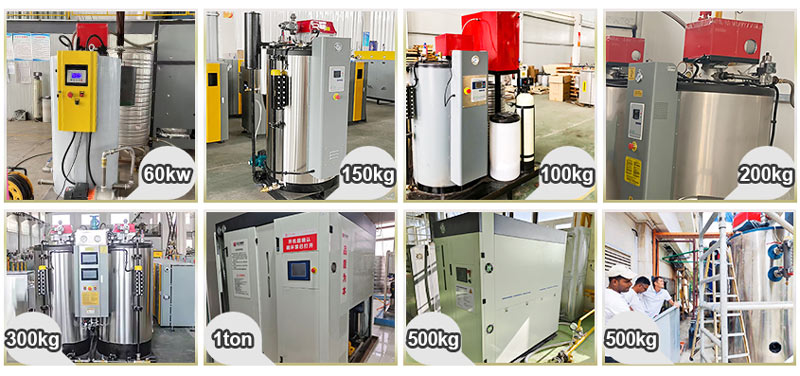

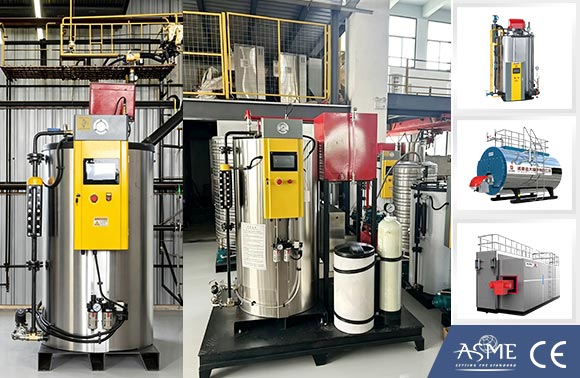

1. Small capacity, vertical Gas or Diesel steam generator, mostly use 100kg 150kg 200kg 250kg 300kg 350kg 400kg 500kg 600kg 800kg 1000kg steam generator, widely used for heating, multi-effect distillation equipment, food fermentation, disinfection, cooking, medical sterilization, water washing room, car Washing...

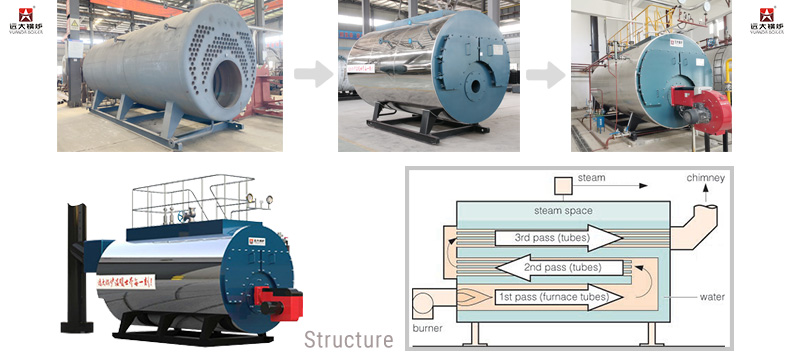

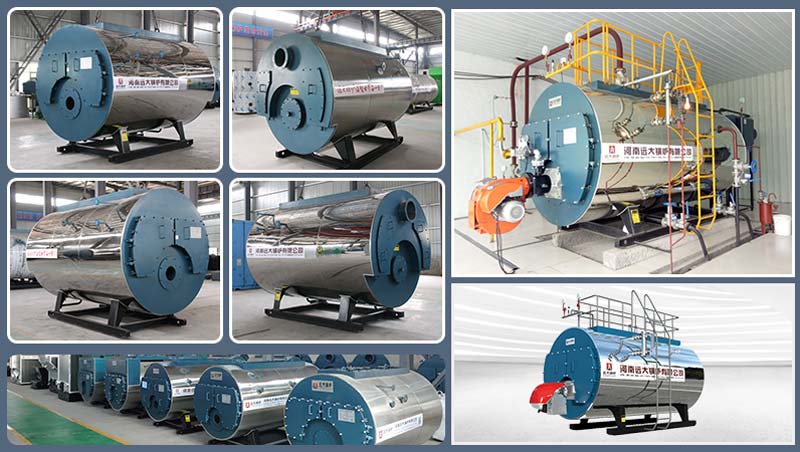

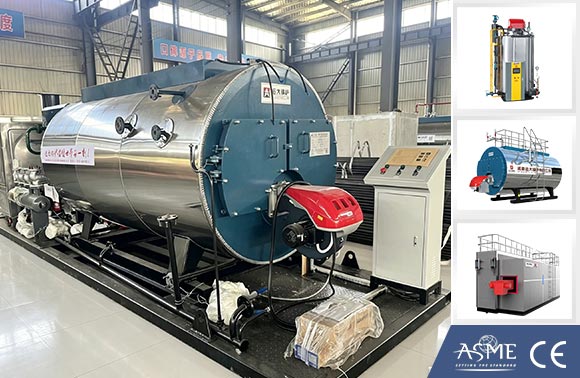

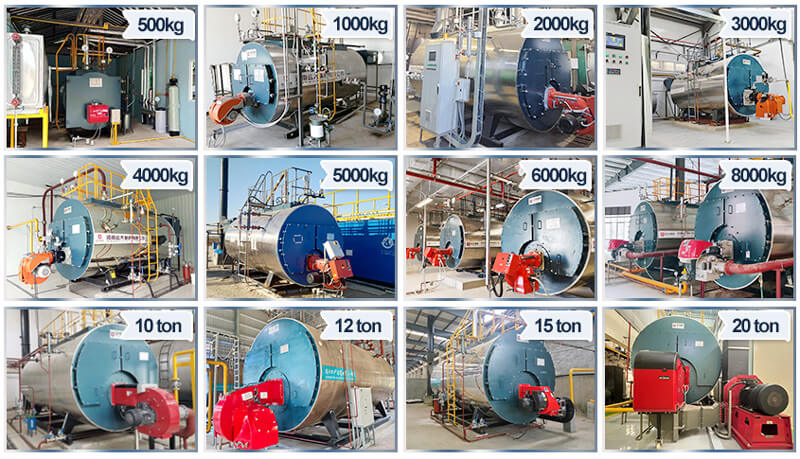

2. Large capacity, horizontal gas/oil steam generator. Named WNS boiler, it's horizontal three pass fire tube structure boiler, with higher-efficiency up 99% & energy-saving & fully automatic running. Importantly, WNS series boiler has a lower emissions, environmental-friendly.

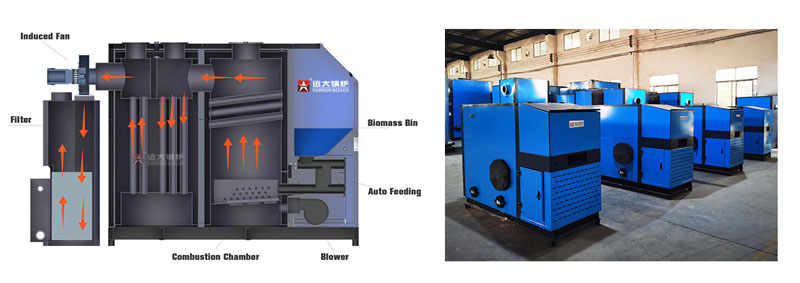

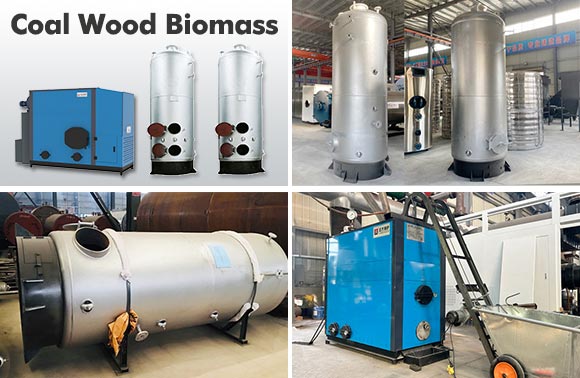

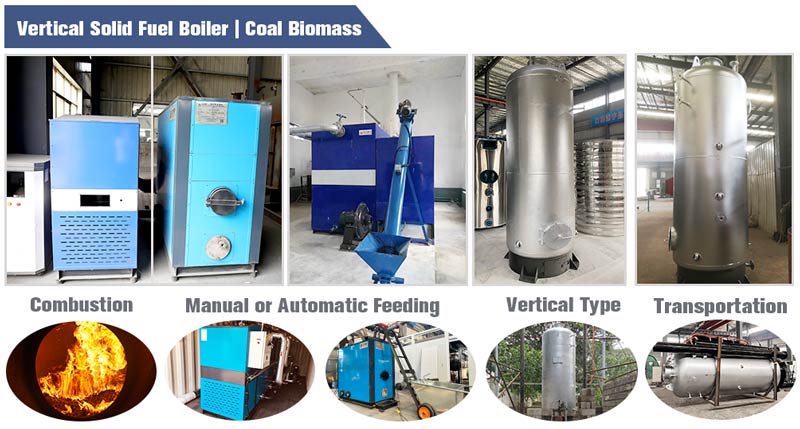

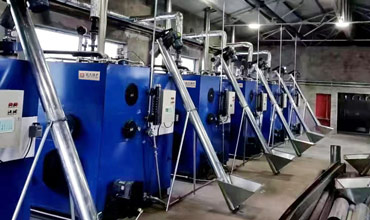

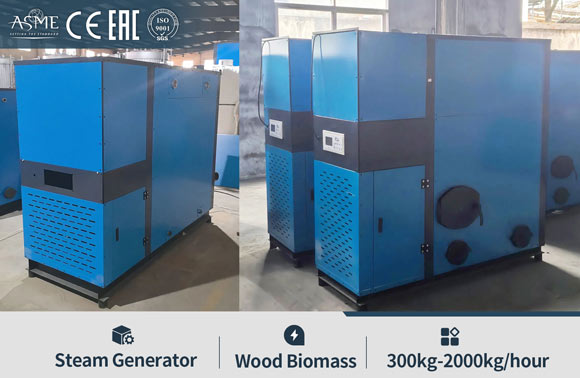

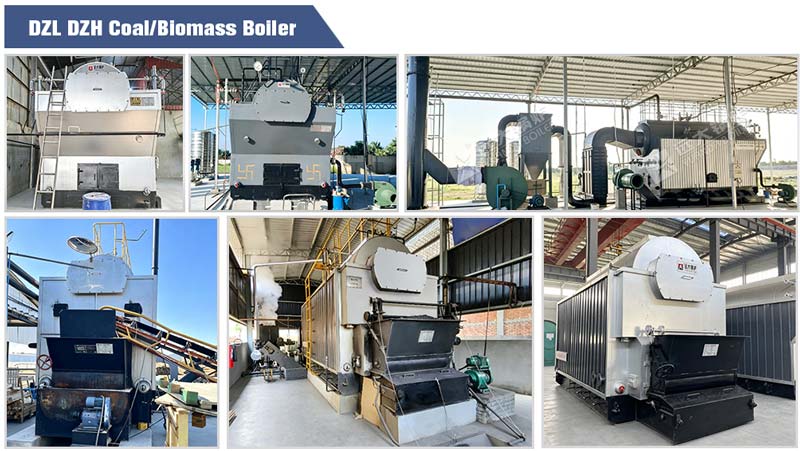

Hot Sell: Wood/Biomass Steam Generator

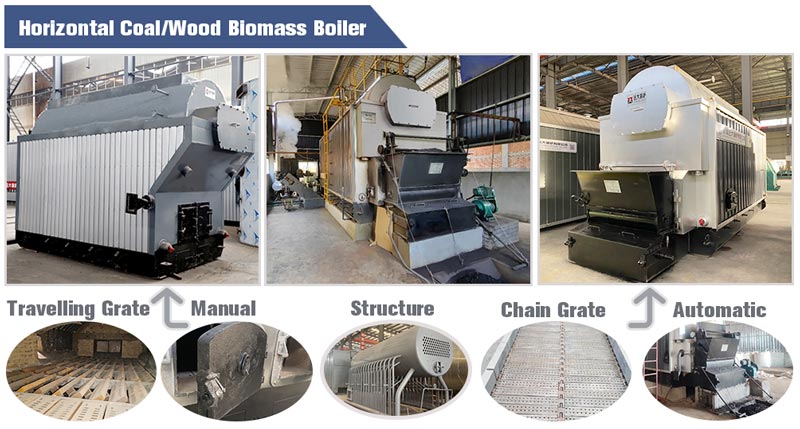

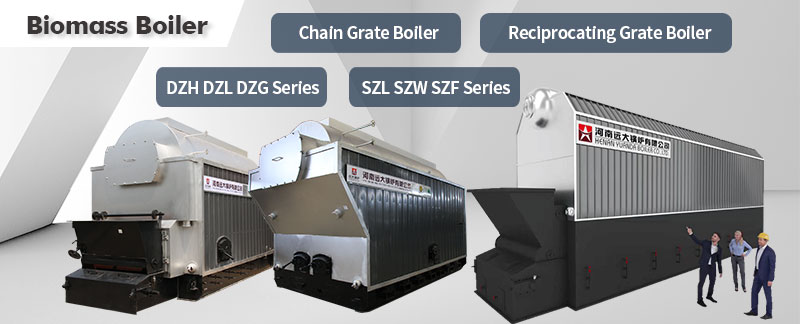

Fully automatic biomass pellets steam generator boiler, including fixed grate type & reciprocating grate type. It adopts water-tubes & fire tubes design for heat transferring. Thermal efficiency is about 85%.

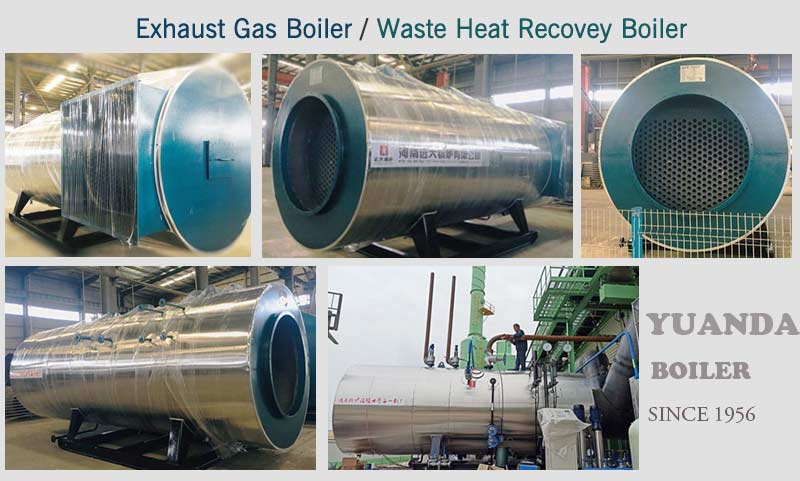

Hot Sell: Exhaust Gas Steam Generator
Mostly use heat recovery steam generator in gas turbine power plant system. We will design the suitable steam generator according to waste heat (exhaust gas) details.
Technical Parameter
| Electric Steam Generator | Types | Thermal capacity (kg/h) | Thermal capapcity (kw) | Working pressure | Steam temperature | Thermal efficiency | Dimension (mm) | Weight (kg) |
| LDR0.013 | Vertical | 13 | 9 |
0.3Mpa-1.5Mpa 3bar-15bar (Customized design) |
130ºC-194ºC (Customized design) |
98%-99.5% | 650*390*750 | 70 |
| LDR0.017 | 17 | 12 | 650*390*750 | 75 | ||||
| LDR0.025 | 25 | 18 | 750*450*1050 | 90 | ||||
| LDR0.035 | 35 | 24 | 750*520*1050 | 95 | ||||
| LDR0.05 | 50 | 36 | 750*580*1150 | 101 | ||||
| LDR0.065 | 65 | 48 | 800*580*1200 | 115 | ||||
| LDR0.075 | 75 | 54 | 800*580*1300 | 140 | ||||
| LDR0.085 | 85 | 60 | 800*600*1300 | 145 | ||||
| LDR0.1 | 100 | 72 | 860*650*1390 | 172 | ||||
| LDR0.11 | 110 | 80 | 860*650*1390 | 185 | ||||
| LDR0.125 | 125 | 90 | 860*650*1430 | 190 | ||||
| LDR0.15 | 150 | 108 | 920*760*1600 | 245 | ||||
| LDR0.18 | 180 | 126 | 920*760*1600 | 260 | ||||
| LDR0.2 | 200 | 144 | 1130*750*1780 | 450 | ||||
| LDR0.25 | 250 | 180 | 950*900*1830 | 650 | ||||
| LDR0.3 | 300 | 216 | 1320*1040*1920 | 760 | ||||
| LDR0.4 | 400 | 288 | 1380*1040*2070 | 890 | ||||
| LDR0.5 | 500 | 360 | 1020*890*2350 | 1020 | ||||
| WDR0.5 | Horizontal | 500 | 360 | 1755*1180*1510 | 1400 | |||
| WDR1.0 | 1000 | 700 | 2530*1380*1480 | 1730 | ||||
| WDR2 | 2000 | 1400 | 2530*2000*2080 | 2730 | ||||
| WDR3 | 3000 | 2100 | 2630*2210*2160 | 3420 | ||||
| WDR4 | 4000 | 2800 | 3680*2360*2380 | 4320 | ||||
| WDR5 | 5000 | 3500 | 3980*2580*2560 | 5130 | ||||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
Our Supply Equipment List
Global Sales & Services
Yuanda Company Since 1956
China Leading Manufacturer For Steam Boiler, Hot Water Boiler, Thermal Oil Boiler. Global Sales Cover 132 Countries & Regions, With ISO CE ASME DOSH EAC.
Professional Technican Support
With 68 years manufacture experience, Yuanda Boiler has abundant experience on customizied solution for projects, one to one service.
15Years Export Experience
Mature boiler export experience, do not need warry about the import formalities. Professional sales manager will serve you all the time.
Trustable Engineer Services
Yuanda senior engineers are able to customers' site for service. In many countires, we have some partner companies that can help install boilers.FAQ of Steam Generator
Question: What's the fuel consumption cost ?
Answer: Generally, there are kinds of fuel to choose, it will be different according to its structure design. If you need detailed specifictaions, contact us further.
Question: What applications of steam generator boiler ?
Answer: Mostly, steam generator used in all industries such food, dairy, beverage, brewery, garments, chemical use, etc. It supply steam (satureated steam/superheated steam) to certain equipment, to reach the purpose of drying, heating.
