Vertical Boiler
 Capacity: |
13kg-50 000kg 9kw-35 000kw |
 Horsepower: |
2hp-3000hp |
 Fuel: |

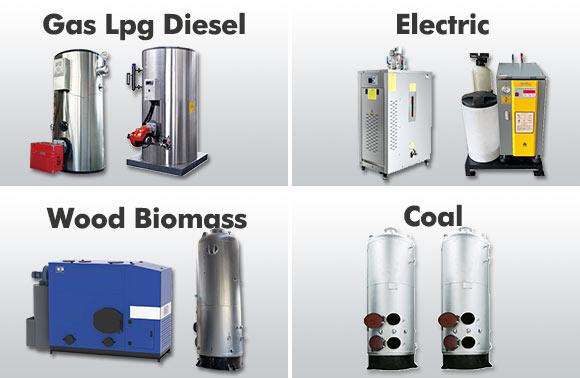

diesel lpg gas hfo biogas, electricity, coal, wood biomass |
 Heat Temp.: |
60°C-450°C |
| Certificates: |
ISO, CE, ASME, DOSH, EAC |
Our Products:steam generator, steam boiler, hot water boiler, thermal oil boiler
Introduction
Hot Selling Industrial Boiler

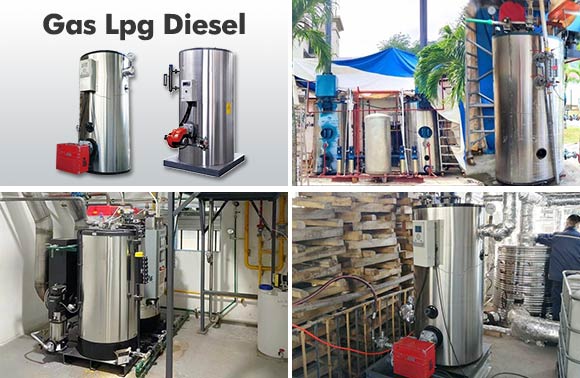

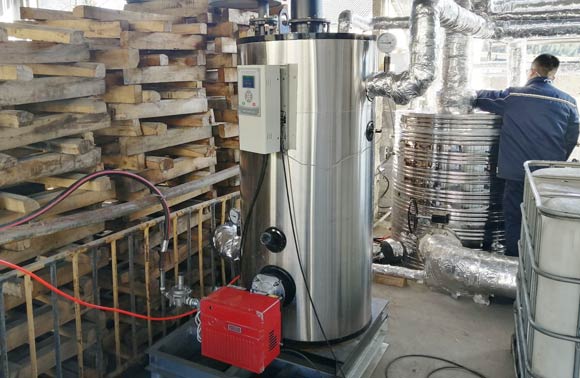

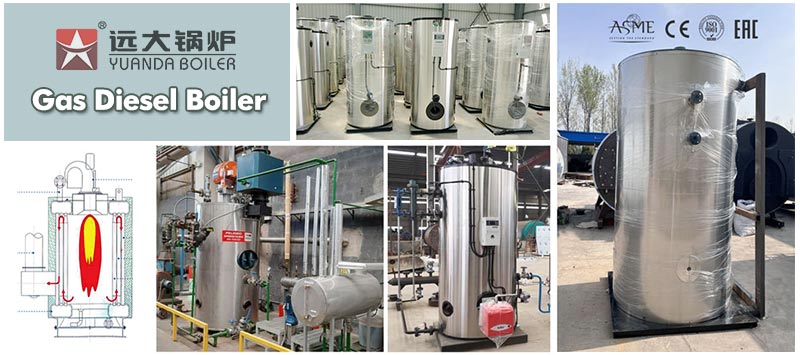

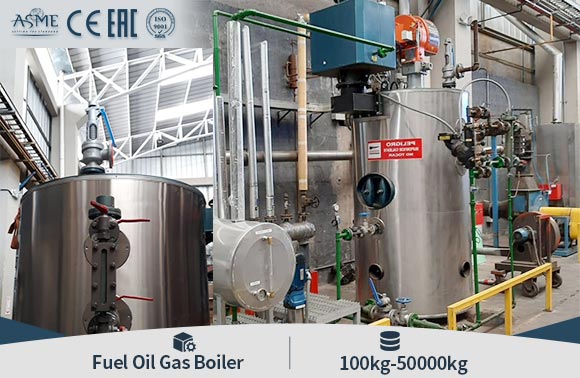

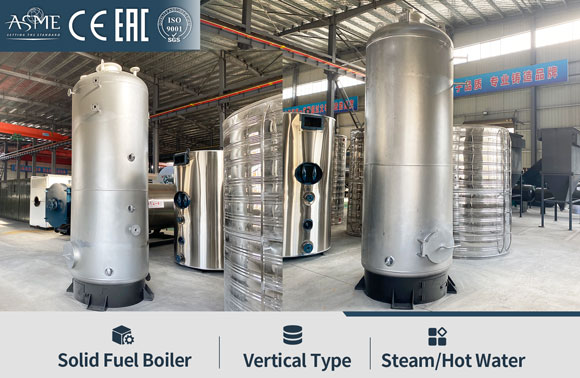

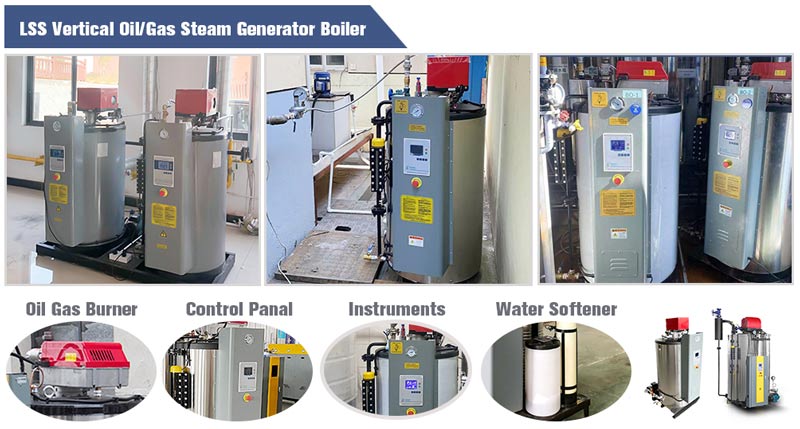

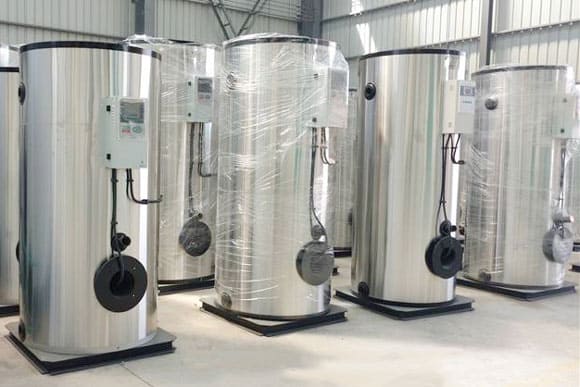

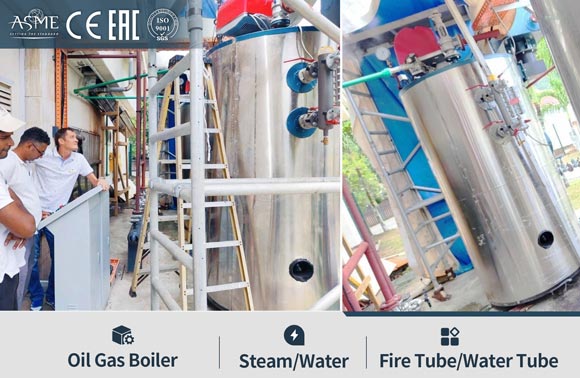

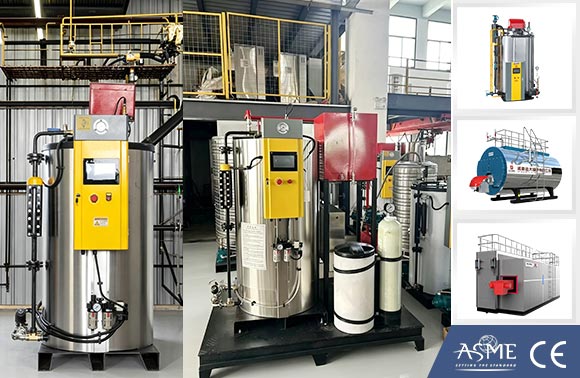

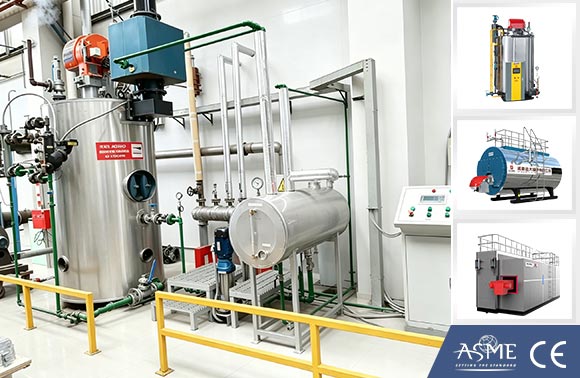

Product: Vertical Gas Diesel Boiler
Model: steam generator, steam boiler, hot water boiler
Structure: water tube once through design, fire tube two pass design
Vertical boiler occupies minimal floor space and reduces installation area. Compact and efficient, it provides reliable steam or hot water supply with easy installation and fast start-up.

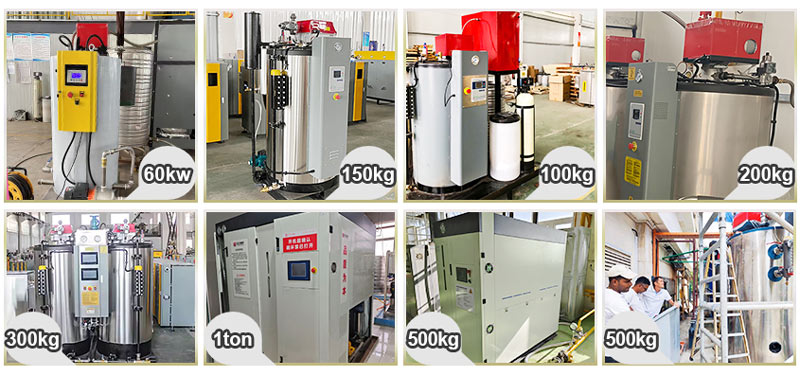

Vertical Boiler
Capacity: 60kw-1400kw 100kg-2000kg/hour
Capacity: 100kg-2000kg/hour
Capacity: 6hp-120hp

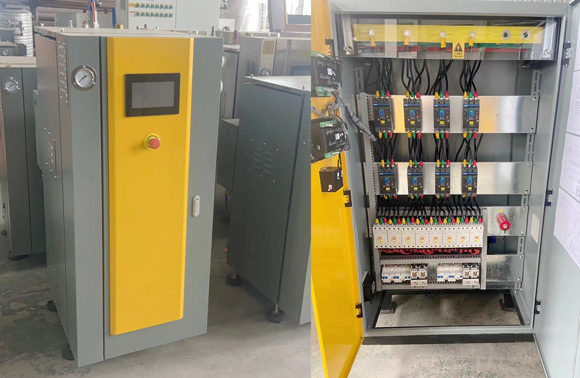

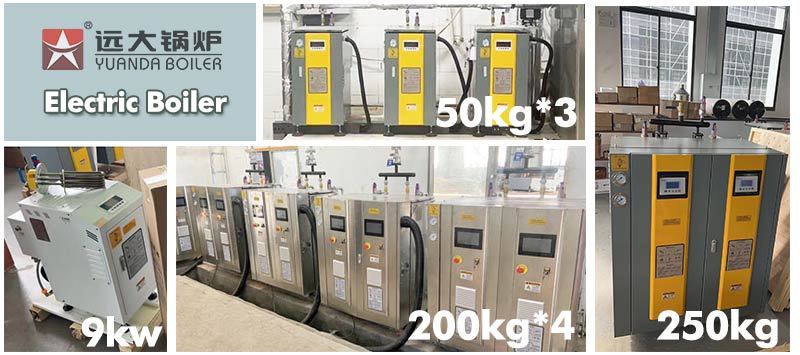

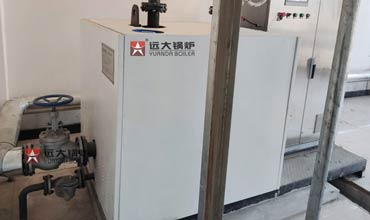

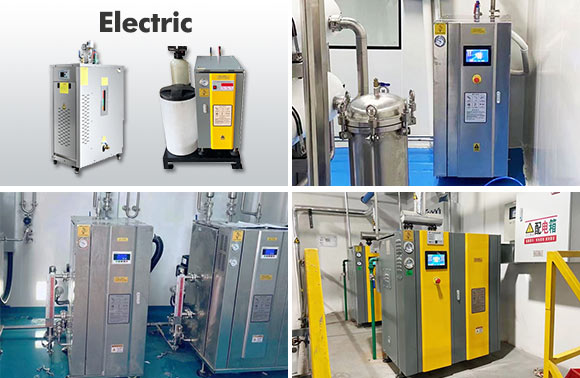

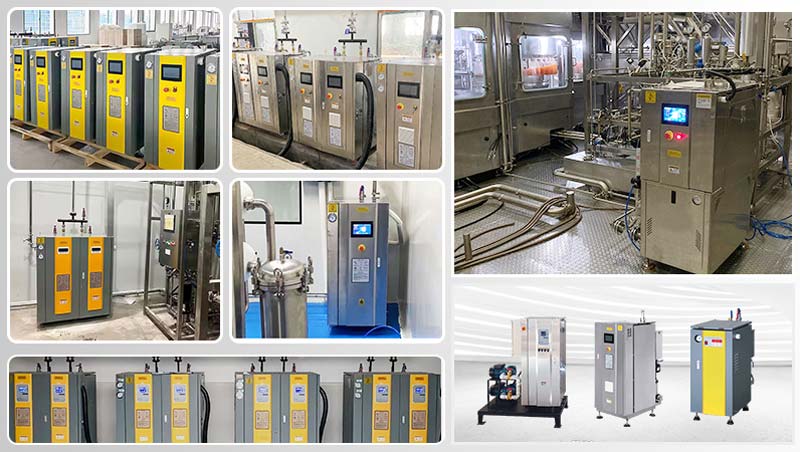

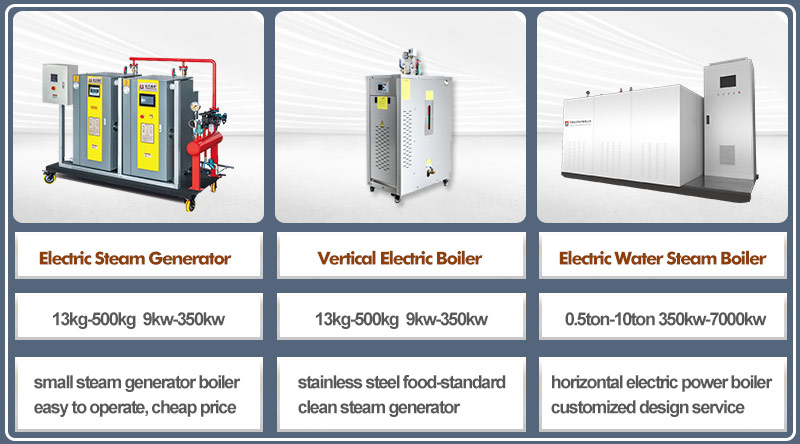

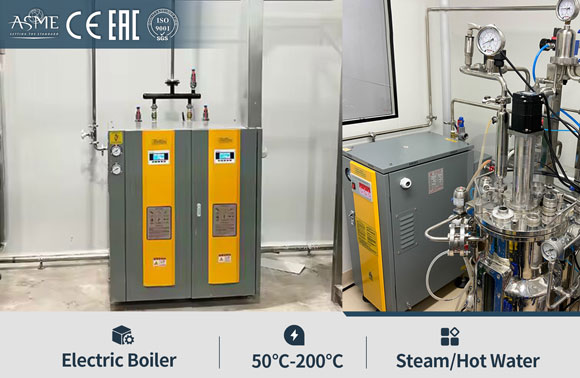

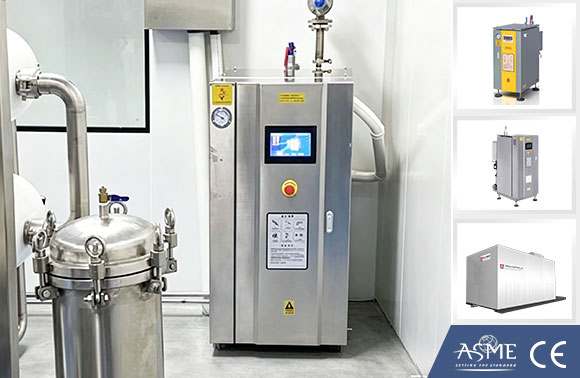

Product: Vertical Electric Boiler
Capacity: 6 kw-700 kw
Capacity: 10 kg-1000 kg
Material: Carbon Steel (Standard), Stainless Steel (Optional)
Electric boiler uses electricity as the heat source to produce Hot Water/Steam by electric heating elements. Electrical energy is converted directly into heat and transferred to water inside the boiler.
No combustion, no flue gas, and no fuel storage, realizing clean operation and stable steam output, precise control and reliable safety protection.
LDR Vertical Electric Boiler Advantages
1. Fully Automatic Operation – Intelligent control system ensures stable and safe performance
2. Clean Energy – Zero emissions, environmentally friendly
3. Compact Design – Small footprint, ideal for limited installation space
4. Plug & Play – Easy installation, quick startup
5. Flexible Structure – Available in vertical, horizontal, and portable types
6. Material Options – Standard steel or stainless steel
7. User-Friendly – Simple operation with minimal maintenance

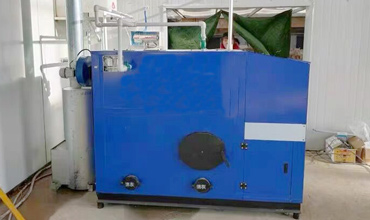

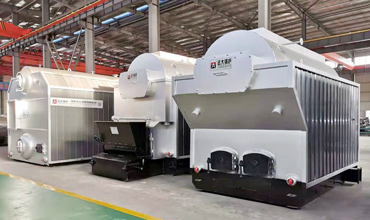

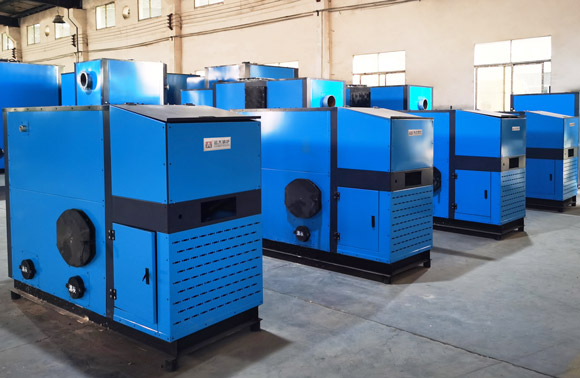

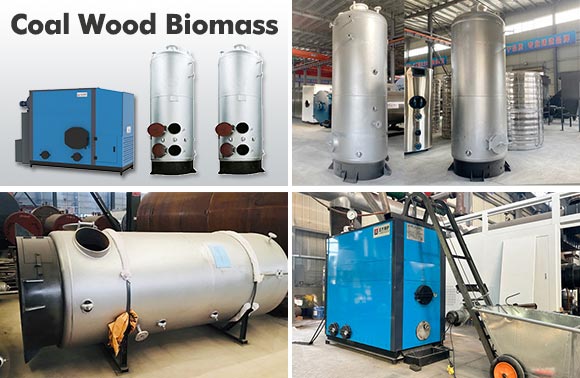

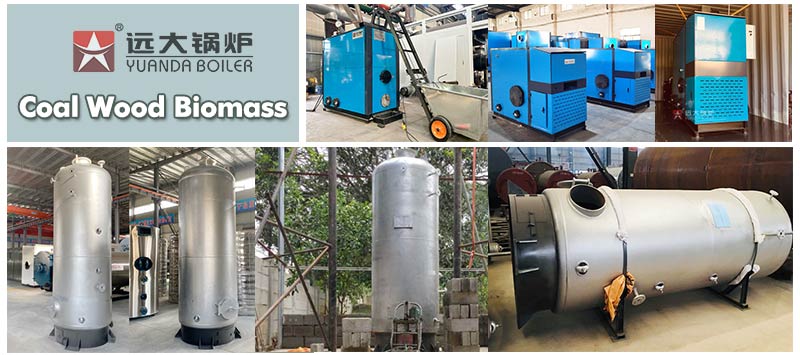

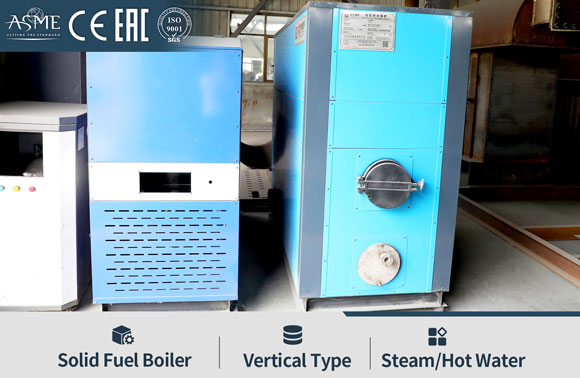

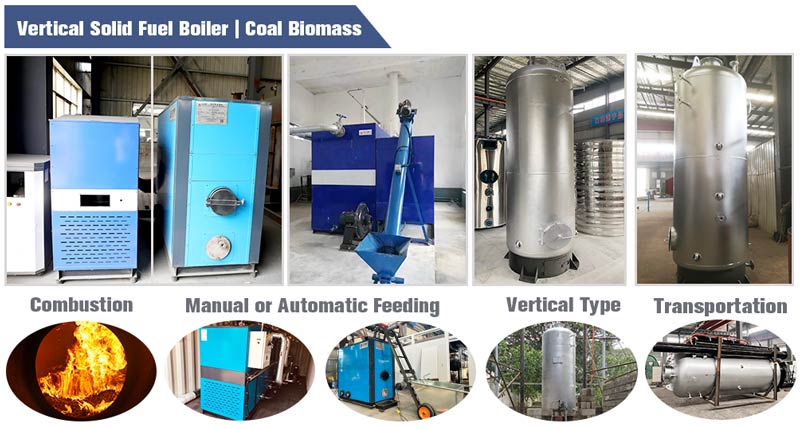

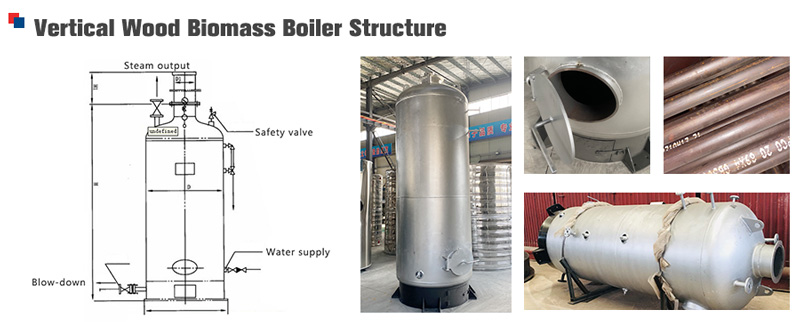

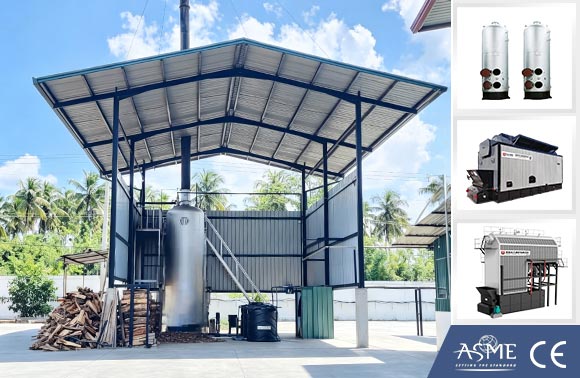

Product: Vertical Solid Fuel Boiler
Capacity: 100 kg-50000 kg
Capacity: 46 kw-28000 kw
Fuel: coal, biomass pellet, wood, solid waste
Types: manual feeding, automatic feeding
Vertical solid fuel steam/hot water boiler, widely for small industries processing, hotel/school hot water system, commercial laundry...
Boiler Manufacturing and Inspection
Certified Manufacturing Standards
All boilers are designed and manufactured under ASME, CE, and ISO certifications, ensuring full compliance with international pressure vessel and safety standards.
Strict Quality Control System
From raw material selection to welding, assembly, and hydrostatic testing, every process is strictly monitored. Each boiler is 100% inspected and tested before delivery.
Factory Audit and Third-Party Inspection Support
Welcome customers and authorized agencies to conduct factory inspections (audit) and witness testing. Third-party inspections such as SGS, BV, or TUV.
Experienced Technical Team
With 70 Years boiler manufacturing experience since 1956, our skilled engineers and technicians ensure each unit meets the highest performance and safety standards.Technical Parameter
| Oil Gas Steam Boiler Technical Parameter | ||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Steam temperature(℃) | Feed water temperature(℃) | Thermal efficiency(%) | Boiler weigh(t) |
| LHS0.3 | 0.3 | 0.1mpa-3.8mpa | 100°C-450°C | 20°C/104°C | 90 | 1.2 |
| LHS0.5 | 0.5 | 91 | 1.7 | |||
| LHS0.5 | 0.5 | 91 | 1.7 | |||
| LHS0.7 | 0.7 | 91.3 | 2 | |||
| LHS0.7 | 0.7 | 91.3 | 2 | |||
| LHS1 | 1 | 92 | 2.6 | |||
| LHS2 | 2 | 96 | 6.3 | |||
| WNS0.5 | 0.5 | ＞98 | 3.5 | |||
| WNS1 | 1 | ＞98 | 5.5 | |||
| WNS2 | 2 | ＞98 | 8 | |||
| WNS3 | 3 | ＞98 | 10.7 | |||
| WNS4 | 4 | ＞98 | 11.6 | |||
| WNS6 | 6 | ＞98 | 17.5 | |||
| WNS8 | 8 | ＞98 | 22.5 | |||
| WNS10 | 10 | ＞98 | 26.8 | |||
| WNS15 | 15 | ＞98 | 35.2 | |||
| WNS20 | 20 | ＞98 | 45.5 | |||
| SZS10 | 10 | ＞98 | 36 | |||
| SZS15 | 15 | ＞98 | 45 | |||
| SZS20 | 20 | ＞98 | 52.6 | |||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||
Accessories For Boiler
Boiler Consumption
Oil Gas Boiler Consumption
For example, 1ton boiler comsumes 73.53 Nm3 natural gas (heat value 8500kcal). 52kg LPG (heat value 12000kcal). 72 ltrs diesel (heat value 8670kcal).
Boiler Consumption Cost
Tell us your required boiler capacity, fuel type, operating pressure, daily operating hours, and local fuel price. Our team can help evaluate suitable boiler options and estimate operating costs based on your project conditions.
Customized Boiler Solutions for Your Application
Every industrial process has different heating requirements. Selecting the right boiler involves more than choosing a capacity.
Boiler Configuration & Auxiliary Equipment
A complete boiler system involves more than the boiler itself. Auxiliary equipment may include feedwater pumps, water treatment systems, economizers, burners, dust collectors, and automatic control systems...
Why Choose Yuanda
Complete Boiler Solutions – Customized boiler systems based on your required capacity, fuel type, working pressure, and application.
International Certifications – Manufacturing capabilities supported by ASME, ISO 9001, CE PED, EAC, DOSH, and CRN certifications, as applicable to the specific model and market.
Global Project Experience – Boiler equipment supplied to over 135 countries and regions, with installation and commissioning services completed in more than 60 countries.
Direct Manufacturer Support – Professional technical assistance from project consultation and equipment selection to installation and after-sales service.
Henan Yuanda Boiler Corp Ltd
We are a fully integrated manufacturer specializing in the design, engineering, manufacturing, installation, and after-sales service of industrial boilers and incinerators. Our products are available with internationally recognized certifications, including ASME, CE PED, ISO 9001, EAC, DOSH, and CRN.
With nearly 70 years of manufacturing experience and more than 20 years of export expertise, we supplied industrial heating equipment to over 135 countries and regions across Asia, Europe, Africa, North America, South America, and Oceania.
