Biomass Wood Bagasse Ricehusk Solid Fuel Boiler
 Product capacity: |
0.1-75t/h | 100-50000kw | 10-3000hp |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Biomass, coal, wood, pellets, briquette, shells, husk, peanuts, waste |
 Available industries: |
For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
Yuanda Products:#Steam-Boiler #Hot-Water-Boiler #Steam-Generator #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Exhaust-gas-boiler
Introduction
> Biomass Boiler
#Chain Grate Boiler #Travelling Grate Boiler #Water Tube Boiler #Fire Tube Boiler

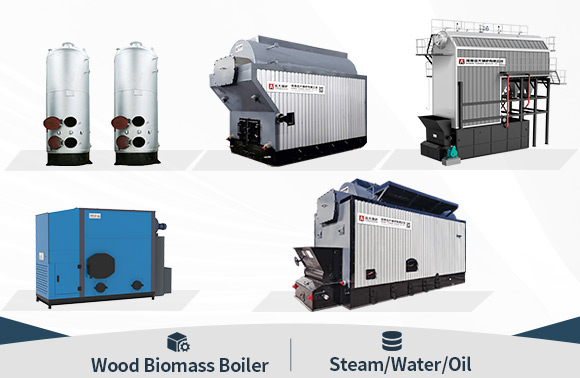

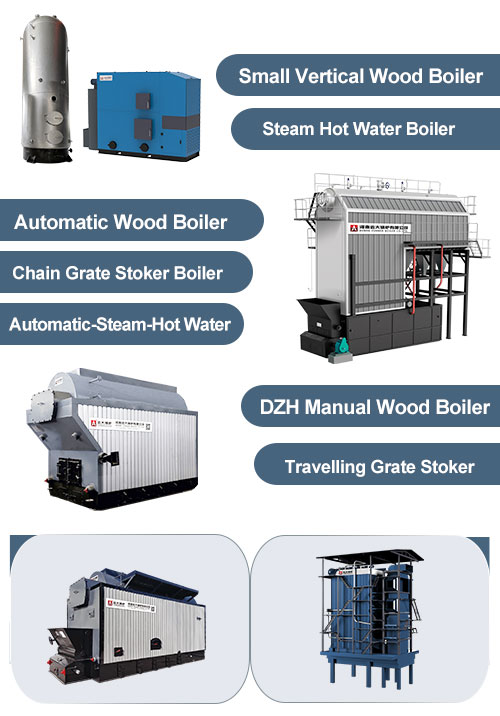

> Yuanda Solid Fuel Biomass Boiler

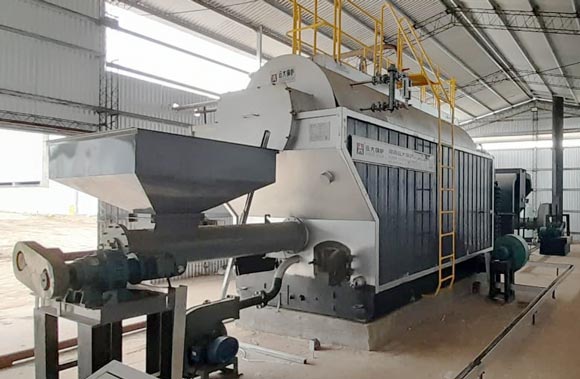

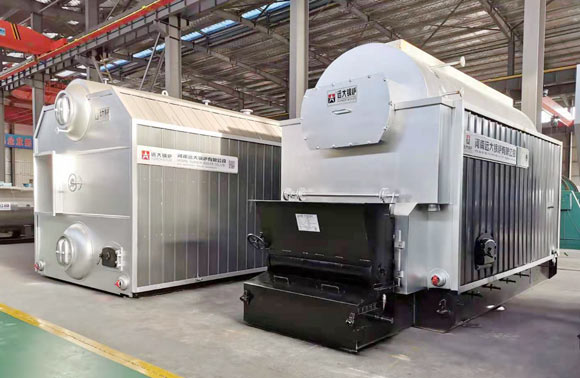

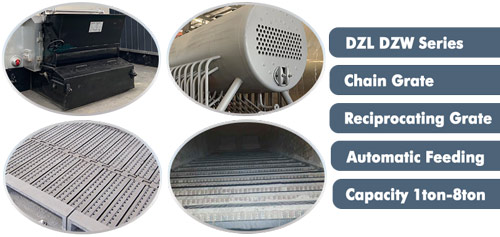

Automatic Chain Grate Biomass Boiler
DZL series biomass fired boiler, automatic feeding system.

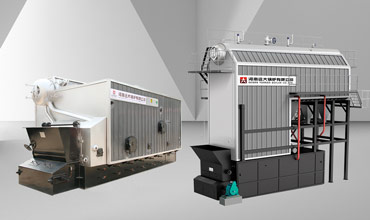

Biomass Steam/Hot Water Boiler
Automatic biomass feeding chain gate boiler, stable quality and high thermal efficiency. Capacity in 1ton-8ton, 0.7mw-5.6mw

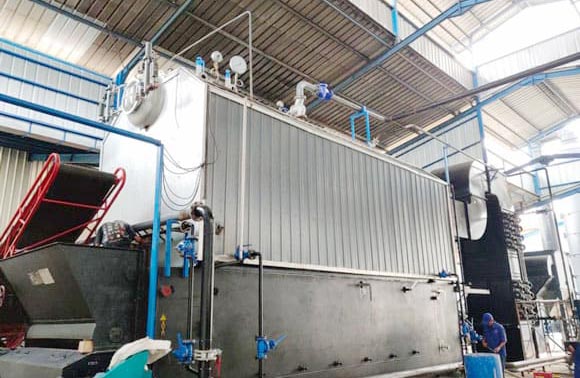

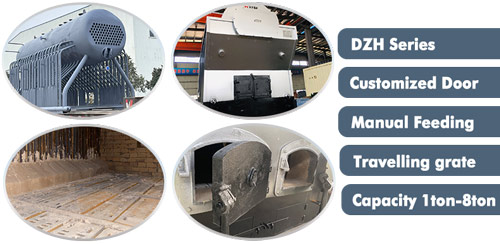

Manual Feeding Biomass Boiler
DZH series travelling grate boiler, labor works for biomass feeding.

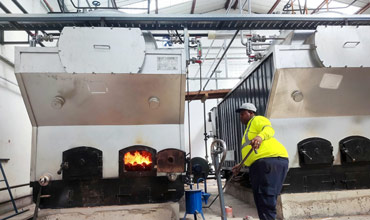

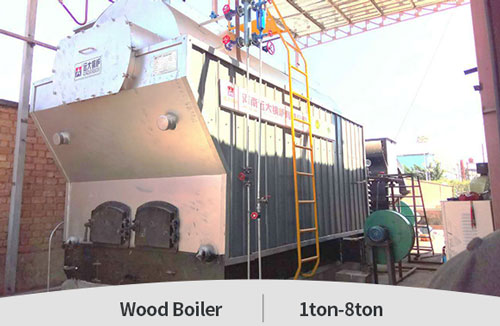

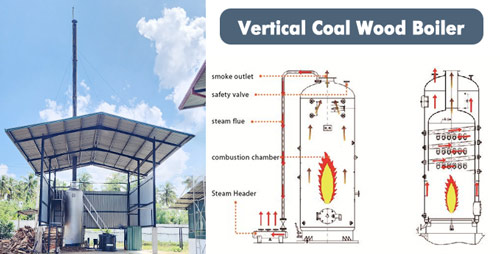

Manual Biomass Wood Boiler
Travelling grate stoker biomass boiler, manual feeding biomass burning. Cheaper prie compared to DZL biomass boiler.Vertical Wood Biomass Boiler
Small vertical biomass water tube boiler, steam boiler and hot water boiler. Simple structure & Smaller occupied area.
Small Biomass Boiler
Vertical biomass steam boiler 100kg-2000kg, Vertical biomass hot water heater boiler 48kw-1400kw.Biomass Water Tube Boiler

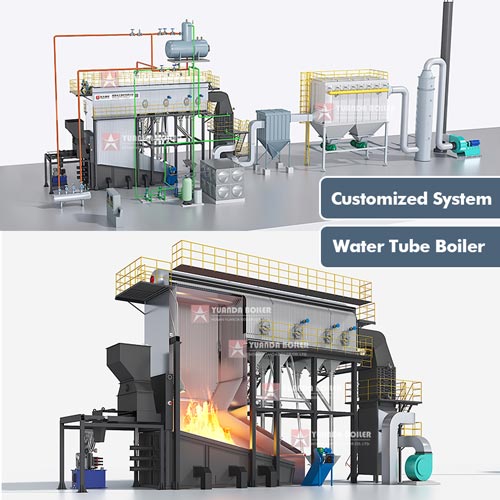

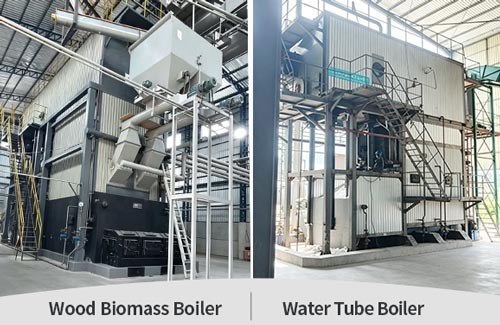

SZL water tube biomass fired boiler, It is double-drums water tube assembly chain grate or reciprocating grate boiler (A/D type). High technology, environmental and energy-saving. Large heating surface, make sure enough space for biomass burning, automatic fuel feeding and slag removing system.
SZW SZL Biomass Boiler
SZL series double drums water tube boiler, unique furnace design and high thermal efficiency. Thermal capacity 4ton-50ton, 2.8mw-35mw.Pulverised Fuel Boiler
10ton-75ton pulverised fuel boiler, mostly use Woodwaste, Ricehusk, Straw, Bagasse, Corn cobs, Energy crops, Industrial residues.
CFB Pulverised Fuel Boiler

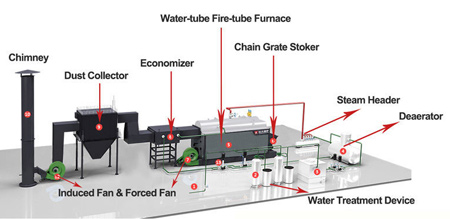

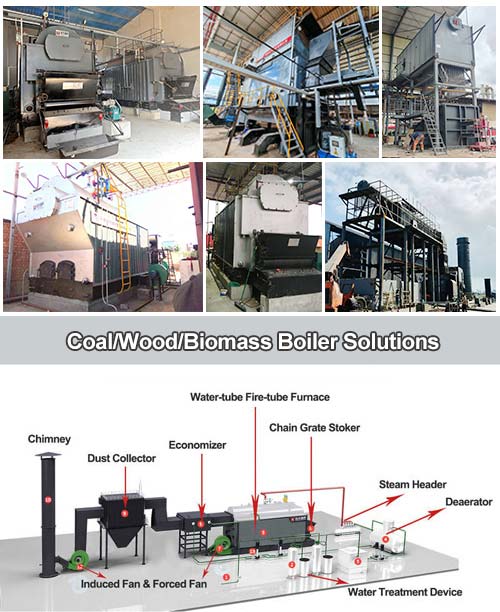

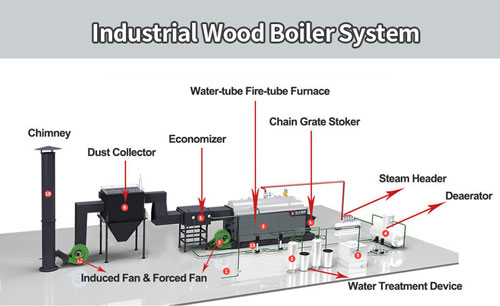

Circulating fluidized bed combustion technology, is kind of new and mature coal combustion clean technology, with high-efficiency, low-pollution.Biomass Boiler System Diagram
Note: This is DZL series biomass boiler system diagram, if you need other type biomass boiler, please contact us directly.
DZL Biomass Boiler Features
1. DZ series automatic grate biomass boiler, we could adjust the hand lever and button to control the feeding/combustions condition, can operate easily efficiently.
2. DZ series biomass boiler, is famous with features "water-tube & fire-tube structure" "wing-shape flue" "unique boiler arch" "customized furnace according the biomass"
3. Make it environment-friendly, we will arrange devices such air-preheater/economizer/exhaust gas boiler, reuse the heat energy from high-temperature.

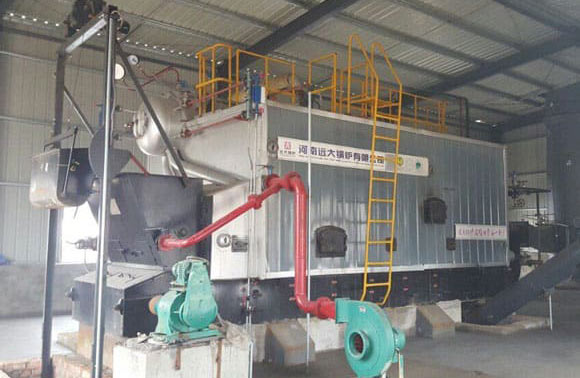

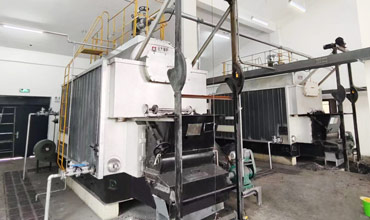

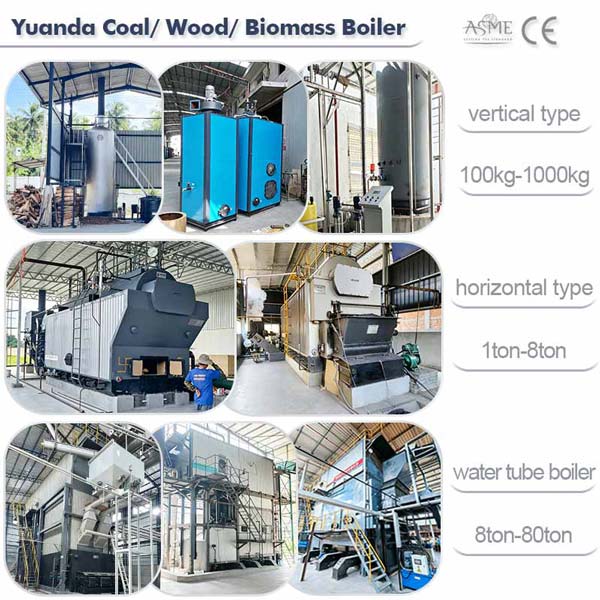

Yuanda Biomass Boiler Projects
Yuanda Boiler Products Global Sale & Service Cover 132 Countries & Regions.
Related: Biomass Thermal Oil Boiler
Biomass hot oil boiler (biomass thermic fluid heater) (biomass thermal oil heater) 200kw-28000kw 300000kcal-12million kcal, in vertical or horizontal.
Technical Parameter
| DZ Series Steam Boiler Technical Parameter Table | |||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| DZH1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZL1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 |
| DZH2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.75 | 126.41 | 386.47 | 15 |
| DZL2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.77 | 106.34 | 393.77 | 22 |
| DZH4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 |
| DZL4 | 4 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 |
| DZH6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 |
| DZL6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 |
| DZL8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Our Supply Equipment List
Boiler Features
Chain grate/Reciprocating grate
Auto-feeding type burning system, avoid problem of air leakage, fuel leakage and uneven ventilation. Easier operation compared to traditional grate.
Fire tubes & Wing shape structure
Strengthening heat transfer, eliminating welding stress, enhance heat transfer bility, reduce heat stress of pipeline seam, prevent pipeline cracking.
Security guaranteed & Automation
With a set of alarm,protection and security guaranteed, 100% safety. Control cabinet use siemens elements, trustable quality & control strictly
Economizer & Dust collector device
Reuse waste heat in exhaust gas, energy saving devide (economizer); Remove the dust and ash, protect envrionment and reduce pollutionBoiler Advantages
Higher efficiency & Energy-saving
Optimized design CAD furnace/coil pipe sturcture/new arch design, enhancing heat transfer efficiency. Equipped with energy saving device such as economizer to absorb heat of exhaust gas, economic & eco-friendly.
Automatic feeding coal/biomass boiler
Automatic chain belt grate, easier operation, avoid the problem of air leakage/fuel leakage/uneven ventilation. Double-sided air inlet chamber can flexibly adjust the air volume and distribute the air uniformly to ensure full combustion.
High Quality & Strong Power
Design steam-water separator, reduce steam humidity and ensure steam quality. Boiler design 5-10% overload capacity, satisfy customers' demand for factory using. Enough steam output per hour.
Safety & 25+Years Lifespan
We already manufacturing boiler for 60+Years, mature skilled technician team, advanced production processes, strict quality inspection control, CE & ISO certified quality, global service for boiler install & commissioning & training operator.
