Briquette Boiler
 Product capacity: |
500kg-50000kg, 300kw-28000kw |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Briquette, Coal Charcoal, Biomass, Wood Sawdust, Woodchips, Pellets |
 Available industries: |
For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
Yuanda Products:#Steam-Boiler #Hot-Water-Boiler #Steam-Generator #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Exhaust-gas-boiler
Introduction

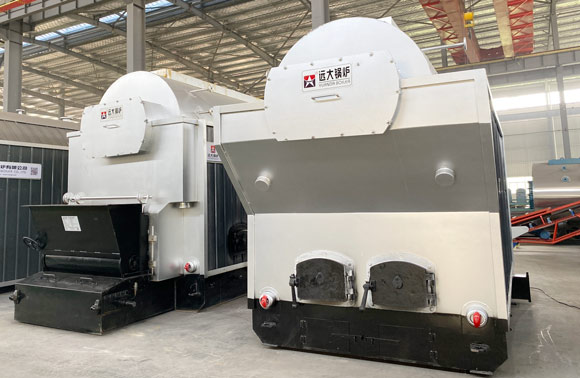

Briquette Boiler
#STEAM_BOILER #HOT_WATER_BOILER
Briquettes are compressed blocks of pulverized coal or other combustible biomass materials.
DZH series briquette boiler, is kind of manual feeding type boiler, inner fire-tube & water-tube structure, wing-shape flue and flue gas three pass design, conbustion device is travelling grate.
Biggest advantages: DZH boiler has strong fuel adaptability for: briquette, coal, wood log, wood chip, solid waste.
DZH Briquette Boiler Features
1. Manual feeding type briquette boiler, water-fire tubes, wing shape flue structure. Sufficient steam power, steady boiler running for 24 hours' work.
2. Using energy-saving device, eco-friendly emission strandard, low original dust discharge concentration, environmental protection and energy conservation.
3. High quality steam output boiler, equipped water treatment device and economizer devices. Long life span than 25Years, offer whole life service for boiler.

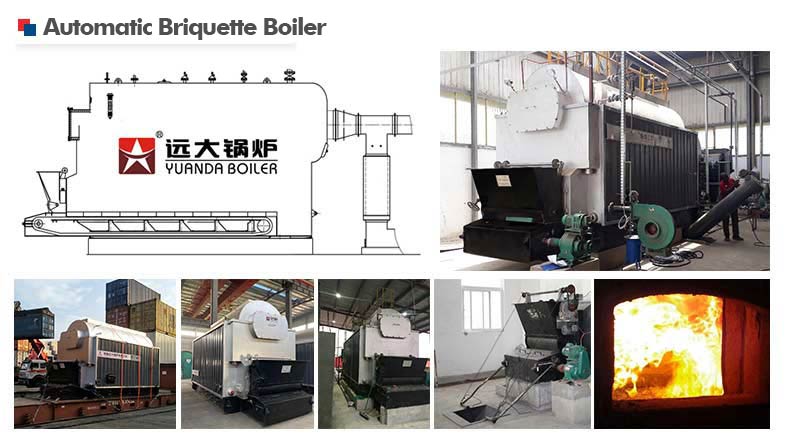

Related: Automatic Briquette Boiler

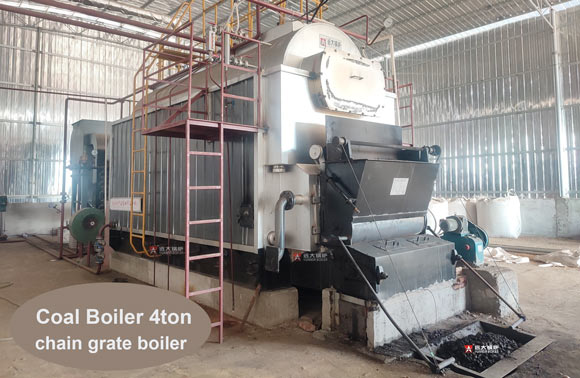

DZL automatic briquette boiler, with chain grate combustion device, adopt automatic briquette feeding system, inner fire-tube & water-tube structure, wing-shape flue and flue gas three pass design, higher thermal efficiency than traditional manual briquette boiler.

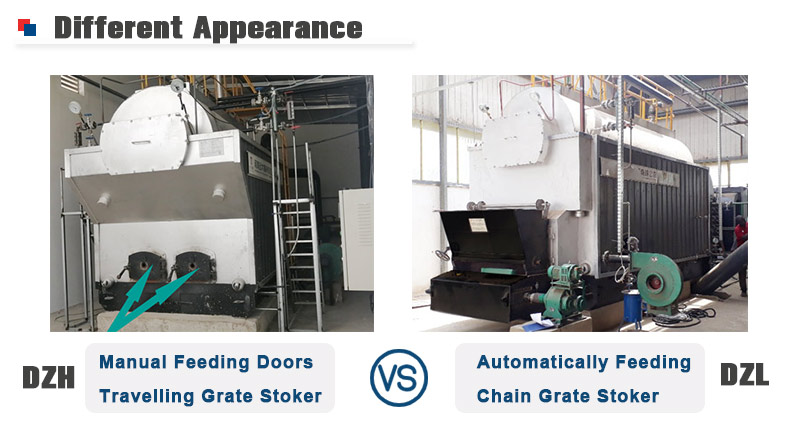

Compare Automactic & Manual Briquette Boiler
1. Biggest difference is combustion device, thus cause different working way. DZL is automatic briquette feeding boiler, DZH is manual hand operating briquette boiler.
2. Different fuel adaptability, DZH boiler could burn biomass waste/wood log/wood chips with coal, stronger fuel adaptability than DZL boiler.
3. Different thermal efficiency, absolutely, DZL boiler has higher thermal efficiency compared with DZH boiler.

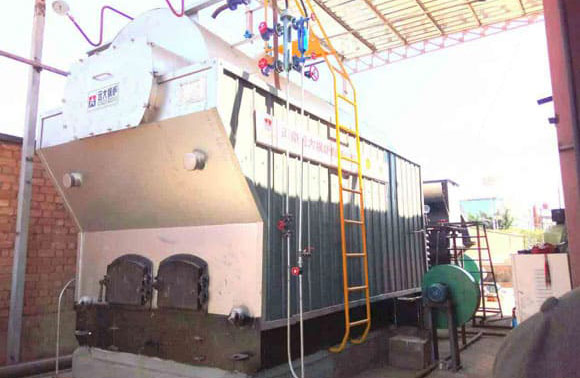

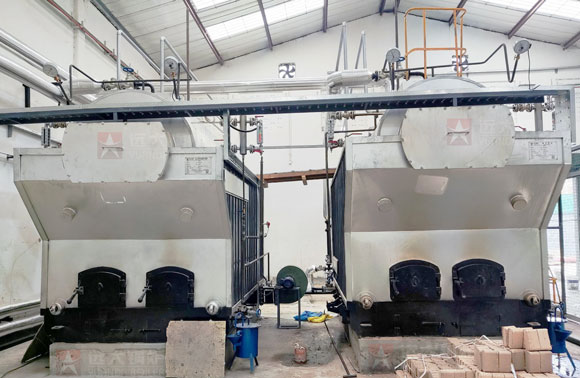

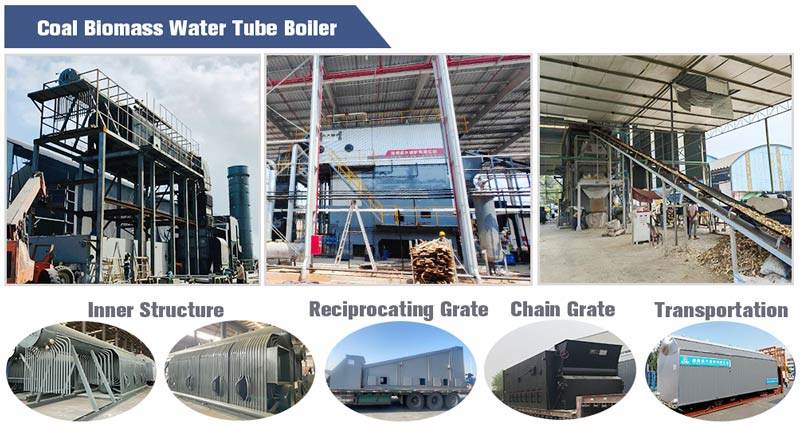

Yuanda Coal Biomass Briquette Boiler Projects
Yuanda Boiler Company Has Sold to 132 Countries. Trustable Quality & Service, qualified by ISO CE ASME Certificates.
Technical Parameter
| DZ Series Steam Boiler Technical Parameter Table | |||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| DZH1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZL1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 |
| DZH2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.75 | 126.41 | 386.47 | 15 |
| DZL2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.77 | 106.34 | 393.77 | 22 |
| DZH4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 |
| DZL4 | 4 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 |
| DZH6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 |
| DZL6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 |
| DZL8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Our Supply Equipment List

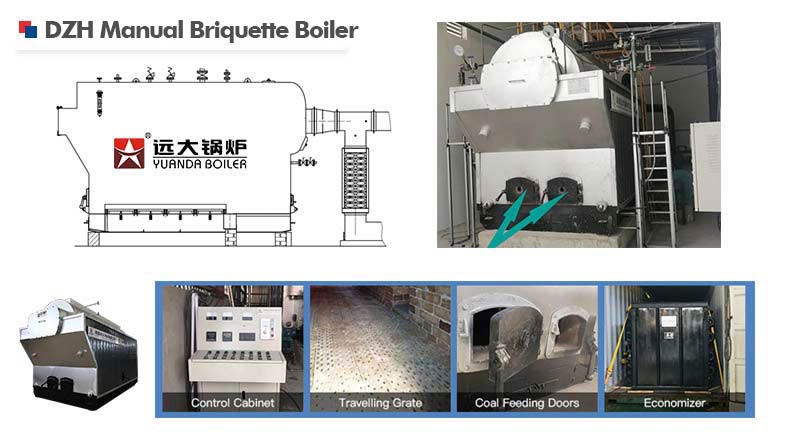

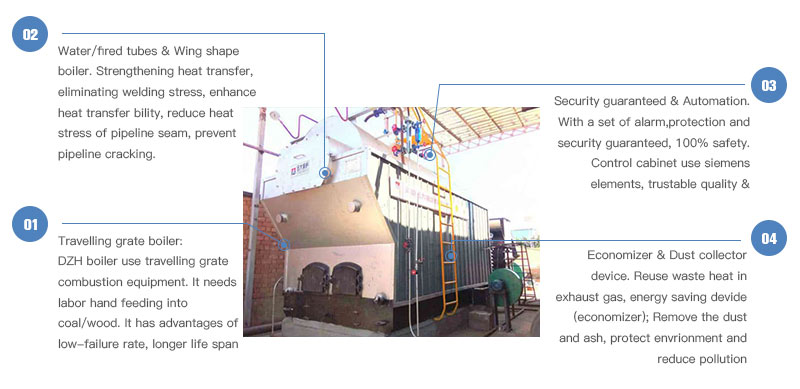

DZH Boiler Features
Travelling grate boiler
DZH boiler use travelling grate combustion equipment. It needs labor hand feeding into briquette. It has advantages of low-failure rate, longer life span
Water/fired tubes & Wing shape boiler
Strengthening heat transfer, eliminating welding stress, enhance heat transfer bility, reduce heat stress of pipeline seam, prevent pipeline cracking.
Security guaranteed & Automation
With a set of alarm,protection and security guaranteed, 100% safety. Control cabinet use siemens elements, trustable quality & control strictly
Economizer & Dust collector device
Reuse waste heat in exhaust gas, energy saving devide (economizer); Remove the dust and ash, protect envrionment and reduce pollutionPRODUCT LIST
