Hot Water Boiler For Hvac System
 Capacity: |
60 kw - 35 000 kw |
 Temperature: |
60 °C-115 °C |
 Fuel: |
Nature gas, lpg, exhuast gas, propane, diesel, heavy oil, dual fuel |
 Application: |
Heating Water, Center Heating For Buildings, Greenhouse, Hospital, School, Hotels, Drying, Washing.... |
| Certificates: |
ISO, CE, ASME, DOSH, EAC, CRN |

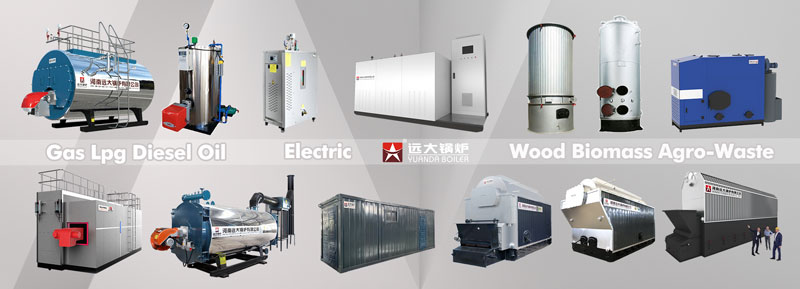

Yuanda Products: steam boiler, steam generator, hot water heater boiler, thermal oil boiler
Introduction

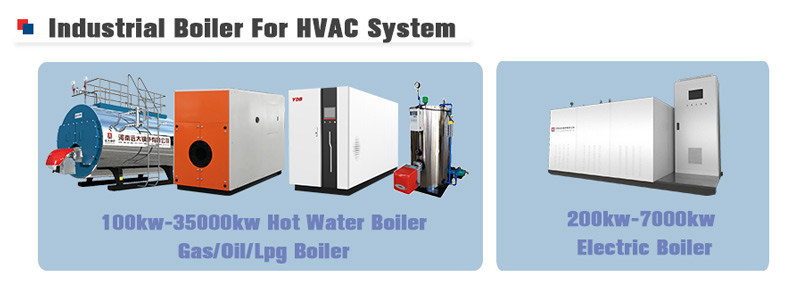

> Industrial Boiler In HVAC System
1. Heating Boiler thermal power in scale 100kw-35000kw, 60000kcal-30million-kcal
2. Fuel Power: Gas, Diesel, HFO, LPG, Electricity, Coal, Wood biomass, pellets, ricehusk, etc.
3. Yuanda Boiler manufacture industrial heat boiler for HVAC system. Generally, our hot water boiler widely used in buildings central heating (hotel, school, warehouse, greenhouse, buildings, etc)
MOST POPULAR are Clean-Energy Gas/Diesel/LPG Boiler and Electric Boiler.

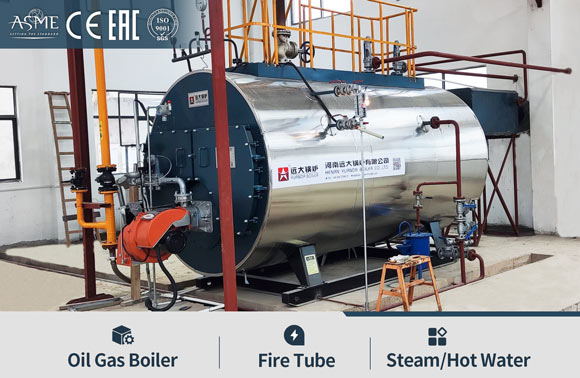

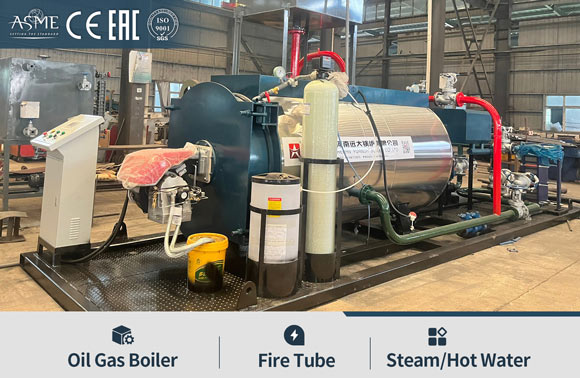

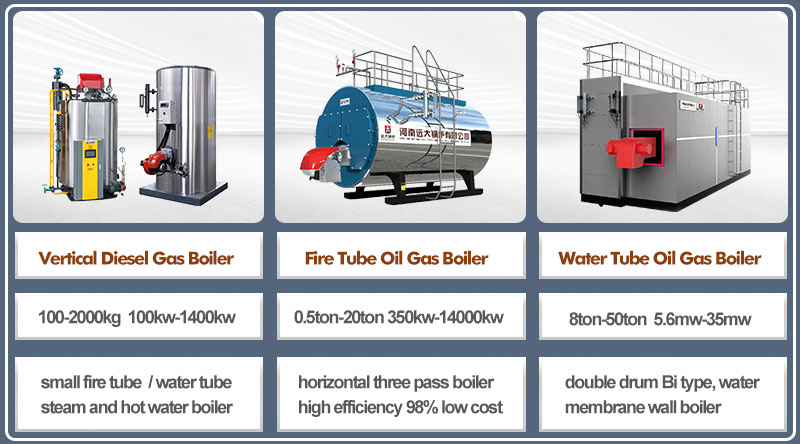

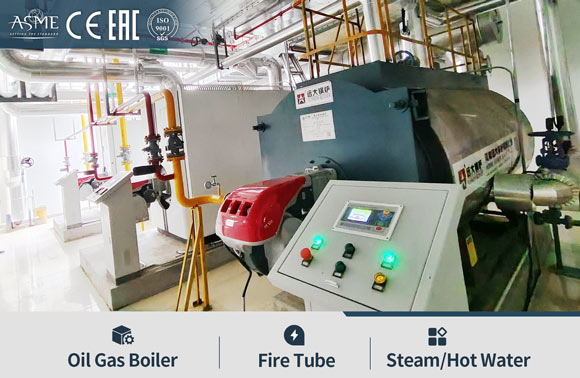

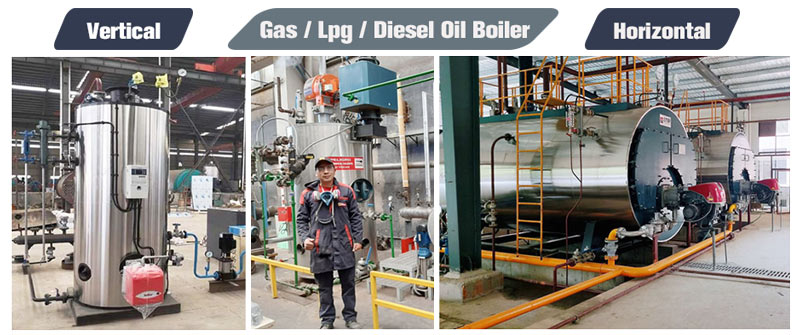

> Gas/Diesel Fire Tube Boiler
Most popular WNS series fire tube boiler, it is horizontal three pass fire tube structure boiler, with higher-efficiency up 99% & energy-saving & fully automatic running. Importantly, WNS series boiler has a lower emissions, environmental-friendly.

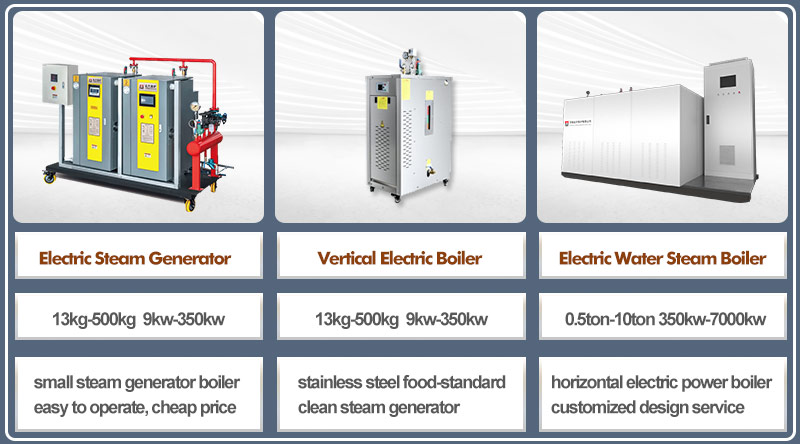

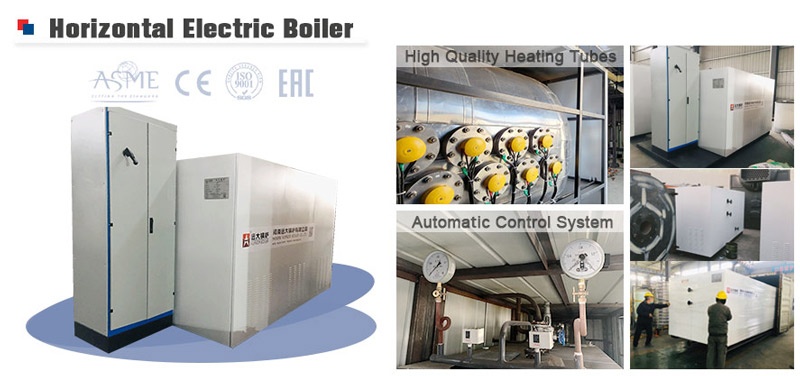

> Electrical Heated Boiler
Nowdays, Electric heating boiler is more and more popular, with advantages of No-pollution, Automatic-control, Simple-structure, Easy maintenance, Packaged delivery.
Hot sell electric hot water boiler in 250kg 350kw 700kw 1000kw 1400kw 2100kw 2800kw 3500kw.
Important thing is Electricity power consumption cost. (Depend on your local electricity source)

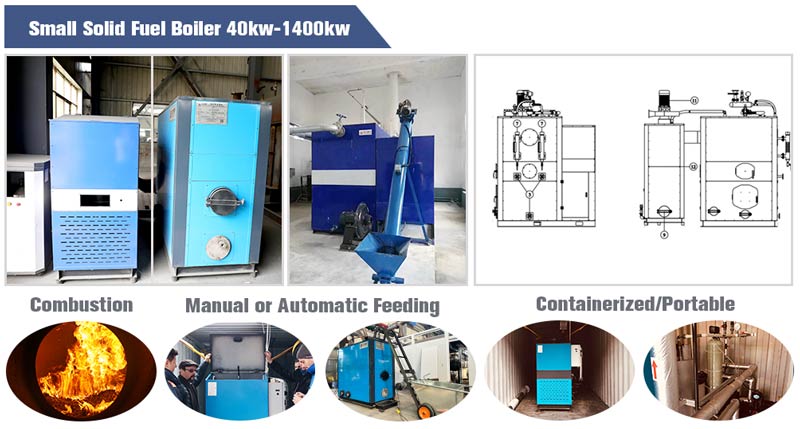

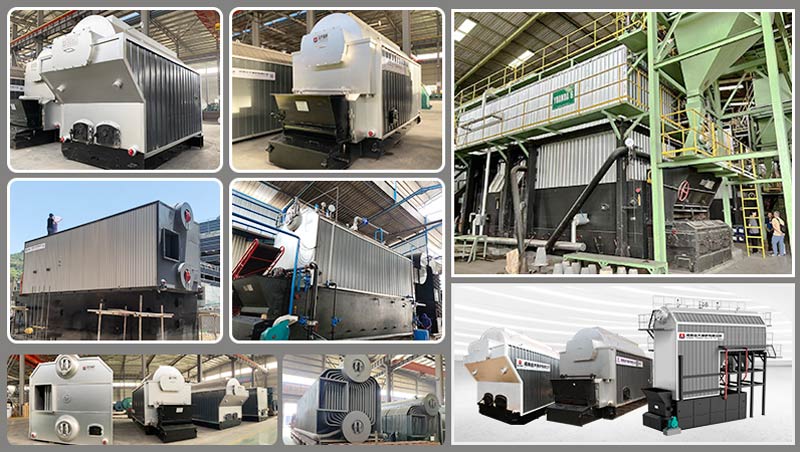

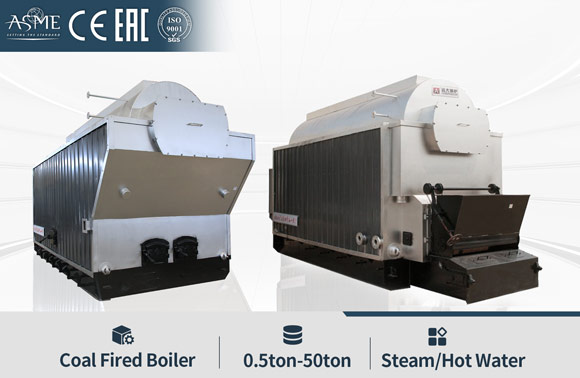

> Solid Fuel Coal / Biomass Boiler
Thermal heat 41kw to 35000kw
Industrial solid fuel wood biomass / coal fired hot water boiler.
Oil Gas Boiler Features
100% Safety
We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves
High Automation Boiler
Intelligient control panel of boiler, it controls the size of the flame of the burner, water level, pressure, temperature and other signals inside the boiler
Energy-Saving Boiler
Three pass boiler, three pass can extend the flue gas distance, enhance heat transfer and increase thermal efficiency. Full heat insulation condenser design
Environmental Friendly
WNS series boiler, it could satisfy all countries' environment NOx emission limit standard. We are on the way to green environment protectionTechnical Parameter
| Oil Gas Hot Water Boiler | Rated power(MW) | Rated pressure (Mpa) | Rated output temperature(℃) | Rated return water temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.35 | 0.35 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 31.6 | 36.6 | 2.65 |
| WNS0.7 | 0.7 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 60.4 | 69.3 | 4.66 |
| WNS1.4 | 1.4 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 122.8 | 146.1 | 6.53 |
| WNS2.1 | 2.1 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 192.3 | 227.1 | 7.3 |
| WNS2.8 | 2.8 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 246.1 | 286.5 | 8.1 |
| WNS4.2 | 4.2 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 367.1 | 412.6 | 15.1 |
| WNS5.6 | 5.6 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 490.2 | 543.7 | 18.2 |
| WNS7.0 | 7.0 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 593.6 | 660.7 | 25.6 |
| WNS10.5 | 10.5 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 936.5 | 998.8 | 29.1 |
| WNS14.0 | 14.0 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 1200.8 | 1330.7 | 47.8 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Supply Boiler & Accessories
Boiler Solution
Solutions for Various Industries
Provide customized hot water boiler solutions for hotels, hospitals, residential buildings, food processing plants, and industrial facilities requiring reliable hot water or central heating.
Customized for Your Hot Water Demand
Customize boiler capacity, hot water output, and supply temperature according to heating load, water consumption, and application requirements.
Energy Consumption & Operating Cost Analysis
Estimate fuel consumption and operating costs based on heating demand, operating hours, return water temperature, and local energy prices to help identify a suitable heating solution.
Complete Hot Water System Configuration
Integrate circulation pumps, expansion tanks, water treatment equipment, storage tanks, and temperature control systems according to project requirements.
Why Choose us
Complete Boiler Solutions – Customized boiler systems based on your required capacity, fuel type, working pressure, and application.
International Certifications – Manufacturing capabilities supported by ASME, ISO 9001, CE PED, EAC, DOSH, and CRN certifications, as applicable to the specific model and market.
Global Project Experience – Boiler equipment supplied to over 135 countries and regions, with installation and commissioning services completed in more than 60 countries.
Direct Manufacturer Support – Professional technical assistance from project consultation and equipment selection to installation and after-sales service.
Henan Yuanda Boiler Corp Ltd
We are a fully integrated manufacturer specializing in the design, engineering, manufacturing, installation, and after-sales service of industrial boilers and incinerators. Our products are available with internationally recognized certifications, including ASME, CE PED, ISO 9001, EAC, DOSH, and CRN.
With nearly 70 years of manufacturing experience and more than 20 years of export expertise, we supplied industrial heating equipment to over 135 countries and regions across Asia, Europe, Africa, North America, South America, and Oceania.
