Hospital Medical Incinerator 20kg-1000kg/hour
 Product Brand: |
Yuanda YDF Incinerator |
 Product Model: |
20kg 30kg 50kg 100kg 150kg 200kg 300kg 400kg 500kg 750kg |
 Available Fuel: |
Diesel, Gas, Waste Oil, Lpg |
 Available Industries: |
Hospitals, clinical, animal breeding farms slaughterhouse, waste management company, pet cremation |
Yuanda Products:#Hospital-Medical-Incinerator #Pet-Animal-Waste-Incinerator #Garbage-Waste-Incinerator #Portable-Mobile-Incinerator
Introduction
> Yuanda Medical Incinerator
Certified by ISO CE, ensuring high quality and compliance with international standards.

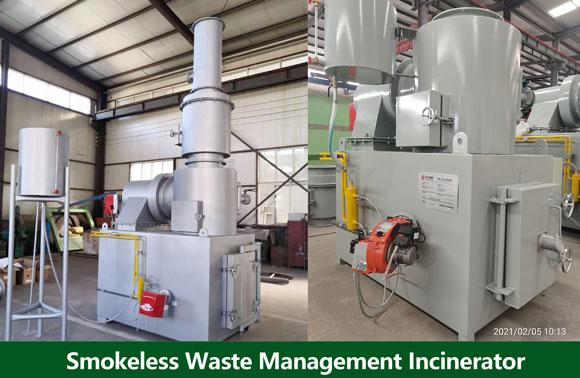

> Smokeless Incinerator
Hot Selling Incinerator capacities in 20kg 30kg 50kg 100kg 150kg 200kg 300kg 400kg 500kg 750kg 1000kg
Suitable for: General medical waste, Pathological waste, Household waste, Small or large pets, Dead animal carcass, Type I–Type IV red bag waste, General farm waste, Livestock Bedding (old/soiled), Fallen Livestock, Butchering Waste, Chickens, ducks, geese, broilers, birds.
Waste Management Incinerator
Use of gasification burning, mixed-burning, and burn treatment technology, makes smoke and dust content lower than the state emission standards.
Medical Waste Incinerator
Incinerators adopt high temperature heating technology. Harmful substances in waste are pyrolyzed and destroyed at high temperatures 1300°C.
Related: Pet Animal Incinerator
Typical incinerator & sliding door type incinerator, suitble for small & large pet cremation service.
20kg-1000kg Animal Incinerator

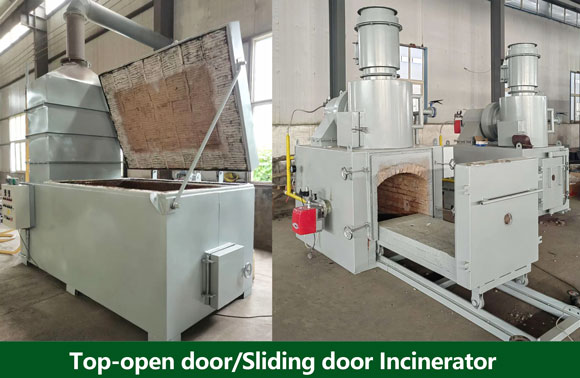

No smoke No pollution incinerator for pet animal waste. Manual type or Automatic type incinerator.Top-open Door Incinerators
It is top open door incinerator, can be manual feeding or automatic feeding. Customized design according to your demand.
Large Volume Incinerator
100kg/h 200kg/h 300kg/h 400kg/h 500kg/h 750kg/h waste management incinerator.Portable Mobile Incinerator

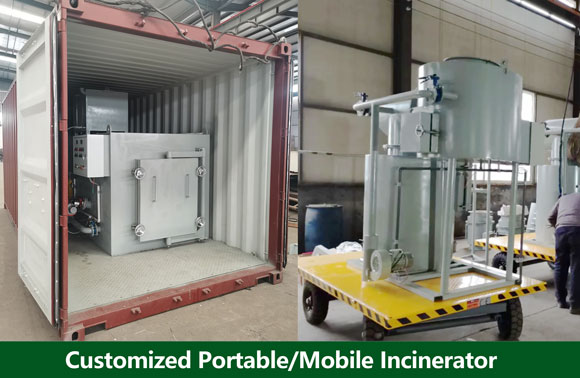

Portable/mobil incinerator, you can move it to everywhere when you use it. Mostly in Skid mounted wheels type or Containerised type.
20kg-750kg/hour Incinerator
Diesel/Gas fired incinerator, portable mobile incinerator for waste management.> Simple to Install
1. All parts detachable to small pieces - convenient for transportation.
2. Flange connections reserved - easy to assemble with bolt at worksite.
3. Clear marks at wires & flanges - as assemble guidance.
> YDF Incinerator Cases
Yuanda Products Have Sold to 132 Countries & Regions, Global Sales & Services Worldwide
> Incinerator Package & Delivery

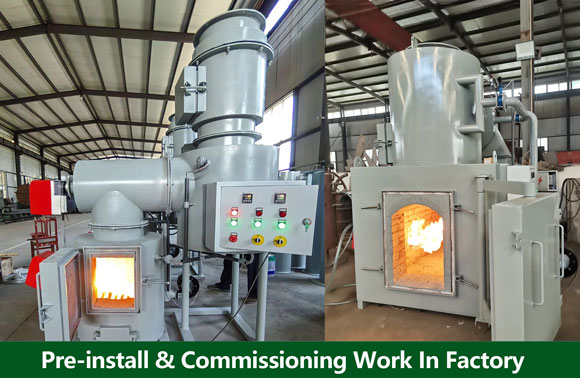

We will pre-install the incinerator in factory, also do the commissioning work, then all parts detachable to small pieces for delivery.
> Yuanda Factory & Customer Visits
1. Yuanda Company established since1956, mainly manufacture industrial boiler, incinerators.
2. Global sales with high quality products, with ISO CE ASME Certificates.
Technical Parameter
| Models | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 | |
| Processing Capacity (kg/batch) | 10-20 | 20-30 | 30-50 | 50-100 | 100-150 | 200-300 | 300-500 | |
| Working Hours Per Batch Cycle* (min) | 90-120 | |||||||
| Primary Chamber Volume (m3) | 0.2 | 0.38 | 0.5 | 1 | 1.5 | 2.4 | 3.5 | |
| Waste Feeding Gate Size (mm) | 380 x 480 | 480 x 600 | 620 x 800 | 700 x 900 | 760 x 960 | 900 x 1100 | 1080 x 1280 | |
| Temperature (℃) | Primary Chamber | 900 | ||||||
| Second Chamber | 1300 | |||||||
| Smoke Residence Time (s) | > 2 sec in second chamber | |||||||
| Applicable Waste Type | Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component | |||||||
| Primary Burner - Baltur Italy | BTL-6, 0.11kw | BTL-6, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-14, 0.18kw | |
| Second Burner - Baltur Italy | BTL-10, 0.11kw | BTL-14, 0.18kw | BTL-14, 0.18kw | BTL-20, 0.18kw | BTL-20, 0.18kw | BTL-26, 0.25kw | BTL-35, 0.37kw | |
| Total Diesel** Consumption (litre/h) | 11-18 | 11-18 | 14-23 | 16-35 | 16-35 | 20-40 | 38-57 | |
| FD Fan Power (kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75+0.75 | |
| Applicable Voltage | 380V 3Phase / 220V 1Phase | |||||||
| Outer Dimensions (m) | 1.6 x 1.3 x 2.65 | 1.45 x 0.9 x 2.6 | 1.8 x 1.2 x 3 | 1.86 x 1.4 x 3.2 | 2.1 x 1.5 x 3.5 | 2.25 x 1.6 x 3.8 | 3.0 x 2.0 x 4.8 | |
| Chimney Dimensions (mm) | φ280 x 6000 | φ280 x 6000 | φ300 x 9000 | φ330 x 9000 | φ380 x 9000 | φ400 x 9000 | φ460 x 9000 | |
| Weight (kg) | 2000 | 3000 | 5000 | 6800 | 8000 | 9600 | 15000 | |
| Manufacturing Standard | GB 18484-2020 (equals to EPA or EU standards) | |||||||
Waste Disposal
Incinerator Advantages
Devote To Use Easily
Easy operation, full automatically, one worker can operate it easily. Easy installation Well-debugged in factory. On-site Flange connection.
Firebrick
The interior adopts high temperature firebrick, which can withstand high temperature 1700ºC, the outer wall adopts thermal insulation brick to isolate heat.
High temperature pyrolysis technology
With the Italian baltur burner, the highest temperature can reach 1200 degrees Celsius, which can achieve the effect of sterilization and disinfection.
Smokeless & Odorless
Two-stage combustion technology, comply with national emission standards. Stable operation, low failure rate.PRODUCT LIST
