Pet Cat Dog Animal Waste Incinerator 10kg-1000kg
 Product capacity: |
Yuanda YDF Incinerator |
 Working pressure: |
Capacity in 20kg 30kg 50kg 100kg 150kg 200kg 300kg 400kg 500kg 750kg |
 Available fuel: |
Gas, Diesel, Lpg, Waste oil |
 Available industries: |
For cats, dogs, cow, sheep, pig, horse. Widely used in Pet Cremation Business, Farm, Slaughter, Zoos, etc. |
Yuanda Products:#Pet-Cremation-Incinerator #Animals-Carcass-Incinerator #Garbage-Waste-Incinerator #Portable-Mobile-Incinerator
Introduction
Pets Animals Incinerator
YDF Incinerator: volume capacity in 20kg 30kg 50kg 100kg 150kg 200kg 300kg 400kg 500kg 750kg
Pet Animals Cremation Incinerators adopt high temperature heating technology. Harmful substances in waste are pyrolyzed and destroyed at high temperatures 1300°C. Importantly, incinerator equipped with waste gas treatment device, incinerator running eco-friendly.

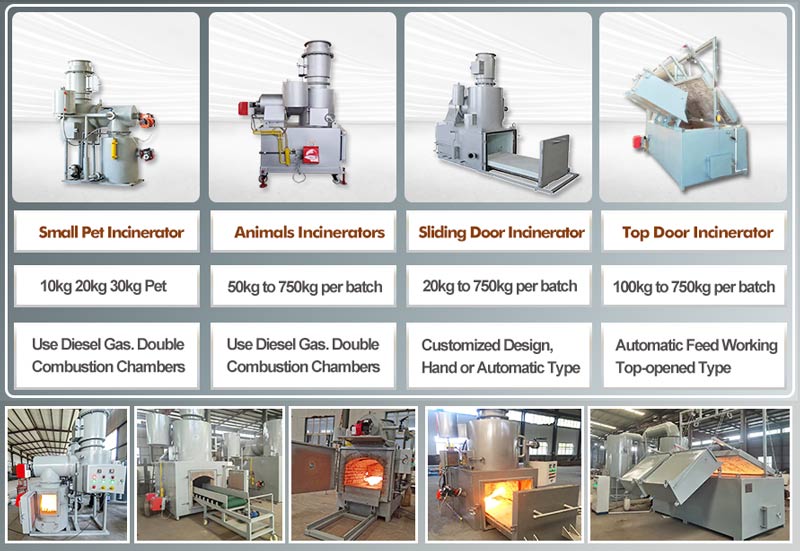

Noted: Can follow up customer needs to customize different specifications, different needs of the incinerator, including up door, mobile, automatic feeding, electric door, horizontal furnace type and other different needs of the incinerator
Incinerator Features
Our incinerator is provided with the currently most advanced incineration way, i.e., primary pyrolysis gasification + co-firing of surrounding wind +secondary incineration +burnout treatment.
(1) The incinerator temperature reaches above the 1300°C continuously to ensure smokeless and tasteless and discharge up to standard.
(2) Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.
(3) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).
(4) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
Easy to Install & Operation
We will provide full service for the equipment you have purchased, assisting with installation and providing operational guidelines. If you have any questions, please feel free to contact us.
1. All parts detachable to small pieces - convenient for transportation.
2. Flange connections reserved - easy to assemble with bolt at worksite.
3. Clear marks at wires & flanges - as assemble guidance.

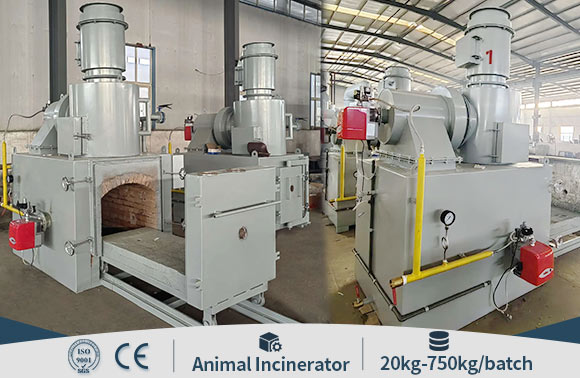

YDF Incinerator Cases
Yuanda Products Have Sold to 132 Countries & Regions, Global Sales & Services Worldwide

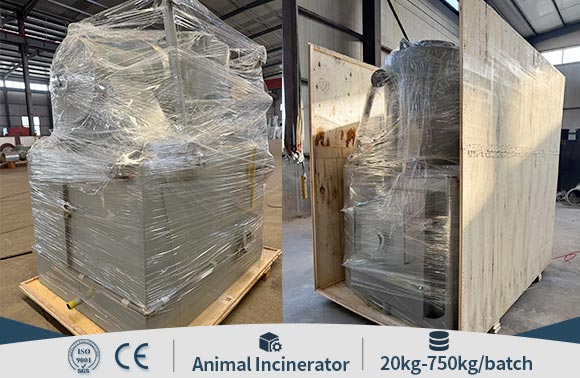

Incinerator Package & Delivery
We will pre-install the incinerator in factory, also do the commissioning work, then all parts detachable to small pieces for delivery.
Yuanda Incinerator Factory
1. Yuanda Company established since1956, mainly manufacture industrial boiler, incinerators.
2. Global sales with high quality products, with ISO CE ASME Certificates.
Technical Parameter
| Models | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 | |
| Pet/Animals Weight (kg/batch) | 10-20 | 20-30 | 30-50 | 50-100 | 100-150 | 200-300 | 300-500 | |
| Working Hours Per Batch Cycle* (min) | 90-120 | |||||||
| Primary Chamber Volume (m3) | 0.2 | 0.38 | 0.5 | 1 | 1.5 | 2.4 | 3.5 | |
| Waste Feeding Gate Size (mm) | 380 x 480 | 480 x 600 | 620 x 800 | 700 x 900 | 760 x 960 | 900 x 1100 | 1080 x 1280 | |
| Temperature (℃) | Primary Chamber | 900 | ||||||
| Second Chamber | 1300 | |||||||
| Smoke Residence Time (s) | > 2 sec in second chamber | |||||||
| Applicable Waste Type | Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component | |||||||
| Primary Burner - Baltur Italy | BTL-6, 0.11kw | BTL-6, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-14, 0.18kw | |
| Second Burner - Baltur Italy | BTL-10, 0.11kw | BTL-14, 0.18kw | BTL-14, 0.18kw | BTL-20, 0.18kw | BTL-20, 0.18kw | BTL-26, 0.25kw | BTL-35, 0.37kw | |
| Total Diesel** Consumption (litre/h) | 11-18 | 11-18 | 14-23 | 16-35 | 16-35 | 20-40 | 38-57 | |
| FD Fan Power (kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75+0.75 | |
| Applicable Voltage | 380V 3Phase / 220V 1Phase | |||||||
| Outer Dimensions (m) | 1.6 x 1.3 x 2.65 | 1.45 x 0.9 x 2.6 | 1.8 x 1.2 x 3 | 1.86 x 1.4 x 3.2 | 2.1 x 1.5 x 3.5 | 2.25 x 1.6 x 3.8 | 3.0 x 2.0 x 4.8 | |
| Chimney Dimensions (mm) | φ280 x 6000 | φ280 x 6000 | φ300 x 9000 | φ330 x 9000 | φ380 x 9000 | φ400 x 9000 | φ460 x 9000 | |
| Weight (kg) | 2000 | 3000 | 5000 | 6800 | 8000 | 9600 | 15000 | |
| Manufacturing Standard | GB 18484-2020 (equals to EPA or EU standards) | |||||||
Waste Disposal
Incinerator Advantages
Devote To Use Easily
Easy operation, full automatically, one worker can operate it easily. Easy installation Well-debugged in factory. On-site Flange connection.
Firebrick
The interior adopts high temperature firebrick, which can withstand high temperature 1700ºC, the outer wall adopts thermal insulation brick to isolate heat.
High temperature pyrolysis technology
With the Italian baltur burner, the highest temperature can reach 1200 degrees Celsius, which can achieve the effect of sterilization and disinfection.
Smokeless & Odorless
Two-stage combustion technology, comply with national emission standards. Stable operation, low failure rate.PRODUCT LIST
