Introduction
Animal & Agricultural Waste Incinerator
Volume in 20kg 30kg 50kg 100kg 150kg 200kg 300kg 400kg 500kg 750kg
Agricultural Animals Incinerators adopt high temperature heating technology. Harmful substances in waste are pyrolyzed and destroyed at high temperatures 1300°C. Importantly, incinerator equipped with waste gas treatment device, incinerator running eco-friendly.
Agricultural waste can include anything from fallen stock and general farming waste, to animal by-product which includes a variety of different products, including live animals rejected from abattoirs because they’re infected, to carcases of animals used in experiments.
Noted: Customized service according your needs, please feel free to send your requirements.
Incinerator Features
Our incinerator is provided with the currently most advanced incineration way, i.e., primary pyrolysis gasification + co-firing of surrounding wind +secondary incineration +burnout treatment.
(1) The incinerator temperature reaches above the 1300°C continuously to ensure smokeless and tasteless and discharge up to standard.
(2) Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.
(3) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).
(4) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
Easy to Install & Operation
We will provide full service for the equipment you have purchased, assisting with installation and providing operational guidelines. If you have any questions, please feel free to contact us.
1. All parts detachable to small pieces - convenient for transportation.
2. Flange connections reserved - easy to assemble with bolt at worksite.
3. Clear marks at wires & flanges - as assemble guidance.
Technical Parameter
Models | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 | |
Solid Waste Weight (kg/batch) | 10-20 | 20-30 | 30-50 | 50-100 | 100-150 | 200-300 | 300-500 | |
Working Hours Per Batch Cycle* (min) | 90-120 | |||||||
Primary Chamber Volume (m3) | 0.2 | 0.38 | 0.5 | 1 | 1.5 | 2.4 | 3.5 | |
Waste Feeding Gate Size (mm) | 380 x 480 | 480 x 600 | 620 x 800 | 700 x 900 | 760 x 960 | 900 x 1100 | 1080 x 1280 | |
Temperature (℃) | Primary Chamber | 900 | ||||||
Second Chamber | 1300 | |||||||
Smoke Residence Time (s) | > 2 sec in second chamber | |||||||
Applicable Waste Type | Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component | |||||||
Primary Burner - Baltur Italy | BTL-6, 0.11kw | BTL-6, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-14, 0.18kw | |
Second Burner - Baltur Italy | BTL-10, 0.11kw | BTL-14, 0.18kw | BTL-14, 0.18kw | BTL-20, 0.18kw | BTL-20, 0.18kw | BTL-26, 0.25kw | BTL-35, 0.37kw | |
Total Diesel** Consumption (litre/h) | 11-18 | 11-18 | 14-23 | 16-35 | 16-35 | 20-40 | 38-57 | |
FD Fan Power (kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75+0.75 | |
Applicable Voltage | 380V 3Phase / 220V 1Phase | |||||||
Outer Dimensions (m) | 1.6 x 1.3 x 2.65 | 1.45 x 0.9 x 2.6 | 1.8 x 1.2 x 3 | 1.86 x 1.4 x 3.2 | 2.1 x 1.5 x 3.5 | 2.25 x 1.6 x 3.8 | 3.0 x 2.0 x 4.8 | |
Chimney Dimensions (mm) | φ280 x 6000 | φ280 x 6000 | φ300 x 9000 | φ330 x 9000 | φ380 x 9000 | φ400 x 9000 | φ460 x 9000 | |
Weight (kg) | 2000 | 3000 | 5000 | 6800 | 8000 | 9600 | 15000 | |
Manufacturing Standard | GB 18484-2020 (equals to EPA or EU standards) |
Our Supply Equipment List
Different Usage
Medical waste incinerator
Smallest 20kg/hour incinerator, largest 750kg/hour incinerator. Widely for hospital clinical medical waste.Pet cat dog incinerator

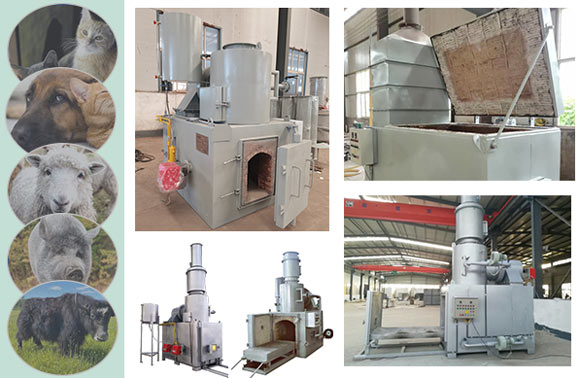

Small size incinerator for pet cremation service, Suggest YDF20 YDF30 YDF50 YDF100.Farm Poultry Incinerator
Dead aniamls & animals carcass waste incinerator, for Farm Slaughterhouse Poultry agricultural waste.Waste Management Plant
Waste management plant use incinerator for solid waste, domestic waste, medical waste, animals waste, industrial waste.PRODUCT LIST
