Industrial Hot Water Steam Boiler
 Product Brand: |
Yuanda Boiler Since 1956 |
 Product Model: |
10kg-75000kg, 35kw-35000kw |
 Available Fuel: |
Gas/lpg/oil, Electric, Coal/biomass/wood/solid fuel |
 Available Industries: |
For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
Yuanda Products:#Steam-Boiler #Hot-Water-Boiler #Steam-Generator #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Exhaust-gas-boiler
Introduction
> Industrial Water Steam Boiler

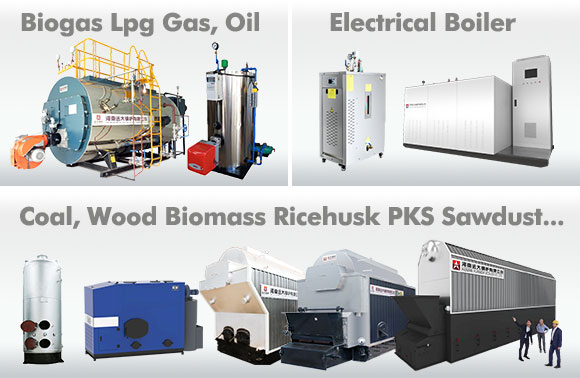

Boiler Using by Different Fuel/Power Source
Manufacture Standard: Certificated by ASME, CE, ISO, EAC, DOSH, TUV, BV, ensuring high quality and compliance with international standards.

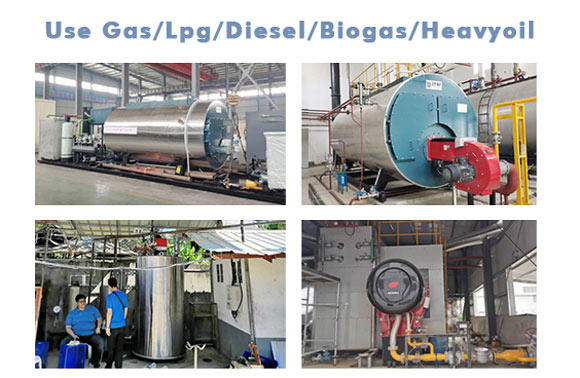

Fire Tube Oil Gas Boiler
Industrial boiler powered by diesel/gas/lpg/heavy oil/waste oil/biogas/dual fuel. Can be customized in skid-mounted type/mobile containerised type.
Water Tube Oil Gas Boiler
SZS series water tube oil gas boiler, with double drums longitudinal type “D” shape.
Vertical Diesel/Gas Boiler
Vertical diesel gas boiler, with smaller occupied area. Small hot water & steam boiler in 100kg-2000kg, 100kw-1400kw.

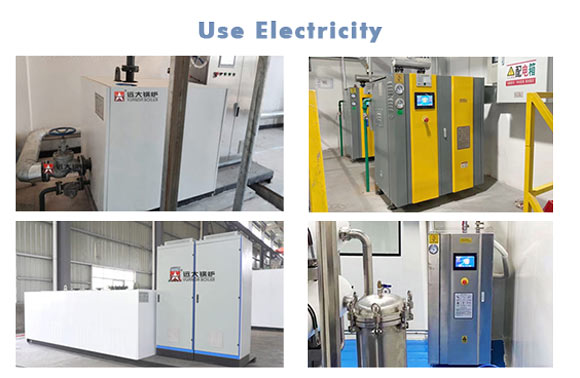

Electric Steam Generator Boiler Vertical
Industrial electric boiler in vertical, small electric steam generator boiler, small electric hot water boiler. Capacity in 9kw-350kw, 10kg-500kg.
Electric Boiler Horizontal
Horizontal electric steam boiler, electric hot water boiler. Capacity in 500kg-6000kg, 350kw-4200kw.

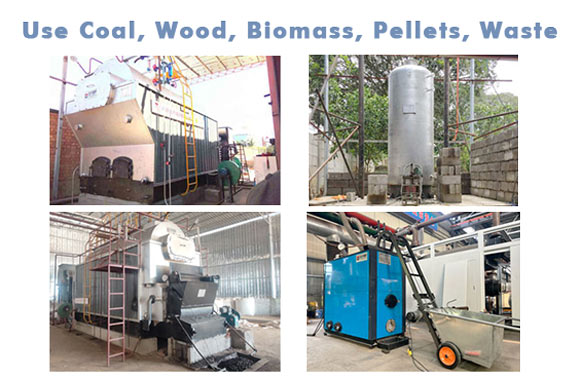

Chain Grate Coal Wood Biomass Boiler
Industrial solid fuel boiler, automatic feeding chain grate boiler, water-tube & fire-tube structure grate stoker boiler.
Small Coal Wood Biomass Boiler
Small boiler burning wood/coal/biomass pellet, widely for small industries processing, district heating, etc.
Water Tube Coal Biomass Boiler
SZL series industrial water tube boiler, with chain grate or reciprocating grate. Larger space combustion furnace, higher thermal efficiency. Capacity in 4ton-50ton.
Portable/Mobile Containerised Boiler

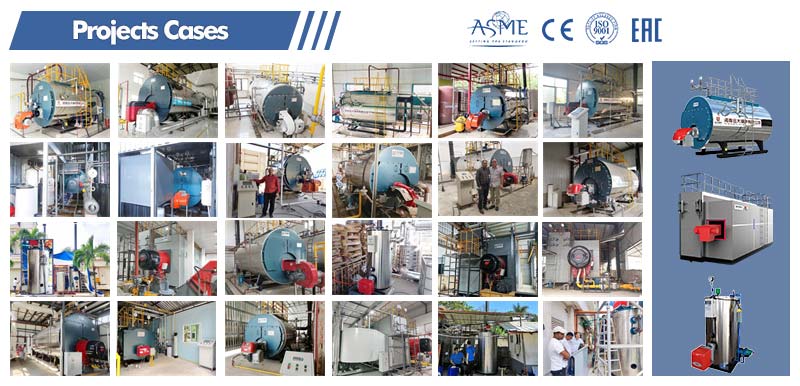

Portable skid mounted boiler, Portable mobile containerised boiler.Oil Diesel Gas Fired Boiler Projects

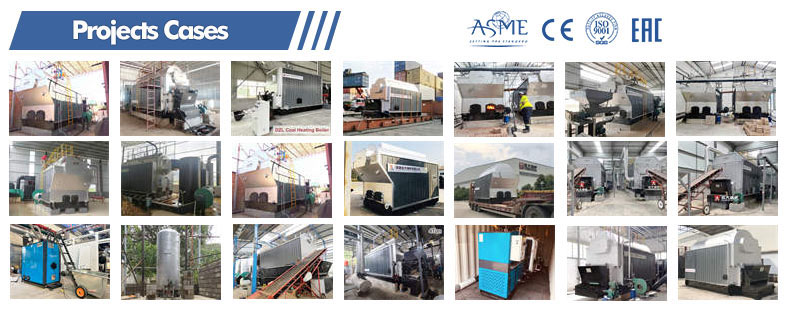

Coal Wood Biomass Boiler Projects
Technical Parameter
| Oil Gas Fired Boiler | Rated capacity(t/h) | Rated pressure | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5 | 0.5 |
1bar-25ba 0.1mpa-2.5mpa |
100°C-350°C | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | 184/194/204 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 | ||
| WNS2 | 2 | 184/194/204 | ＞98 | 60-75 | 129.3 | 140.3 | 8 | ||
| WNS3 | 3 | 184/194/204 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 | ||
| WNS4 | 4 | 184/194/204 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 | ||
| WNS6 | 6 | 184/194/204 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 | ||
| WNS8 | 8 | 184/194/204/226 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 | ||
| WNS10 | 10 | 184/194/204/226 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 | ||
| WNS15 | 15 | 184/194/204/226 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 | ||
| WNS20 | 20 | 184/194/204/226 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 | ||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Global Sales & Services
Yuanda Company Since 1956
China Leading Manufacturer For Steam Boiler, Hot Water Boiler, Thermal Oil Boiler. Global Sales Cover 132 Countries & Regions, With ISO CE ASME DOSH EAC.
Professional Technican Support
With 68 years manufacture experience, Yuanda Boiler has abundant experience on customizied solution for projects, one to one service.
15Years Export Experience
Mature boiler export experience, do not need warry about the import formalities. Professional sales manager will serve you all the time.
Trustable Engineer Services
Yuanda senior engineers are able to customers' site for service. In many countires, we have some partner companies that can help install boilers.FAQ of Steam Boiler
What are the available fuel for boiler?
Including gas, lpg, diesel, heavy oil, CNG, biogas, dual fuel, electricity, coal, biomass, wood, bagasse, husk, ricehusk, coconuts, palm shells...
Can you make customized boiler design according our request?
Yes, we have experienced engineer service team, will give our best economic and energy-saving design boiler. You need send your requirments to us, then we will give our response within 24 hours.
Accept steam boiler, do you also have other machine?
Our Products: steam boiler, hot water boiler, thermal oil heater boiler, steam generator, steam turbine, animals/medical incinerator, exhaust waste gas boiler, rice milling machine, ...
