YYQW Gas/Diesel Thermal Oil Boiler
 Product capacity: |
200kw-14000kw |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Natural gas, lpg, exhuast gas, propane, diesel, heavy oil, waste oil, dual fuel |
 Available industries: |
For heating oil, such as in Food industry, Textile industry, Packaging industry, Bitumen, Plywood factory, Refineries... |
Yuanda Products:#Thermic-Fluid-Heater #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Steam-Boiler #Hot-Water-Boiler #Exhaust-Gas-Boiler
Introduction
Gas/Lpg/Diesel Thermal Oil Boiler
Horizontal or Vertical type, Automatic thermal oil boiler with burner (brand of baltur, riello, unigas, ecoflame, oilon, etc.)
Structure: YY(Q)W thermal oil boiler adopts a horizontal chamber-fired three-coil structure, and the body is composed of an outer coil, a middle coil and an inner coil.

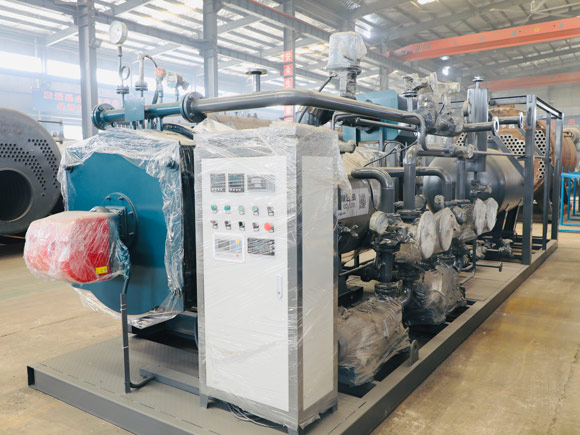

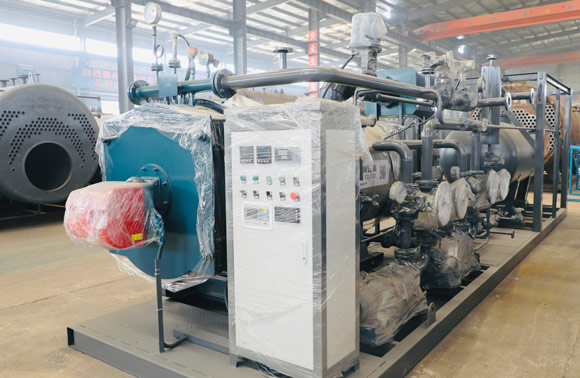

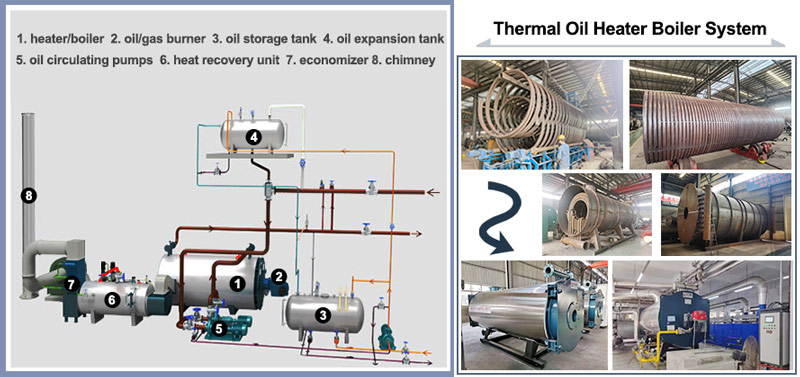

Whole System including oil heater boiler proper, burner, control cabinet, oil expansion tank, oil storage tank, oil circulating pumps, economizer, chimney, pipes, valves, gauges, etc.
Advantages of YYQW thermal oil boiler
Energy efficient
1. Close packed disc tube heating surface, heating surface layout adequacy, multi-backhaul heat exchanger.
2. Furnace size match with burning flame, radiation heat transfer efficiency.
3. Positive pressure combustin, so that combustion efficiency is greatly improved.
4. Boiler quality insulation materials and special construction technology, less heat loss, ther exhaust gas temperature is low, the high thermal efficiency of ther boiler.
5. By fully rational surface layout, boiler warming fast start.
Safe and reliable
1. Close-packed disc tube heating surface heating surface arrangement sufficient to reduce the tube sheet heat load, conducting oil safer to use.
2. The boiler operation monitor remote and nearly complete automatic control and monitoring instrumentation, safe, reliable, easy to operate
Easy to install
Boiler full assembled, compact structure, small footprint, is extremely easy to install and flexible, as long as the boiler is located based on.

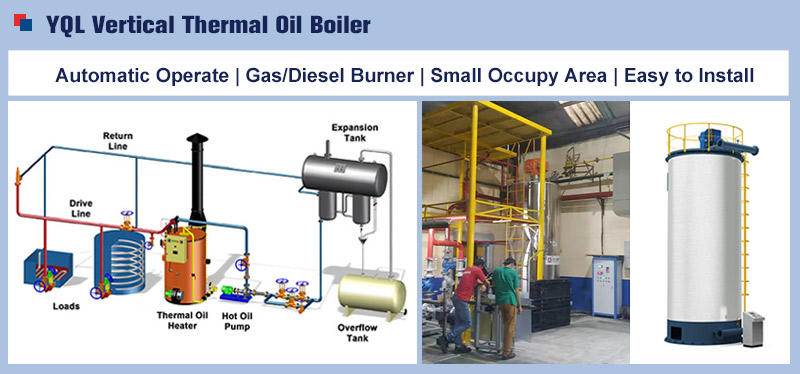

Related:Vertical Thermal Oil Boiler

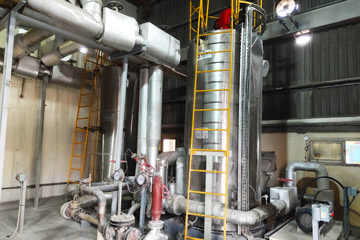

Difference in appearance, vertical type boiler help saving boiler roon space, smaller occupy area.
Application of thermal oil boiler
1. Fuel applicable: Electric, Gas, Lpg, Diesel, Heavy Oil, Coal, Wood, Biomass, Agro Waste.
2. Application industry: Cement industry, Chemical/petrochemical industry, Polymer industry, Textile industry, Leather industry, Oil industry, Glue industry, Food processing industry, Metal industry, Tyre industry, Bitumen & Tar processing industry, Paper mills industry, Wood industry, Soap Detergent industry, Pharmaceutical industry, Paint Varnish industry Packing Packaging industry, Glass industry, Industrial Laundries
> How to Choose A Suitable Boiler
1. Basic Boiler Information For Your Project
Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
Heat medium options: saturated/superheated steam, hot water, thermal oil.
Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
Layout options: Vertical boiler, Horizontal boiler.
Operating-mode options: Automatic, manual
Note: please feel free to send all requirements, we could help you better.
2. Calculating Running Cost
Specific consumption analysis report
Different types boiler running consumption comparison analysis report
(Note: Report is based on your local energy source price)
3. Boiler Accessories (essential or optional)
Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.
Note: Any special request, please send all details.
Technical Parameter
| YYQ(W) Series Thermal Oil Boiler Technical Parameter | |||||||
| Model | Rated power(KW) | Rated pressure (Mpa) | Thermal oil temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||
| YY(Q)W-700Y(Q) | 700 | 0.8/1.0 | 250-320 | ＞96 | 61.3 | 73.6 | 3 |
| YY(Q)W-1400Y(Q) | 1400 | 0.8/1.0 | 250-320 | ＞96 | 122.6 | 147.1 | 4 |
| YY(Q)W-3000Y(Q) | 3000 | 0.8/1.0 | 250-320 | ＞96 | 249.2 | 296.4 | 10 |
| YY(Q)W-3500Y(Q) | 3500 | 0.8/1.0 | 250-320 | ＞96 | 305.6 | 366.8 | 10.2 |
| YY(Q)W-4200Y(Q) | 4200 | 0.8/1.0 | 250-320 | ＞96 | 367.5 | 436.6 | 16.5 |
| YY(Q)W-5600Y(Q) | 5600 | 0.8/1.0 | 250-320 | ＞96 | 489.6 | 586.8 | 23.6 |
| YY(Q)W-7000Y(Q) | 7000 | 0.8/1.0 | 250-320 | ＞96 | 612.3 | 726.9 | 28 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||
Our Supply Equipment List
Features of Oil Boiler
Compace coil tube structure
Horizontal chamber combustion three coil structure, its body is composed of outer coil, middle coil, inner coil and rear coil.
Wet back sturcture
Unique design for heating surface in end of boiler, somke chamber wet back sturcuture, make lower heat loss, improve thermal efficiency 2%-3%.
External oil tank
The design of the external oil collecting tank prevents the slow flow of grease carbonization and avoids accidents.
100% safety runing & best insulation
Double layer 12cm aluminum silicate insulation. Sealed tightly to avoid air leaks. Over oil temperature/over smoke temperature/low flow alarm.FAQ Thermal Oil Boiler
Question: How do thermal oil heaters work?
Answer: Thermal oil heaters circulate a heat-transfer fluid (thermal oil) through a closed system. The oil is heated in a furnace and then passed through a heat exchanger, where it transfers heat to the process or equipment. This system allows for efficient heat transfer at high temperatures without high pressure.
Question: What's thermal oil heating temperature ?
Answer: Mostly, heating system for Thermal Fluids, operate at very high temperatures up to 400°C or higher.
