Coal Boiler

Product capacity: 0.3-75t/h | 100-50000kw | 10-4000hp
Working pressure: 0.1Mpa-3.8Mpa 1bar-38bar
Available fuel: Coal, wood, biomass, jhute, coconuts, palm shells, ricehusk, solid waste
Available industries: For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel...

Yuanda Products:#Steam-Boiler #Hot-Water-Boiler #Steam-Generator #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Exhaust-gas-boiler

Introduction

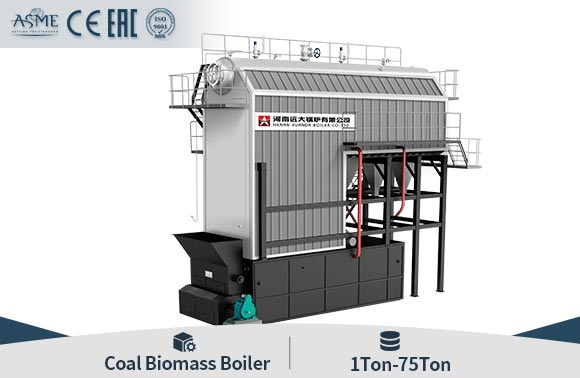

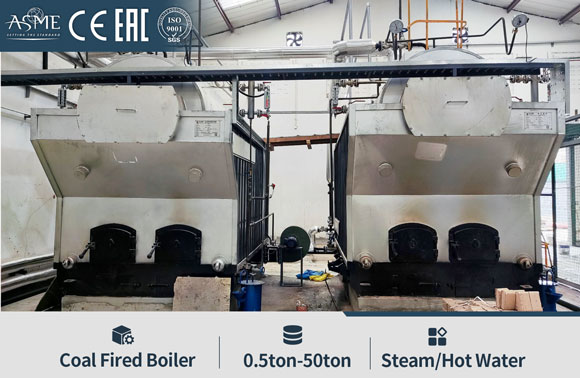

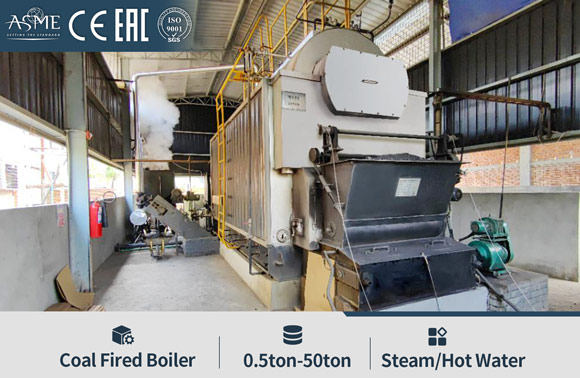

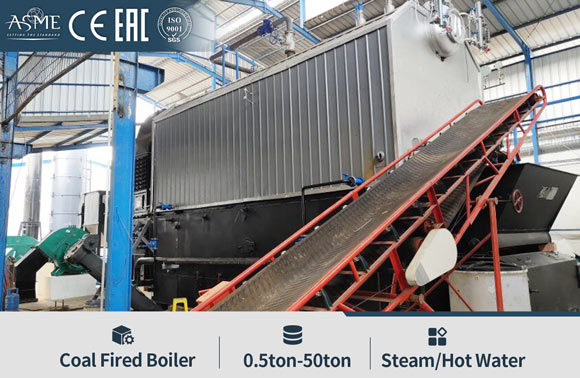

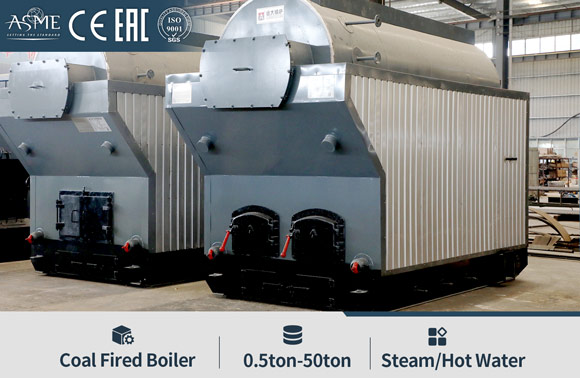

Coal Fired Boiler

#STEAM_BOILER #HOT_WATER_BOILER #THERMAL_OIL_BOILER

Certified by ASME, CE, ISO, EAC, DOSH, TUV, BV, ensuring high quality and compliance with international standards.

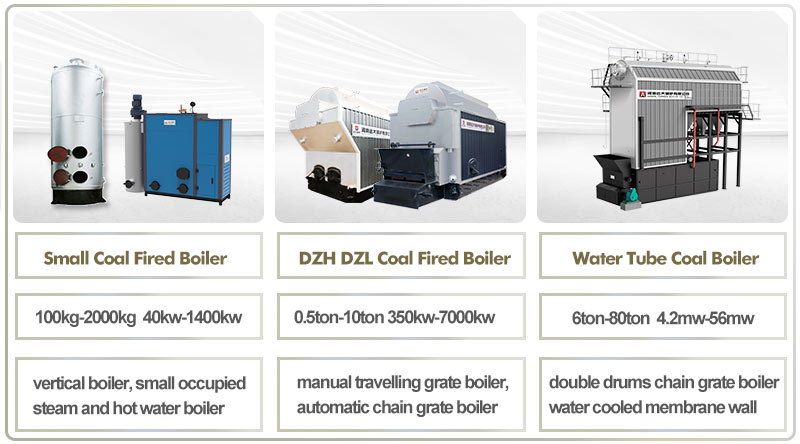

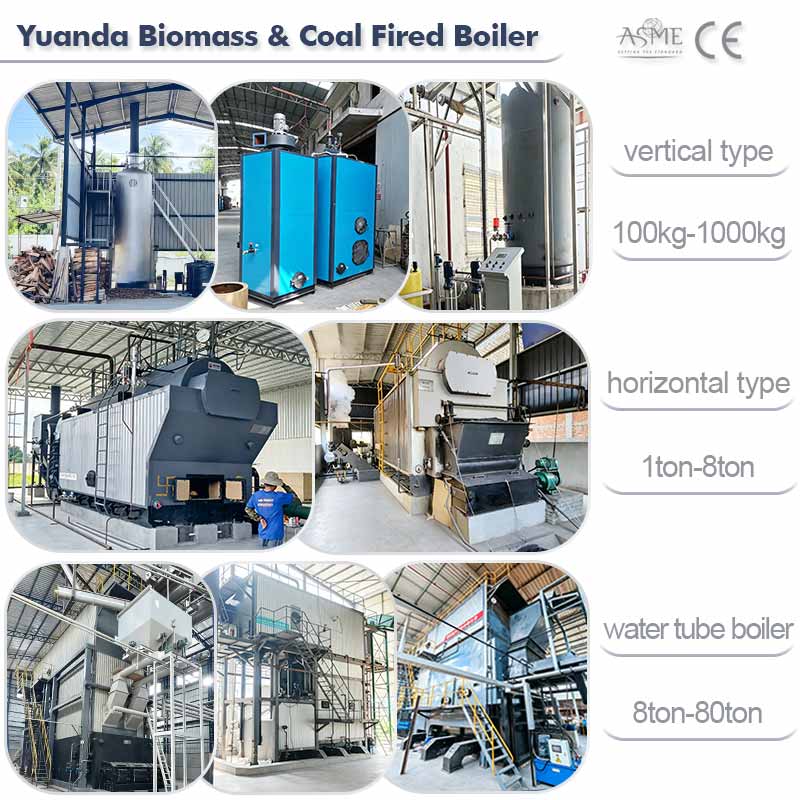

coal boiler,coal steam boiler,coal industrial boiler

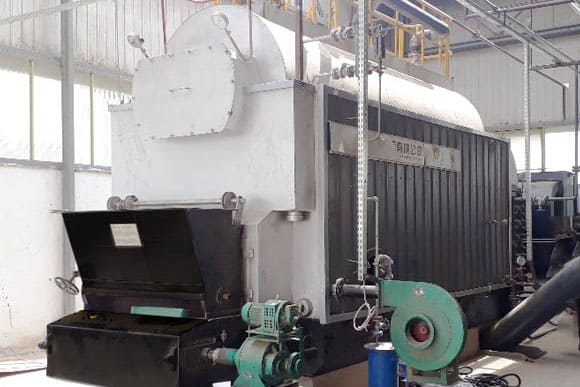

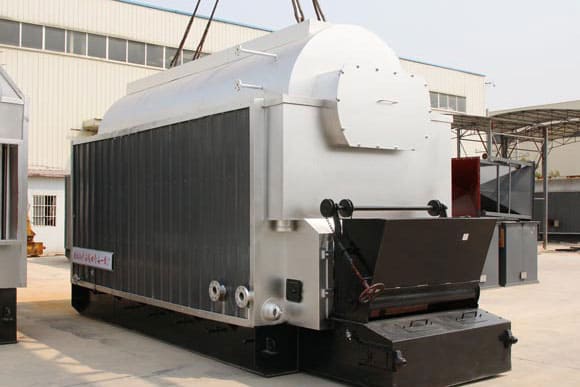

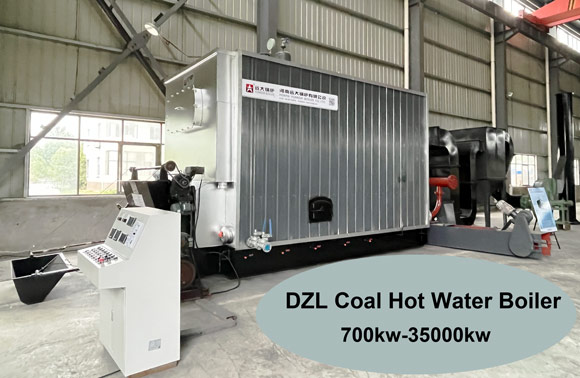

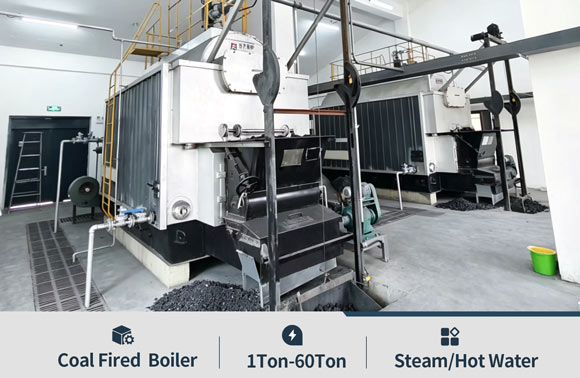

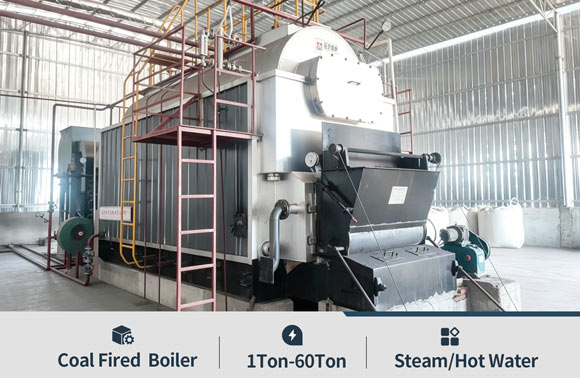

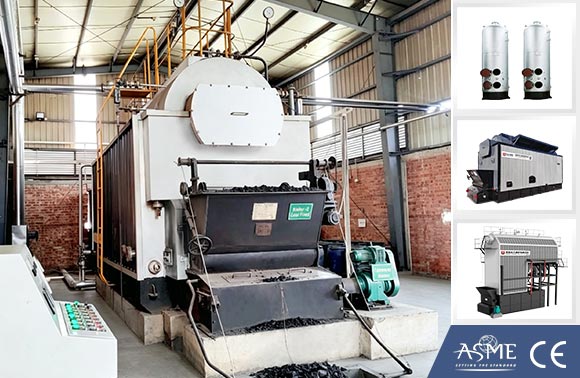

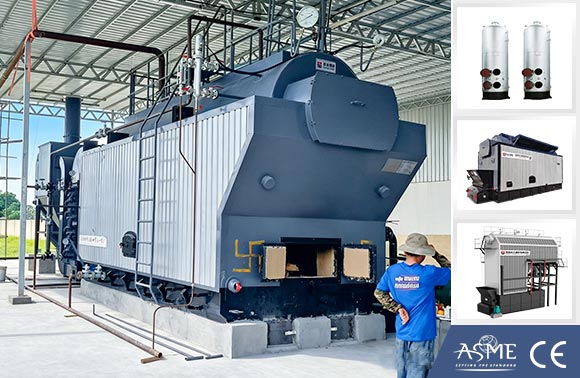

Popular model: DZL coal fired boiler automatical chain grate coal boiler

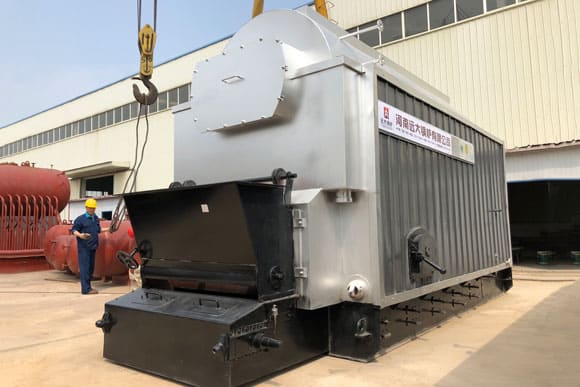

DZL automatic coal boiler, with chain grate combustion device, adopt automatic coal feeding system, inner fire-tube & water-tube structure, wing-shape flue and flue gas three pass design, higher thermal efficiency than traditional manual coal boiler.

dzl coal boiler,coal fired boiler,coal steam boiler

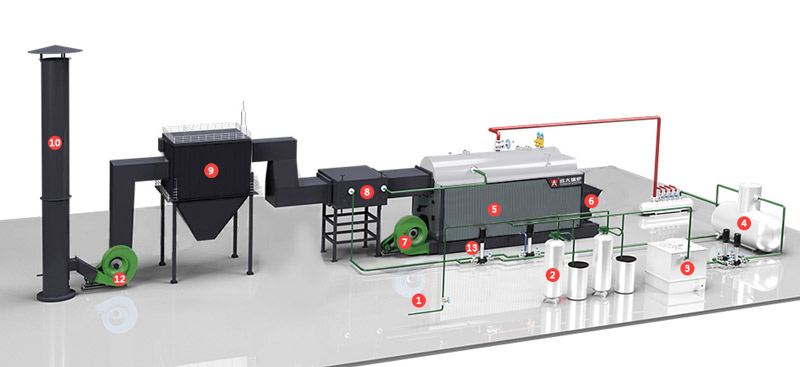

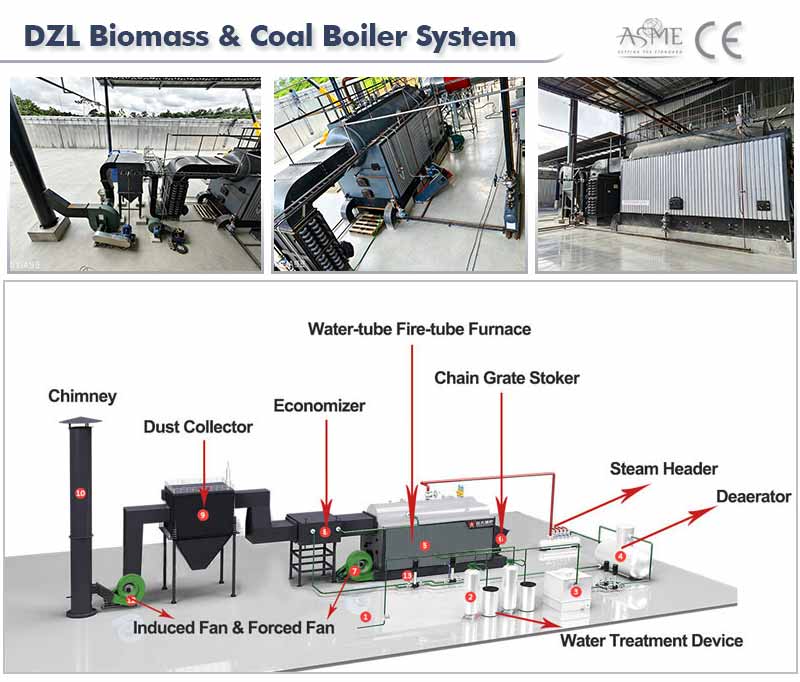

Coal Fired Boiler System

Complete boiler system need some other accessories for help boiler work successfully. Introduce some important accessories as following:

1. Water softener ②, Remove Mg+,Ca+ in the water and improve water quality, prevent hurt to boiler tube, entend the boiler using life time.

2. Economizer ⑧, use exhaust gas to heat inlet-water then reduce exhaust gas temperature, which improve boiler efficiency.

3. Dust collector ⑨, bag filter, Remove the dust and ash in exhaust gas to protect environment and reduce pollutions.

4. Forced fan & Induced fan ⑦, Blow clean air into the boiler and promote exhausted gas out, ensure the air circulation of the whole system.

dzl coal boiler,coal boiler system,automatic coal boiler

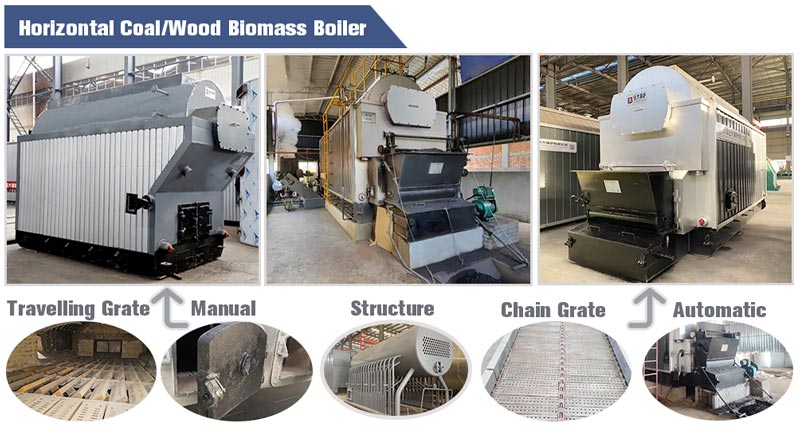

Compare Manual & Automatic Boiler

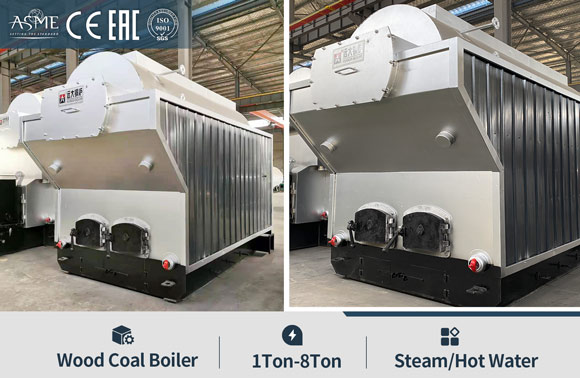

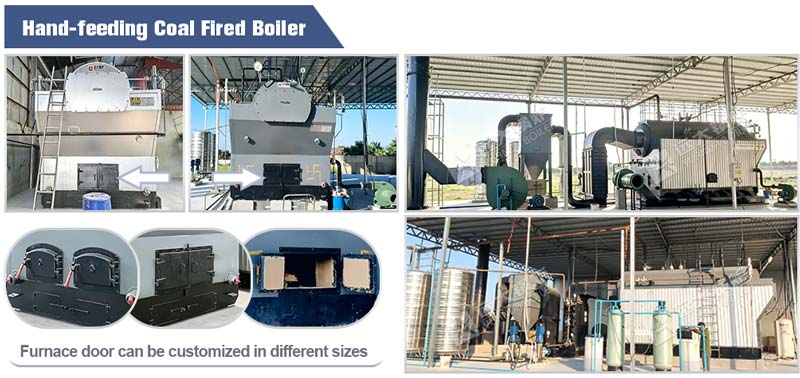

DZH series is kind of manual coal feeding boiler, DZL series is kind of automatic coal feeding boiler.

dzh coal boiler, dzl coal boiler,grate coal boiler

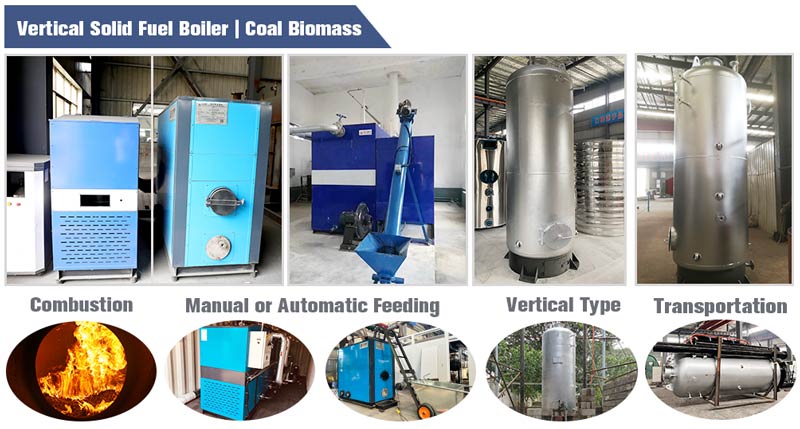

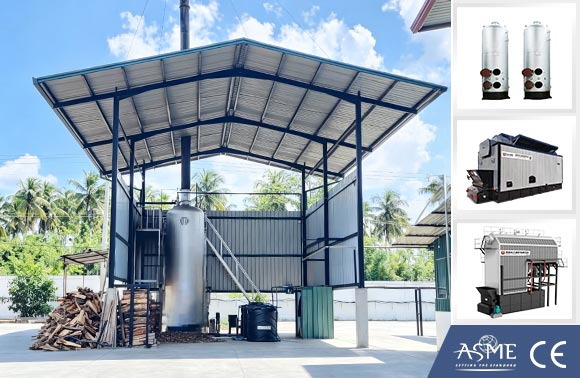

Related: Vertical Coal Boiler

vertical coal boiler,small coal boiler,vertical coal steam boiler

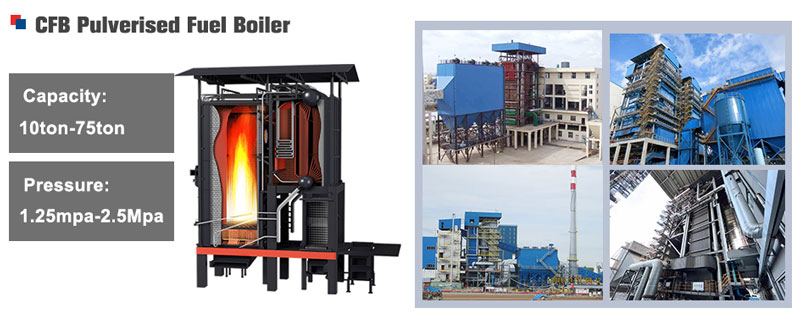

Related: CFB Pulverised Coal Boiler

10ton-75ton CFB pulverised coal boiler, Circulating fluidized bed combustion technology, is kind of new and mature coal combustion clean technology, with high-efficiency, low-pollution.

pulverised coal boiler,pulverised fuel boiler,CFB coal boiler

> How to Choose A Suitable Boiler

1. Boiler Information Confirming

Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.

Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)

Heat medium options: saturated/superheated steam, hot water, thermal oil.

Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler

Layout options: Vertical boiler, Horizontal boiler.

Operating-mode options: Automatic, manual

Note: please feel free to send all requirements, we could help you better.

2. Boiler Accessories (essential or optional)

Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.

yuanda boiler,china boiler supplier,industrial boiler supplier

Technical Parameter

DZ Series Steam Boiler Technical Parameter Table
Model Rated capacity(t/h) Rated pressure (Mpa) Rated steam temperature(℃) feed temperature(℃) Thermal efficiency(%) Boiler water volume(m³) Exhaust temperation(℃) Fuel comsumption(Kg/h) max transportation weigh(t)
DZH1 1 1.0/1.25/1.6 184/194/204 20/104 >82 3.15 127.25 192.32 9
DZL1 1 1.0/1.25/1.6 184/194/204 20/104 >82 3.15 113.34 190.42 13.5
DZH2 2 1.0/1.25/1.6 184/194/204 20/104 >82 4.75 126.41 386.47 15
DZL2 2 1.0/1.25/1.6 184/194/204 20/104 >82 4.77 106.34 393.77 22
DZH4 4 1.0/1.25/1.6 184/194/204 20/104 >82 7.7 137.25 782.29 18.5
DZL4 4 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >82 8.2 124.49 756.89 27.6
DZH6 6 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >82 7.4 146.83 1169.57 25
DZL6 6 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >82 8.1 137.29 1148.68 35
DZL8 8 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >82 9.6 141.06 1602.44 38
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Our Supply Equipment List

Coal Feeder
Grate Speed Reducer
Slag Remover
Water Treatment Device
Water Pumps
Water Tank
Deaerator
Economizer
Forced/Induced Fan
Smoke Clean Equipment
Chimney
......

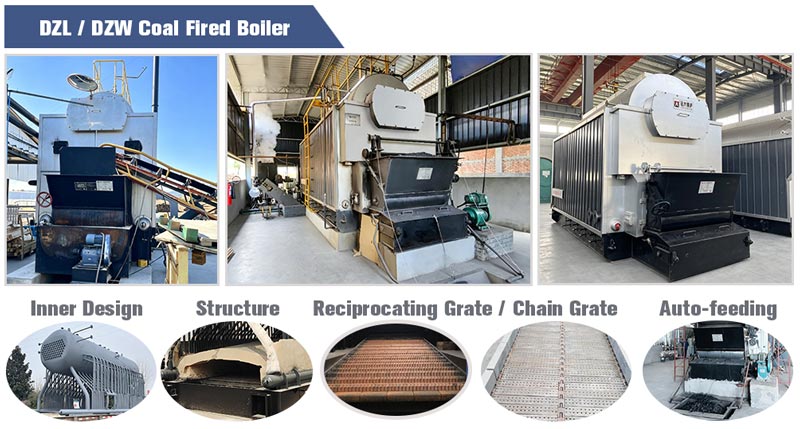

Advantage of DZL Boiler

DZL boiler chain grate,coal boiler chain grate

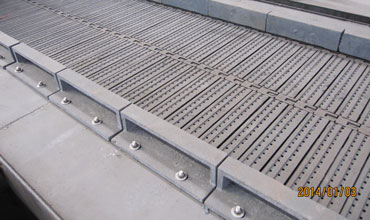

Chain grate/Reciprocating grate

Auto-feeding type burning system, avoid problem of air leakage, fuel leakage and uneven ventilation. Easier operation compared to traditional grate.
fire tube water tube boiler,dzl coal boiler

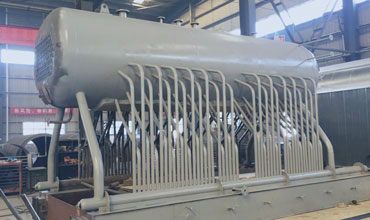

Fire tubes & Wing shape structure

Strengthening heat transfer, eliminating welding stress, enhance heat transfer bility, reduce heat stress of pipeline seam, prevent pipeline cracking.
coal boiler accessories,boiler auxiliary

Security guaranteed & Automation

With a set of alarm,protection and security guaranteed, 100% safety. Control cabinet use siemens elements, trustable quality & control strictly
coal boiler economizer,boiler economizer

Economizer & Dust collector device

Reuse waste heat in exhaust gas, energy saving devide (economizer); Remove the dust and ash, protect envrionment and reduce pollution

FAQ of Coal Boiler

Question: Can it burn coal and wood waste together?

Answer: Yes, it can burn coal, wood waste. Besides, burn biomass, bagasse, palm shells, coconuts, husk...

Question: Do you have DZG boiler?

Answer: Yes, "DZG" mean fix grate boiler, the biggest difference with "DZL" is combustion grate device. DZL is automatic chain grate boiler, DZG is manual type fixed grate boiler. If you interest more, send message on website.

Question: How we install the boiler after buy it?

Answer: Sir, we supply whole life service for boiler, before-sale service & on-sale service & after-sale service. We have professional service team for installation and boiler commissioning and training workers.

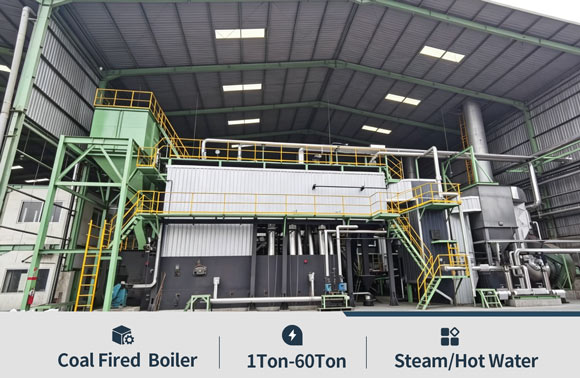

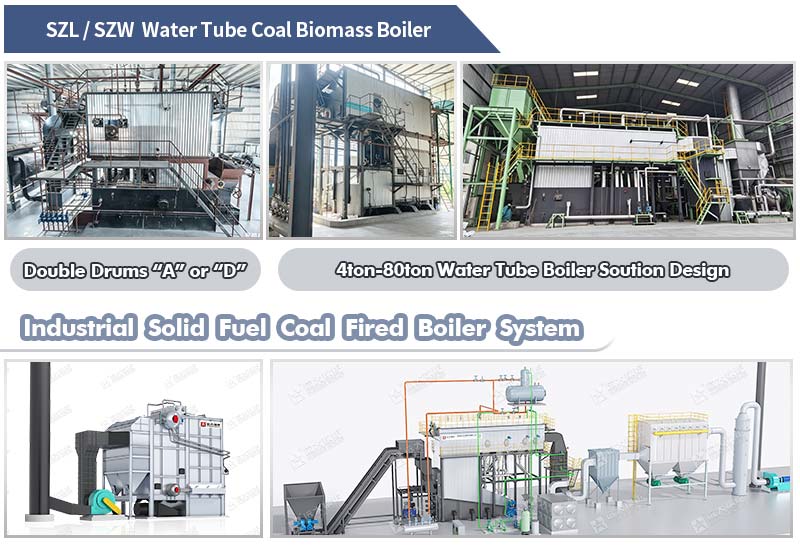

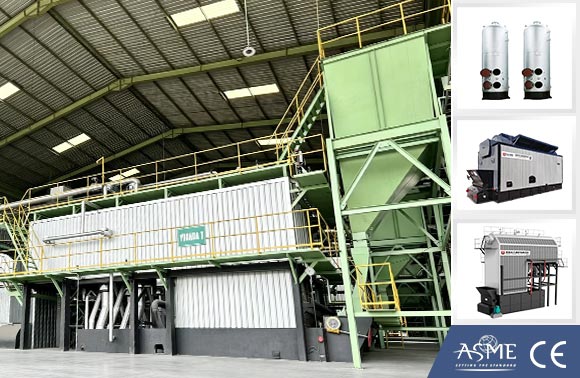

Question: Do you have SZL double drums coal water tube boiler?

Answer: Yes, SZL series coal fired water tube boiler, suitable in capacity 10ton-50ton, if you have interest, send message to service@yuanda-boiler.com
